WAGNER PEM-X1 CG - Replacing Connecting Tube and Collector Nozzle

Operating manual Powder Cup Gun PEM-X1 CG
12 Accessories
Order number 2326960 | Edition 10/2022 49

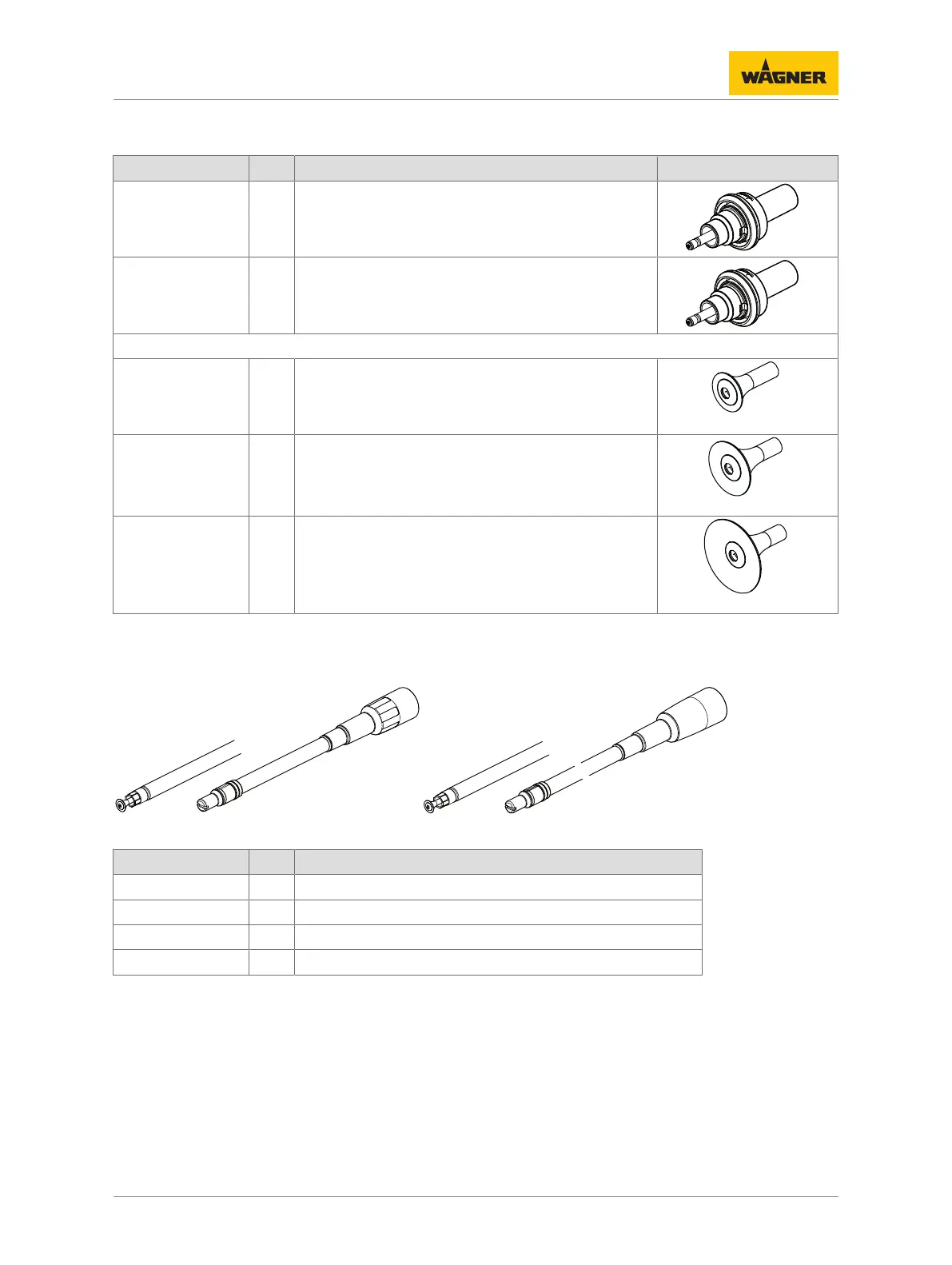

12.1.3 X1 R Round Jet Nozzles System
Order no. K Designation
2322490
♦
X1 electrode holder, X1 R ET (yellow)
P_01692
2322493
♦
Electrode holder, X1 R (yellow) + nozzles
P_01692
Can be combined with:
2321981 ♦ Deflector cone, D18, complete
P_01665
2321980 ♦ Deflector cone, D25, complete
P_01666
2321171 ♦ Deflector cone, D34, complete
P_01667
♦ = Wearing parts
12.1.4 Nozzle extension
P_01697
P_02163
X1 VL Nozzle Extension - 150/300/500 X1 VL Nozzle Extension - 750
Order no. K Designation
2323366 Nozzle extension, X1 VL 150 (150 mm; 5.91 inches)
2323356 Nozzle extension, X1 VL 300 (300 mm; 11.81 inches)
2323338 Nozzle extension, X1 VL 500 (500 mm; 19.68 inches)
2330497 Nozzle extension, X1 VL 750 (750 mm; 29.53 inches)
Note:
The nozzle extensions include the flat jet nozzles system!
To use with the round jet nozzles system, see chapter Round Jet Nozzles System [850].
