Operating manual Powder Cup Gun PEM-X1 CG
13 Spare Parts
58 Order number 2326960 | Edition 10/2022
Pos K Stk Order no. Designation
7 1 2316896 Screw
8 1 2324135 Connecting tube, ET
9 1 2324133 Collector nozzle, ET
10 1 2324132 Connecting part, ET
11 ♦ 1 9971313 O-ring
12 1 9906023 Screw
13 1 2324205 Wedge tool, X1
1 2324223 Non-return valve, complete
● 1 2343544 Hose kit, PEM-X1 CG ET
♦
= Wearing parts
● =Available as an accessory, not included in the scope of delivery

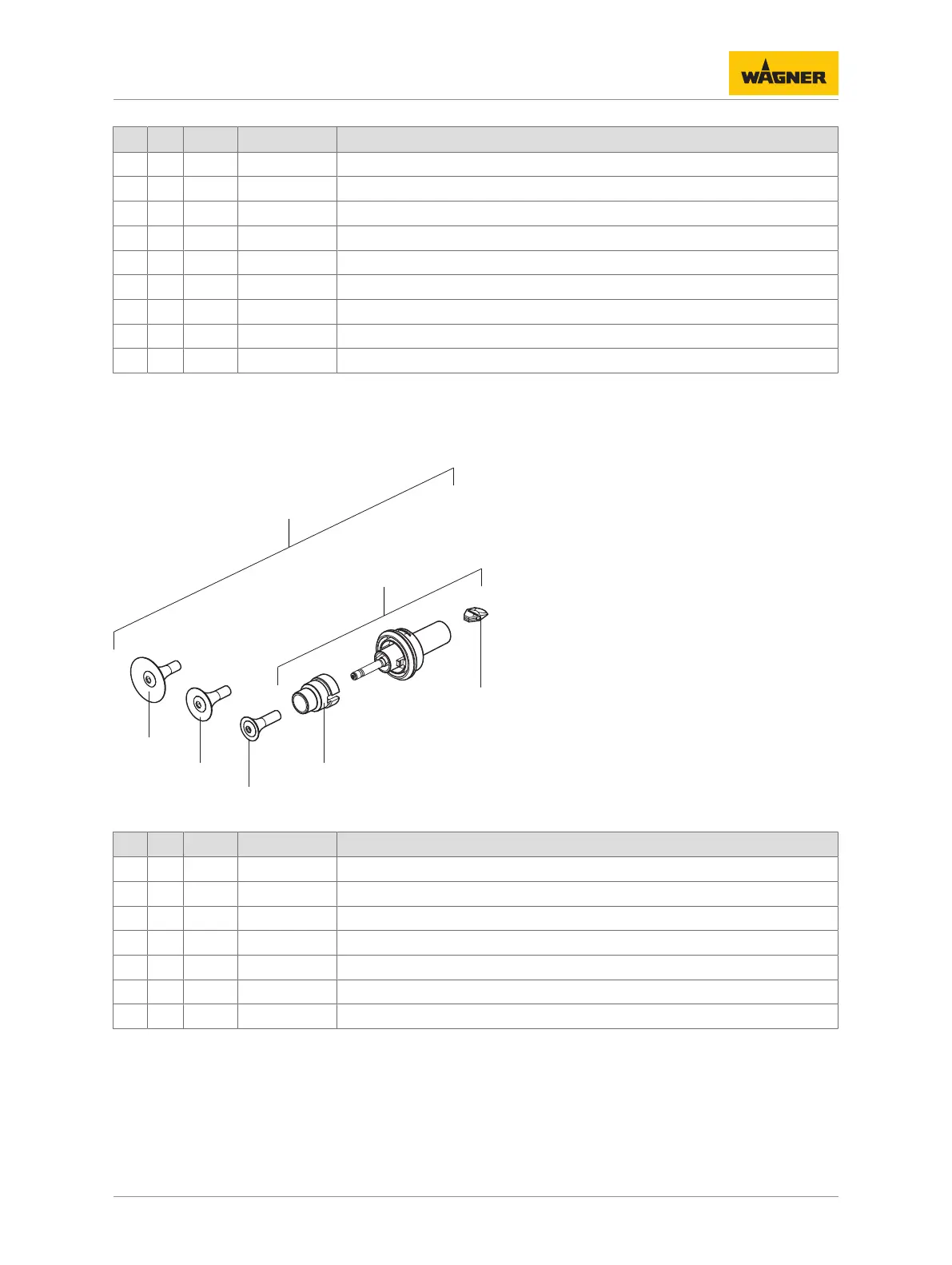

13.4 X1 R ELECTRODE HOLDER
4
3
5
6
7
P_01700
2
1
Pos K Stk Order no. Designation
1 ♦ 1 2322493 Electrode holder, X1 R, with nozzle
2 ♦ 1 2322490 Electrode holder, X1 R ET
3 ♦ 1 2429695 X1 replacement protective wedge
4 ♦ 1 2320503 Deflector cone sleeve, X1
5 ♦ 1 2321981 Deflector cone, D18, complete
6 ♦ 1 2321980 Deflector cone, D25, complete
7 ♦ 1 2321171 Deflector cone, D34, complete
♦
= Wearing parts
