WAGNER PEM-X1 CG - Replacing the Suspension Hook; Replacing the Collector Nozzle

Operating manual Powder Cup Gun PEM-X1 CG
8 Cleaning and Maintenance
Order number 2326960 | Edition 10/2022 41

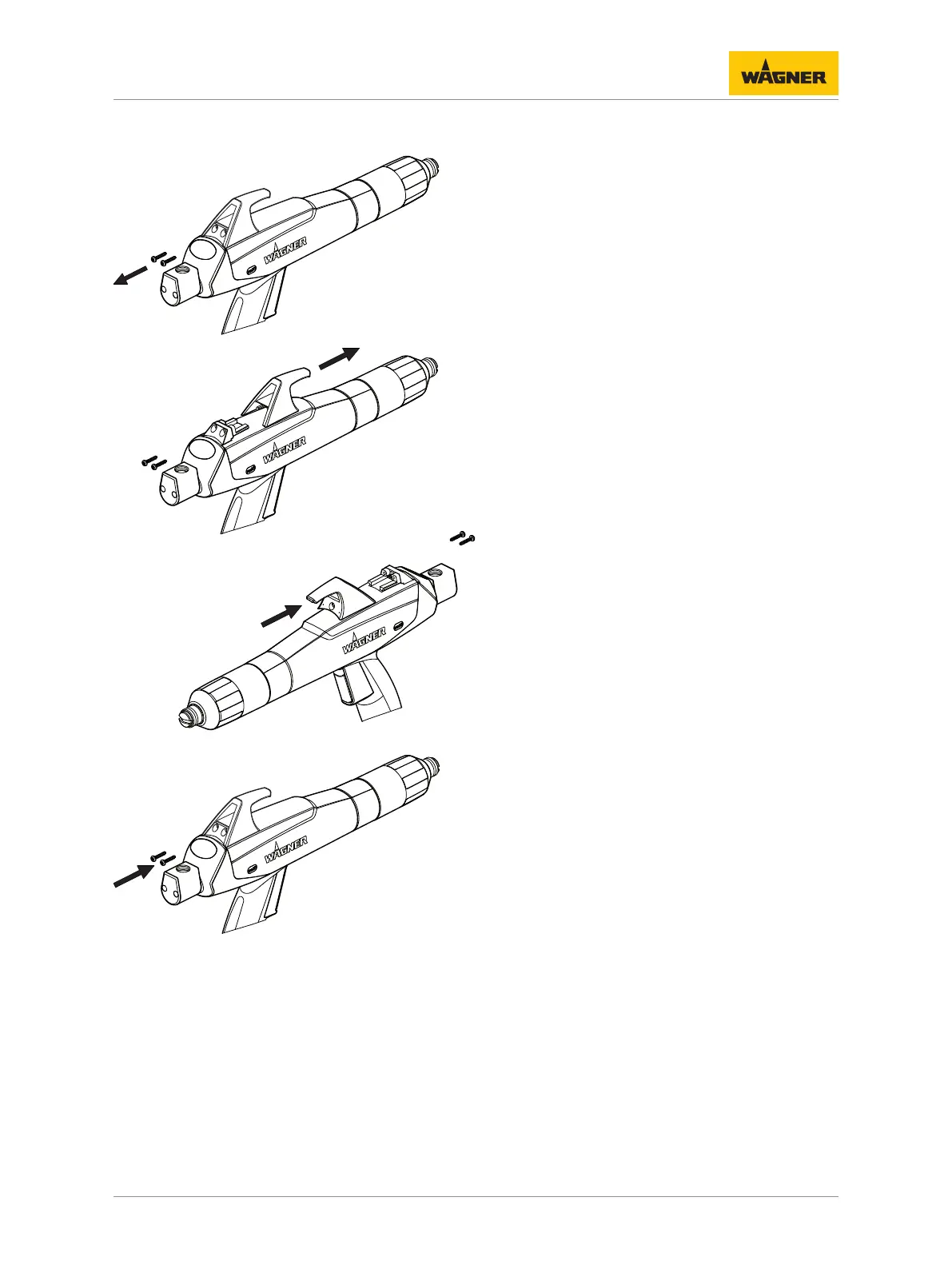

8.9 REPLACING THE SUSPENSION HOOK
P_01734
1.
2.
3.
4.
1. Loosen fastening screws on rear of hook and unscrew.
2. Slide hook in direction indicated by arrow and remove from gun housing.
3. Fit new hook on receiver and slide in direction indicated by arrow.
4. Fit fastening screws and tighten.
8.10 REPLACING THE COLLECTOR NOZZLE
The collector nozzle can be replaced if worn (for order number, see Connecting Tube,
Collector Nozzle [859]).
