57
appendix
PS 3.29 / 3.31
12 APPENDIX
12.1
SELECTION OF TIP
To achieve faultless and rational working, the selection of the
tip is of the greatest importance.
In many cases the correct tip can only be determined by means
of a spraying test.
SOME RULES FOR THIS:
The spray jet must be even.
If streaks appear in the spray jet the spraying pressure is either
too low or the viscosity of the coating material to high.
REMEDY: Increase pressure or dilute coating material. Each
pump conveys a certain quantity in proportion to the size of
the tip:
The following principle is valid: large tip = low pressure
small tip = high pressure
There is a large range of tips with various spraying angles.
12.2 SERVICING AND CLEANING OF AIRLESS
HARDMETAL TIPS
STANDARD TIPS
If a dierent tip type has been tted, then clean it according to
manufacturer’s instructions.
The tip has a bore processed with the greatest precision. Careful
handling is necessary to achieve long durability. Do not forget
the fact that the hard-metal insert is brittle! Never throw the tip
or handle with sharp metal objects.
The following points must be observed to keep the tip
clean and ready for use:
1. Turn the relief valve handle fully counterclockwise (k
Circulation).
2. Remove the tip from the spray gun.
3. Place tip in an appropriate cleaning agent until all coating
material residue is dissolved.
4. If there is high-pressure air available, blow out tip.
5. Remove any residue by means of a sharp wooden rod
(toothpick).
6. Check the tip with the help of a magnifying glass and, if
necessary, repeat points 3 to 5.

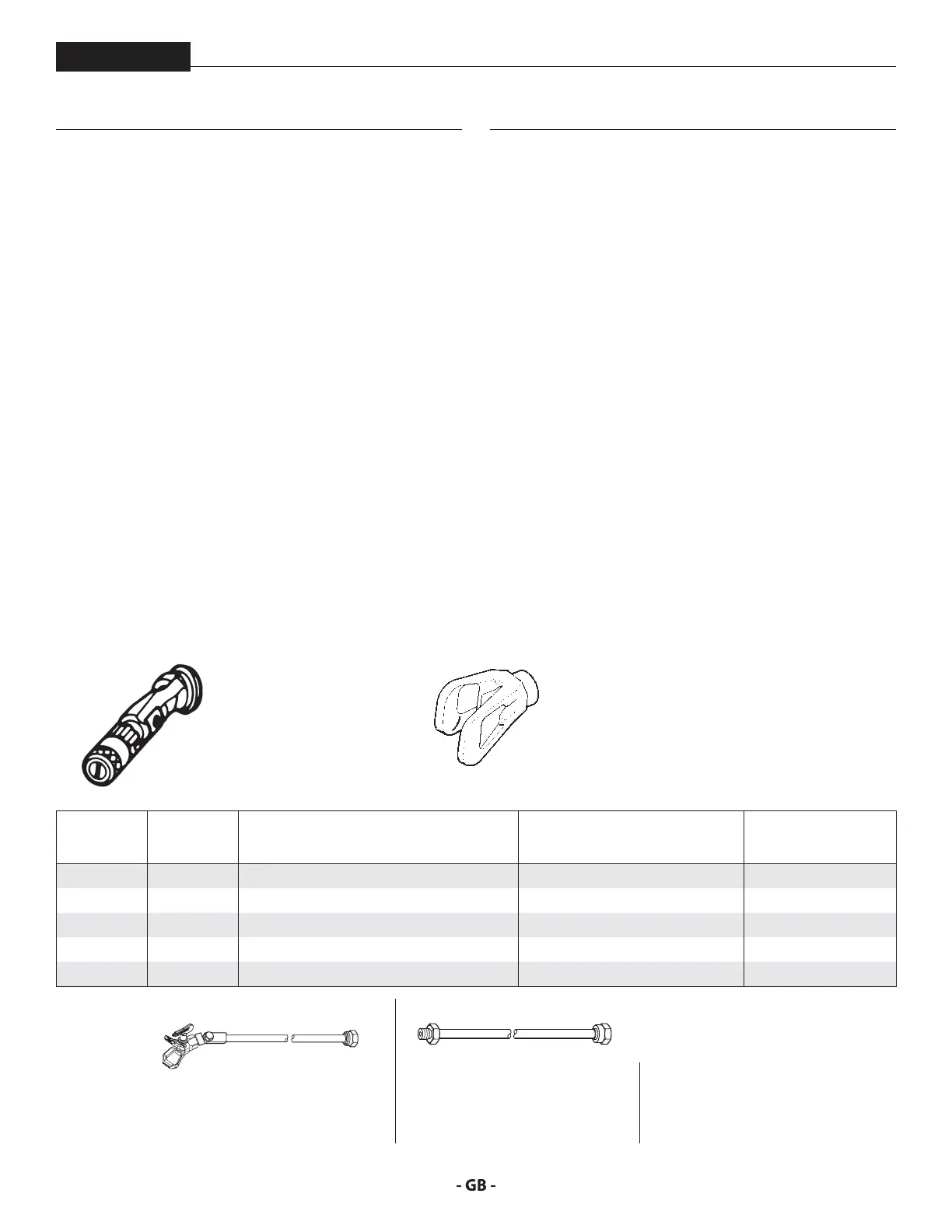

12.3 SPRAY GUN ACCESSORIES
Flat jet adjusting tip
up to 250 bar (25 MPa
Contact protection
for the at jet
adjustment tip
Order No. 0097 294
Tip extension with slewable knee joint
(without tip)
Tip extension
15 cm, F-thread, Order no. 0556 051 15 cm, G-thread, Order no. 0556 074
30 cm, F-thread, Order no. 0556 052 30 cm, G-thread, Order no. 0556 075
45 cm, F-thread, Order no. 0556 053 45 cm, G-thread, Order no. 0556 076
60 cm, F-thread, Order no. 0556 054 60 cm, G-thread, Order no. 0556 077
Tip marking Bore mm
Spray width at about 30 cm removal of
spray object
Pressure 100 bar (10 MPa)
Use
Flat jet adjusting tip
Order No.
15 0.13 - 0.465 - 35 cmPaints0999 057
200.18 - 0.485 - 50 cmPaints, llers0999 053
280.28 - 0.668 - 55 cmPaints, dispersions0999 054
410.43 - 0.8810 - 60 cmRust protection paints - dispersions0999 055
490.53 - 1.3710 - 40 cmLarge-area coats0999 056
Length: 100 cmOrder no. 0096 015
Length: 200 cmOrder no. 0096 016
Length: 300 cmOrder no. 0096 017
