6 Assembly and Commissioning
26 Order number 2354920 | Edition 01/2023
2
1
P_02643
25Nm;
18.44lb ft
3

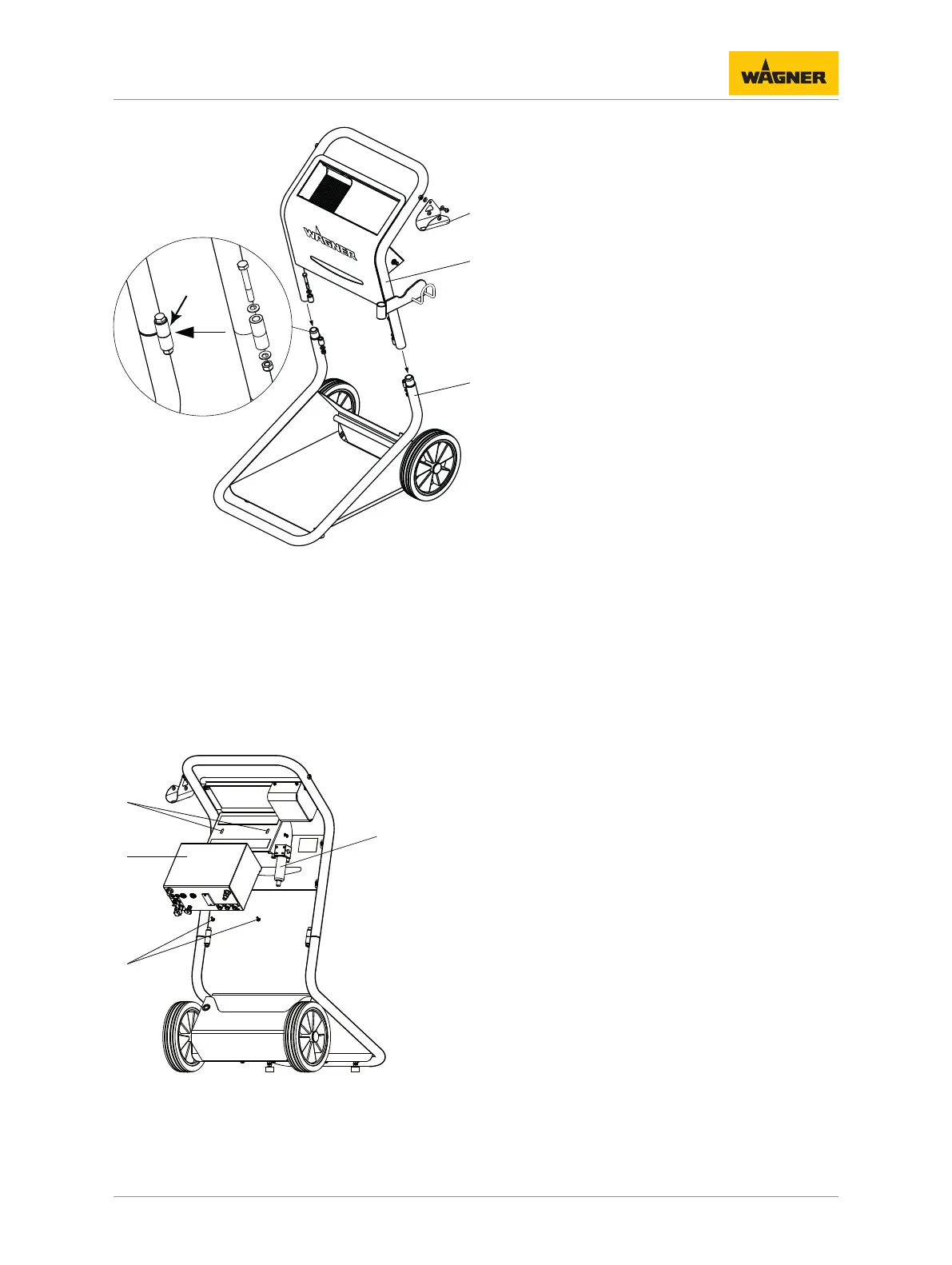

1. Open transport packaging with care and carefully take all individual parts out of
packaging.
2. Place lower trolley section(1) on a clean, level surface.
3. Place upper trolley section(2) on the two guide sleeves on the lower trolley section(1),
press down gently until stop is reached and use nuts and bolts (see detail) to screw to
lower trolley section (tightening torque 25Nm; 18.44lbft).
4. Mount the gun holder(3) (see separate assembly manual).
6.4.2 Assembling the control unit
1
2
3
P_02644
4
4 Carefully take control unit (1) out of packaging and use the supplied screws (2) to screw
into the holes drilled in the angle bracket (3).
ð Control unit is flush with the cover at the front.
