WAGNER SPRINT XE Translation Of The Original Operating Manual

Operating manual Manual Powder System SPRINT XE
6 Assembly and Commissioning
28 Order number 2354920 | Edition 01/2023

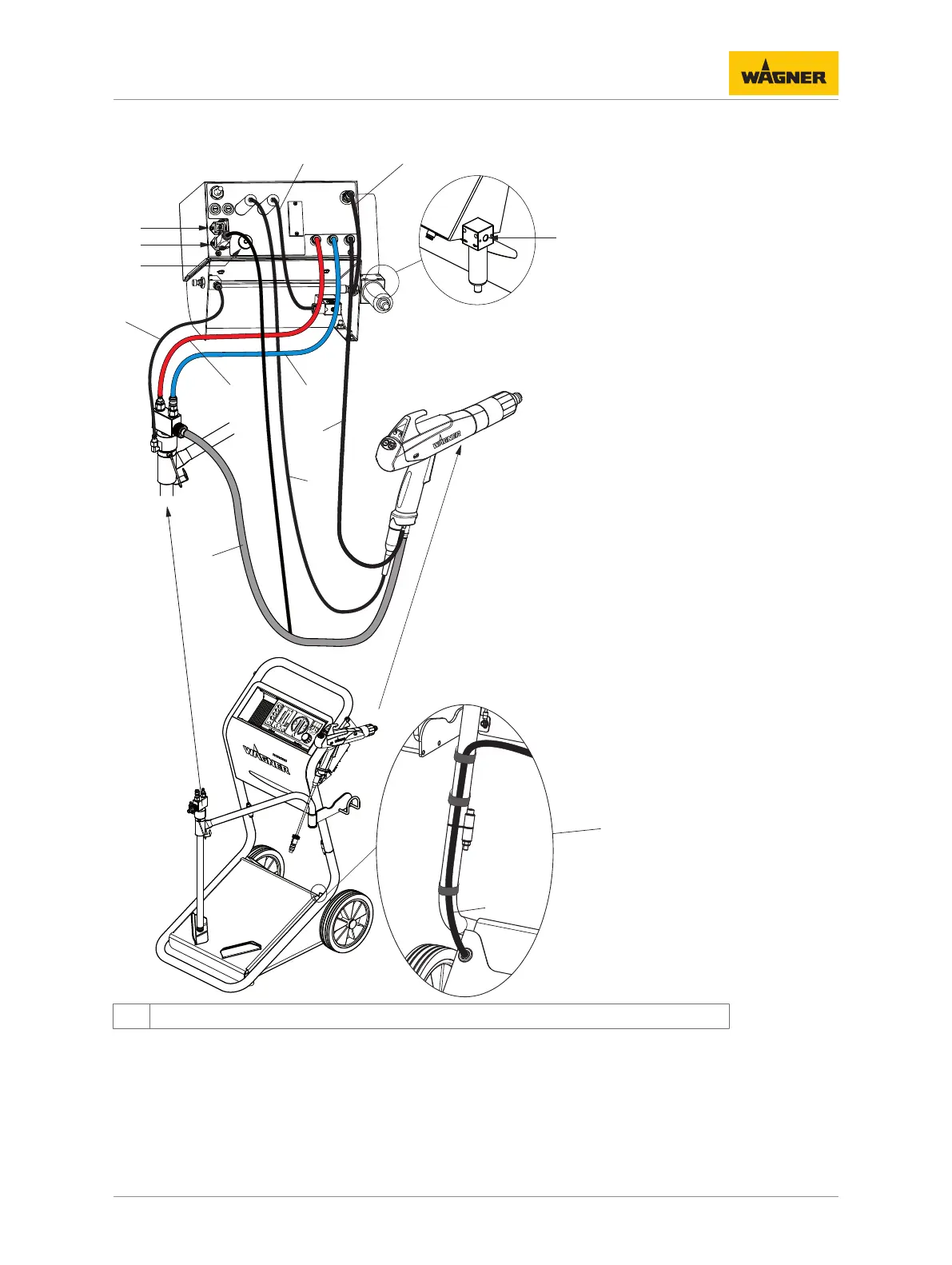

6.5.2 Connecting the Airfluid manual system
11.
P_02639
1.
3.
4.
5.
2.
6.
7.
10.
12.
9.
8.
11.
A
A Detail
1. Connect the hose (black) for mains pressure.
2. Plug in the control cable from the solenoid valve on the control unit.
3. Connect the dosing air hose (blue).
4. Connect the feed air hose (red).
5. Connect the fluid air hose (black). Bundle the three hoses with Velcro cable binders.
