WAGNER SPRINT XE

Operating manual Manual Powder System SPRINT XE
13 Spare Parts
68 Order number 2354920 | Edition 01/2023

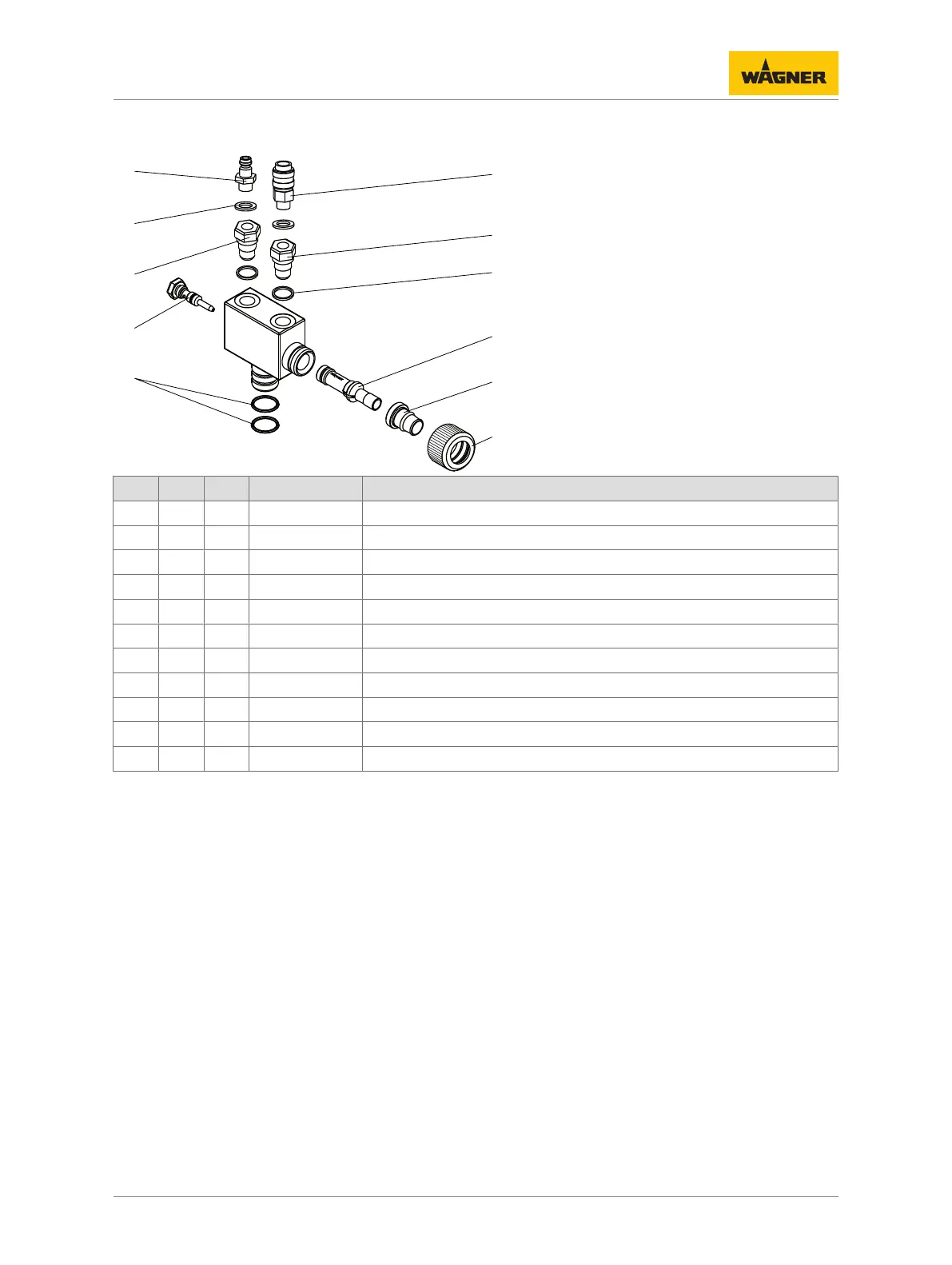

13.10 HICOAT-ED PUMP F
8
10
5
4
11
9
5
7
1
2
3
P_00889
Pos K Stk Order no. Designation
241624 HiCoat-ED pump F
1 ♦ 1 241229 Collector nozzle, low air
2 1 241479 Hose sleeve
3 1 241466 Union nut
4 ♦ 1 241930 Air nozzle
5 2 241460 Spring check valve
7 ♦ 1 9970149 Sealing ring
8 1 9992709 Quick-release plug
9 1 9992710 Quick-release socket
10 ♦ 1 9970150 Sealing ring
11 ♦ 2 9974023 O-ring, electrically conductive
♦ = wearing parts
