WAGNER SPRINT XE Translation Of The Original Operating Manual

Operating manual Manual Powder System SPRINT XE
8 Cleaning and Maintenance
Order number 2354920 | Edition 01/2023 47

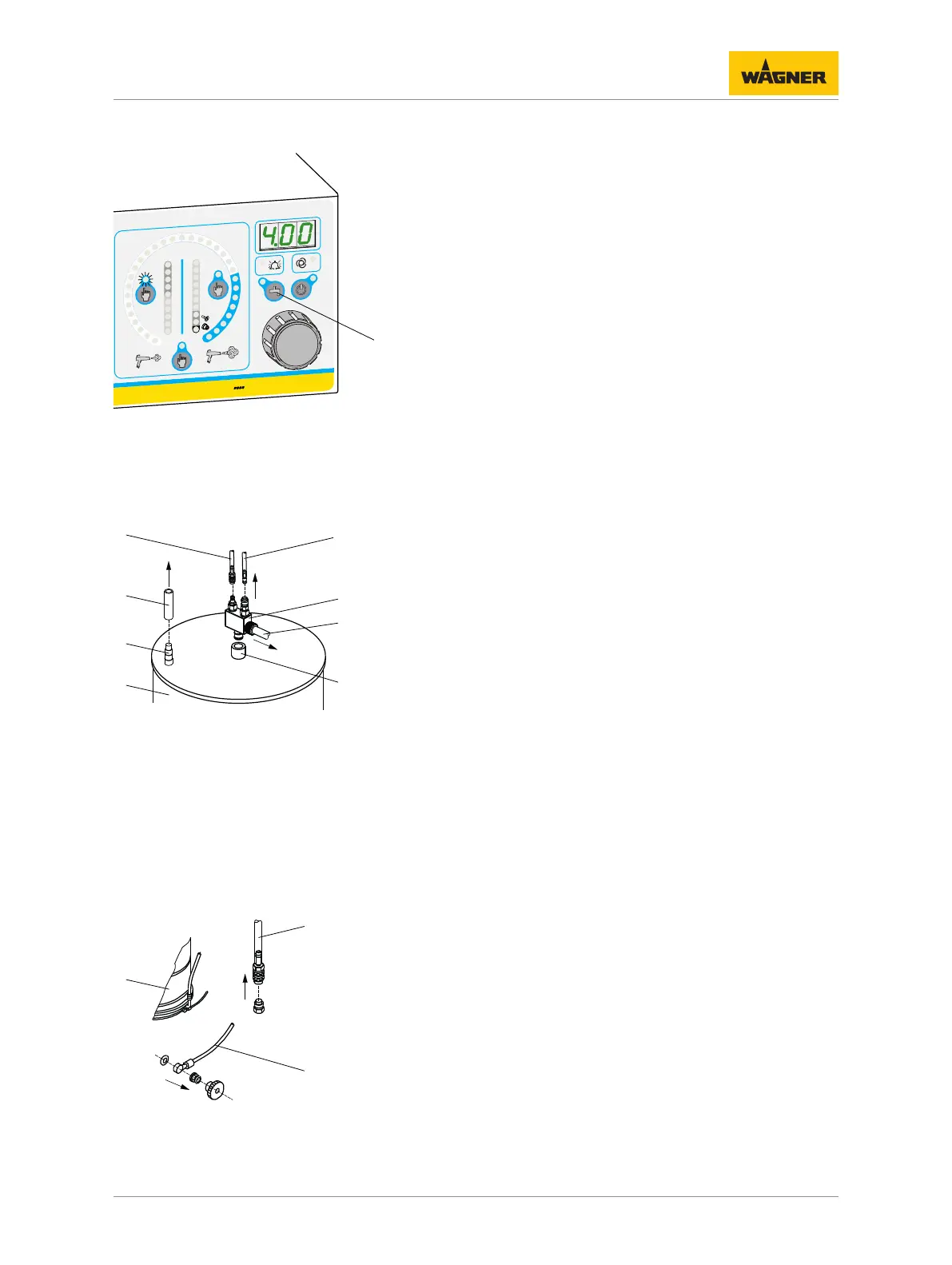

2. Remove powder injector(1) from holder(2).
P_05051
EPG
SPRINT X
0
%
10
20
30
40
50
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
80
100
%
Tri
90
60
70
17
3. Hold the gun in the spray booth and start the flush function by pressing the
[Flush]button(17).
ð The injector and hoses are flushed.
4. Switch off control unit.
6
5
2
4
P_01140
7
1
3
8
5. Remove the union nut on powder feed hose(3) and disconnect powder feed hose(3)
from injector(1).
6. Disconnect the red feed air hose(4) from injector(1).
7. Disconnect the blue dosing air hose(5) from the injector(1).
8. Check powder injector for wear and replace worn parts if necessary. The wearing and
spare parts can be found in the powder injector's operating manual.
9. Loosen the exhaust air hose(6) from the connection(7) of the powder tank(8).
8
9
10
P_01141
10. Pull the black fluid air hose(9) off the powder tank(8).
11. Loosen the grounding cable(10) from the powder tank(8).
12. Lift the powder tank off of the equipment trolley for cleaning.
