Super Finish 23 PLUS
GB
STARTUP
4.6 CLEANING PRESERVING AGENT WHEN
STARTINGUP OF OPERATION INITIALLY
Unit with suction tube
1. Immerse the suction system into a container lled with a
suitable cleaning agent (recommendation: water).
Unit with hopper
2. Fill up hopper with a suitable cleaning agent (recommen-
dation: water).

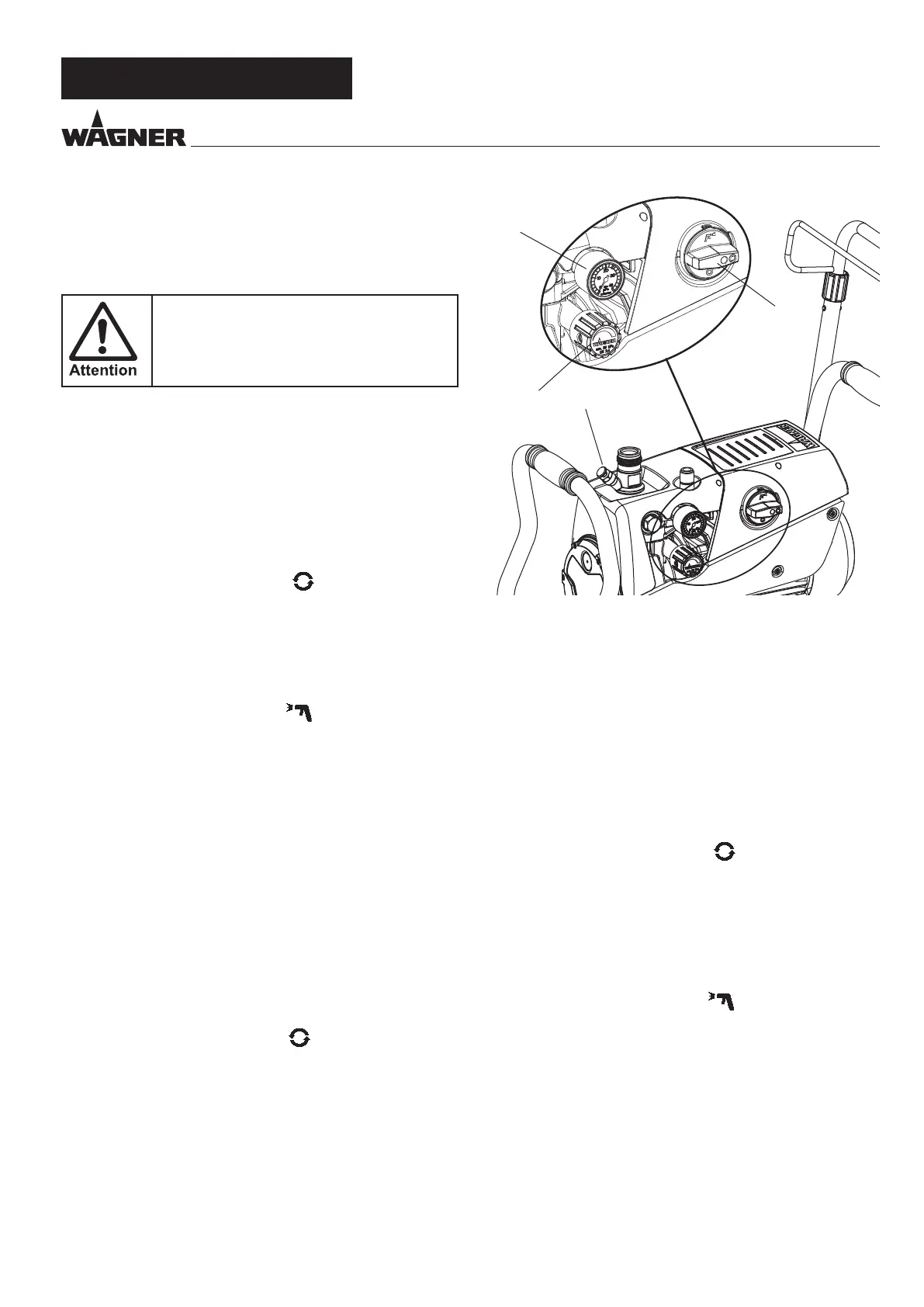

3. Set multifunction switch (1) to (ON– circulation); the
unit commences to run.
4. Turn the pressure regulating knob (2) to the right until
the stop is reached.
5. Wait until cleaning agent is emitted from the return hose.
6. Turn the pressure regulating knob (2) back approx. one
rotation.
7. Set multifunction switch (1) to (spray).
Pressure is rising up inside the high pressure hose (visible
at pressure gauge)
8. Point the tip of the spray gun into an open collecting con-
tainer and pull the trigger guard at the spray gun.
9. The pressure is increased by turning the pressure regulat-
ing knob (2) to the right. Set approx. 10 MPa (100 bar) at
the pressure gauge.
10. Spray the cleaning agent out of the unit for approx.
1 - 2 min. (~5 litres) into the open collecting container.
4.8 TAKING THE UNIT INTO OPERATION WITH
COATING MATERIAL
Unit with suction tube
1. Immerse the suction system into a container lled with
coating material.
Unit with hopper
2. Fill coating material into the hopper.
3. Press inlet valve pusher (4) several times to release pos-
sibly clogged inlet valve
4. Set multifunction switch (1) to (ON - circulation); the
unit will start.
5. Turn the pressure regulating knob (2) to the right until
the stop is reached.
When the noise of the valves changes, the unit is bled and
takes in coating material.
6. If coating material exits from the return hose, turn the
pressure regulating knob (2) back approx. 1 rotation.
7. Set multifunction switch (1) to (spray).
Pressure is rising up inside the high pressure hose (visible
at pressure gauge (3)).
8. Pull of the spray gun and spray into an open collecting
container in order to remove the remaining cleaning
agent from the unit. When coating materials exits from
the tip, close the spray gun.
9. Adjust the spraying pressure by turning the pressure reg-
ulating knob (2).
10. The unit is ready to spray.
4.7 VENTILATE UNIT HYDRAULIC SYSTEM IF THE
SOUND OF INLET VALVE IS NOT AUDIBLE
1. Switch on the unit.
2. Turn pressure regulating knob (2) three revolutions to
the left.
3. Set multifunction switch (1) to (ON – circulation). The
hydraulic system is ventilated. Leave the unit on for two to
three minutes.
4. Then turn pressure regulating knob (2) to the right until
stop.
5. Press inlet valve pusher (4).
Sound of the inlet valve is audible.
6. If not, repeat points 2 and 4
1
2
3
4
4.5 SOCKET ON UNIT
NOT INCLUDED IN ALL MODELS
It is possible, for example, to connect an agitator, a working
lamp etc with a maximum of 1500 Watt.
Always switch on the Super Finish 23 PLUS
unit rst and then the connected unit. Oth-
erwise the fuse protection of 16 A inside the
unit will react.
To Next Page
