DESCRIPTION OF UNIT
3.4 TRANSPORTATION
Unroll high-pressure hose and lay it over the shaft.
Loosen terminal sleeves (item 1) on the shaft ( open). Extract
shaft to the desired length. Tighten terminal sleeves again by
hand ( closed).
Transportation in vehicle
Secure the unit in the vehicle by means of suitable fasteners.
The device can be placed on its side if necessary. In this case,
please ensure that no attachments can be damaged. Atten-
tion: Paint or solvent residues can escape from the connec-
tions!
1
1
2
3
5
6
7
8
9
11
12

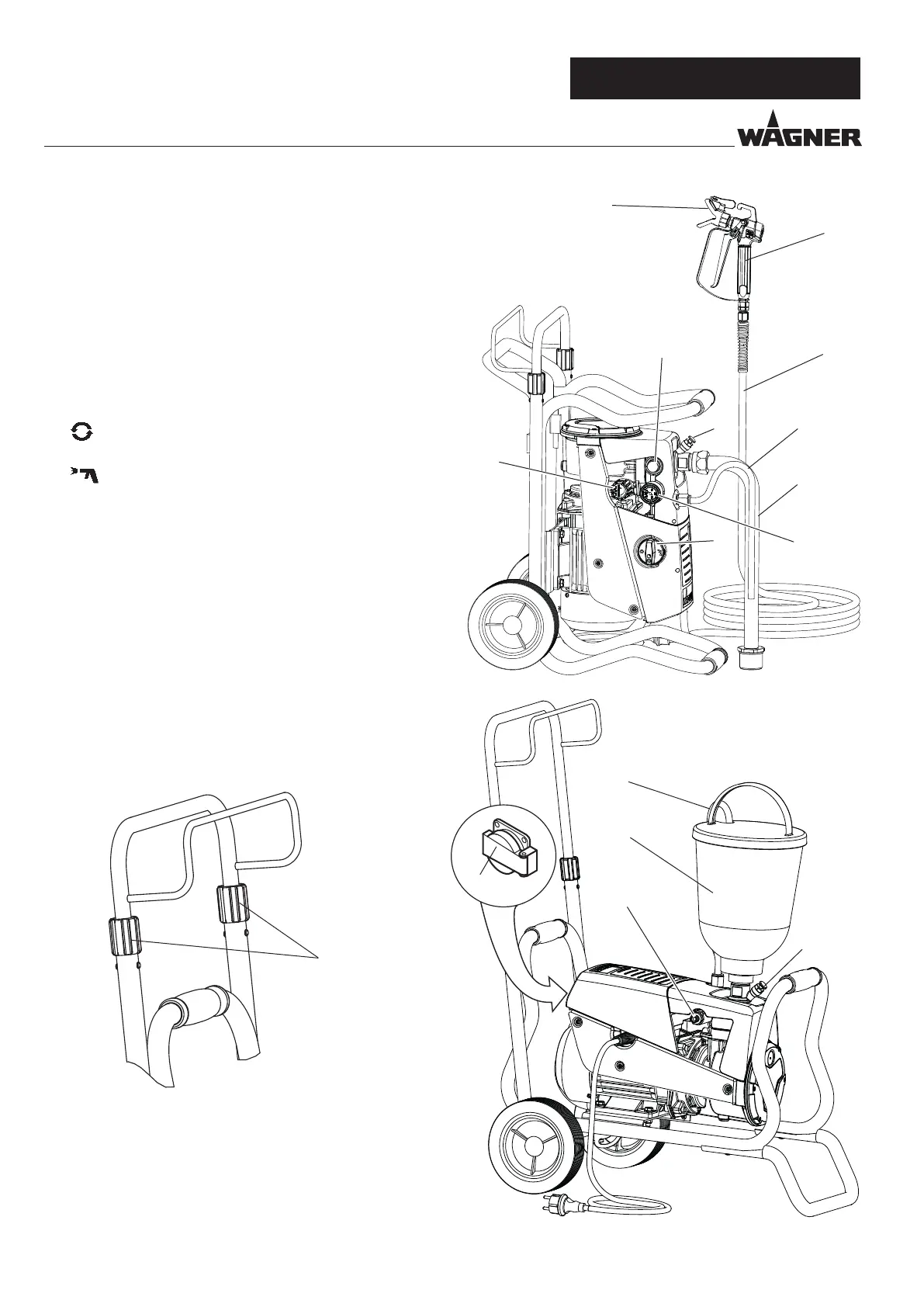

3.3 EXPLANATORY DIAGRAM
1 Tip guard with airless tip
2 Spray gun
3 High-pressure hose
4 Connection for high-pressure hose
5 Pressure gauge
6 Pressure control valve
7 Multifunction switch
Symbols (shown in the recess of the switch):
0 OFF
ON / Circulation
ON / Spraying
8 Return tube
9 Suction tube
10 Hopper
11 Inlet valve button
12 Outlet valve
13 Socket, max. load 1500 Watt
(not included in all models)
