Super Finish 23 PLUS
A SUPER FINISH 23 PLUS WITH SOCKET
CONTROLER BOARD
POWER CABLE
230V / 50Hz
TERMINAL STRIP
green/yellow
blue
light blue
brown
MOTOR
WITH TEMPERATURE SWITCH
M
1~
Z2
U2
red
POWER SOCKET
230V/50Hz max. 1500W
OPERATION CAPACITOR
C = 25µF
400V
black
MICRO SWITCH
brown
blue
black
155°C
COM
NC NO
N
L
green/yellow
green/yellow
blue
blue
black
Z1
U1
red
yellow
light blue
blue
black
green/yellow
GB
REPAIRS AT THE UNIT

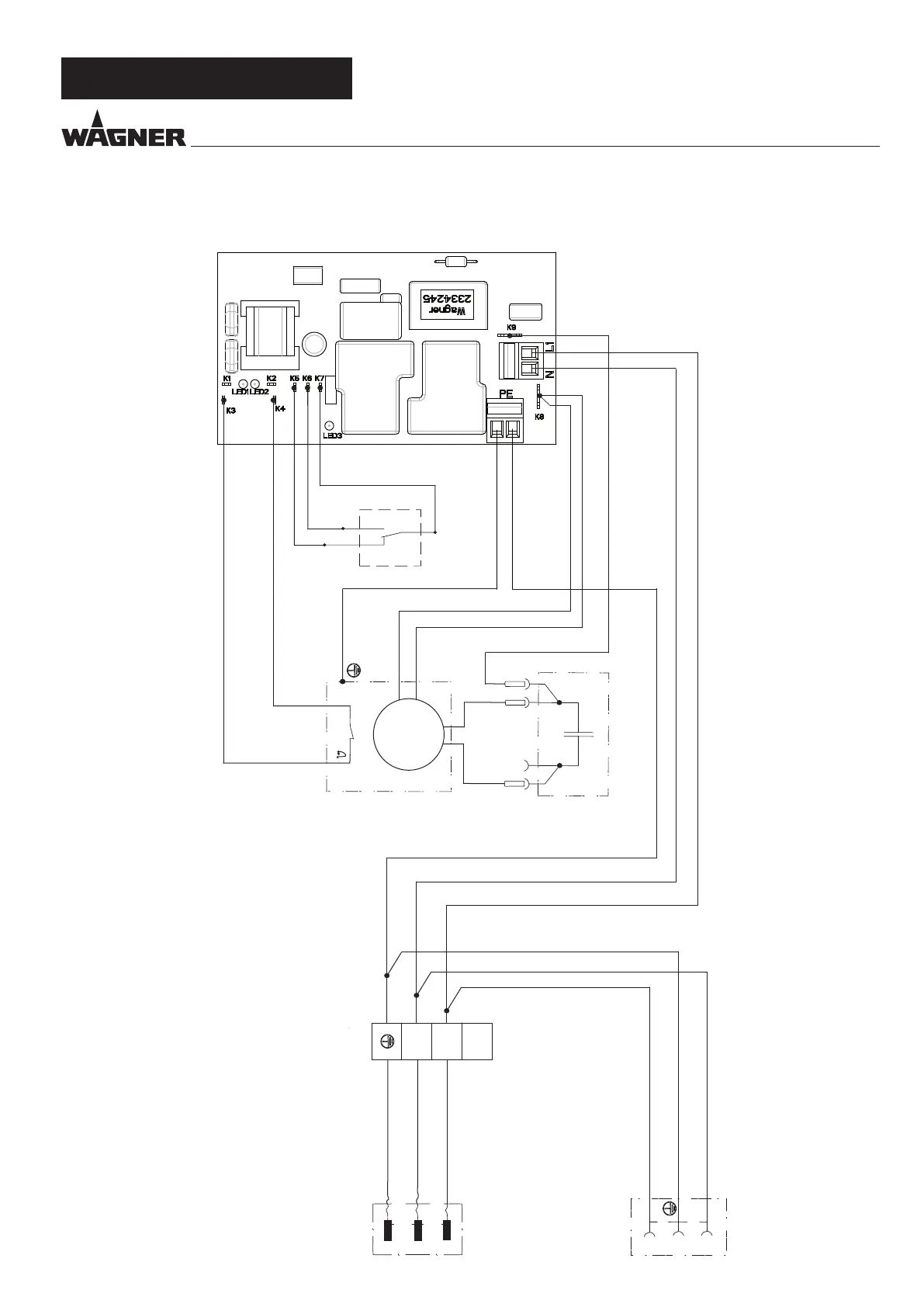

10.7 CONNECTION DIAGRAM
