Walker Edison BQSPIN - Step 6: Connect Back Rails; Step 7: Attach Feet

P. 7
Step 7
Step 6

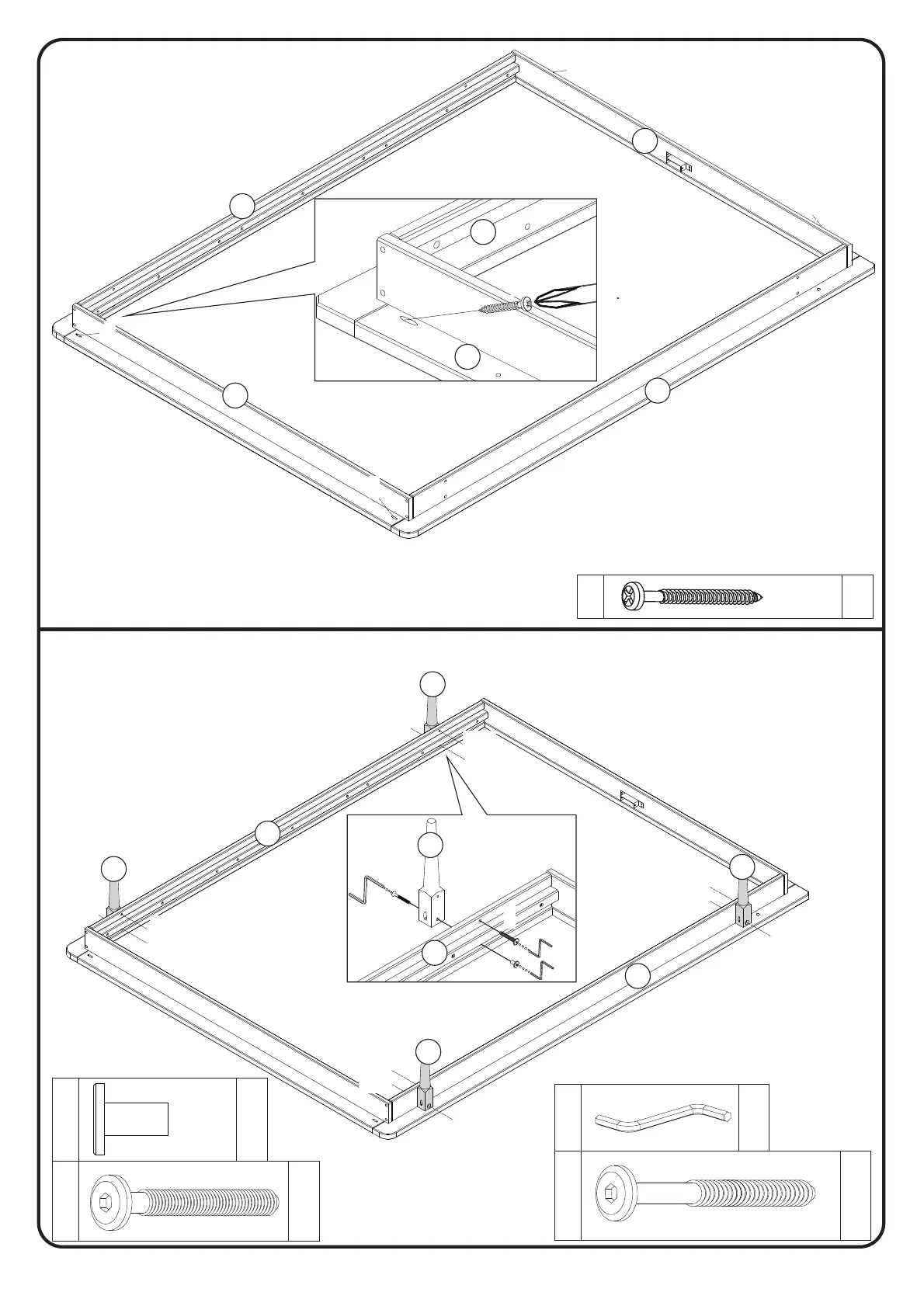

Attach feet 15 to Right side rail and Left side rail 20,21
using screw (M) and Union Screw (N).
Union Screw (N) should be on the inside of the bed frame,
with screw (M) on the outside of the feet. Tighten
using hex key (J) on both ends of the screw,
at the same time. Then use screw
(D) and hex key (J) to secure feet 15
D
4
Ø7x50mm
J
2
Connect parts 28,29 to parts 20,21 with screw B,
using a Phillips head screwdriver (not included).
M+J
N+J
D+J
N
M
D
J
J
J
M+J
N+J
D+J
M+J
N+J
D+J
M+J
N+J
D+J
B
B
B
B
B
28
29
20
20
21
28
15
15
15
15
20
20
21
M
4
Ø1/4x40mm
N
4
B
4
Ø3,5x30mm
15
