Walker Edison BQSPIN - Step 10: Secure Center Support; Step 11: Install Slats

P. 9
Step 10
Step 11

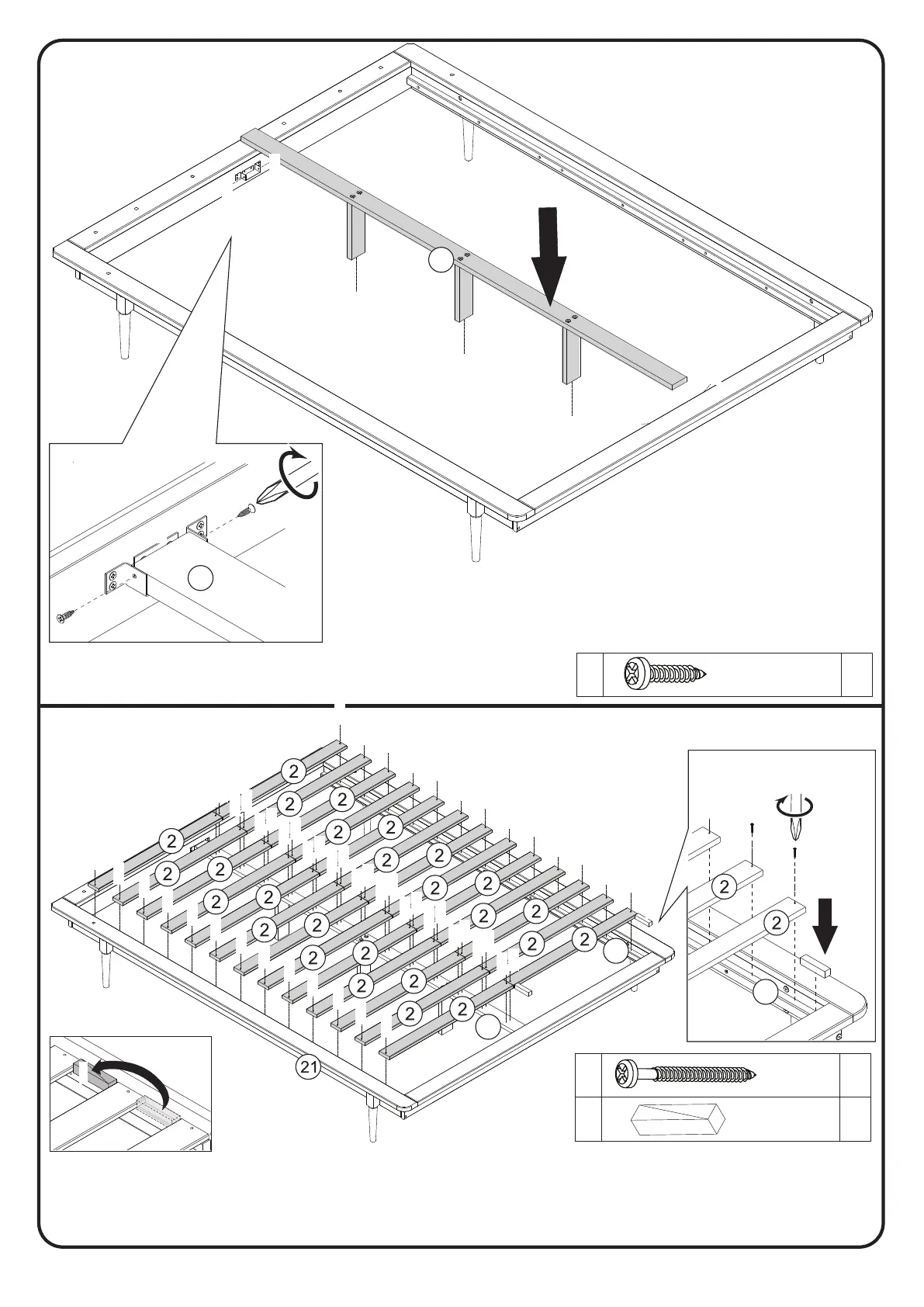

Secure part 24 to center bar support (R) with screw (P)
using a Phillips head screwdriver (not included).
Start With Space
L
2
L
B
B
B
P
P
P
P
24
L
Place part 2 onto parts 20,24 and parts 21,24. Use part (L) to space part 2 from the
end and secure with screw (B) using a Phillips head screwdriver.
Move part (L) to space the next part 2, secure with screw (B), and repeat this
process with the remaining parts 2.
