3. Place the frame into the front of the aperture, ensuring it is flush fitting with the finished face of
the wall, at the correct height and perfectly level in the horizontal and vertical planes.The hinge-
side of the frame should be hard up against the aperture.

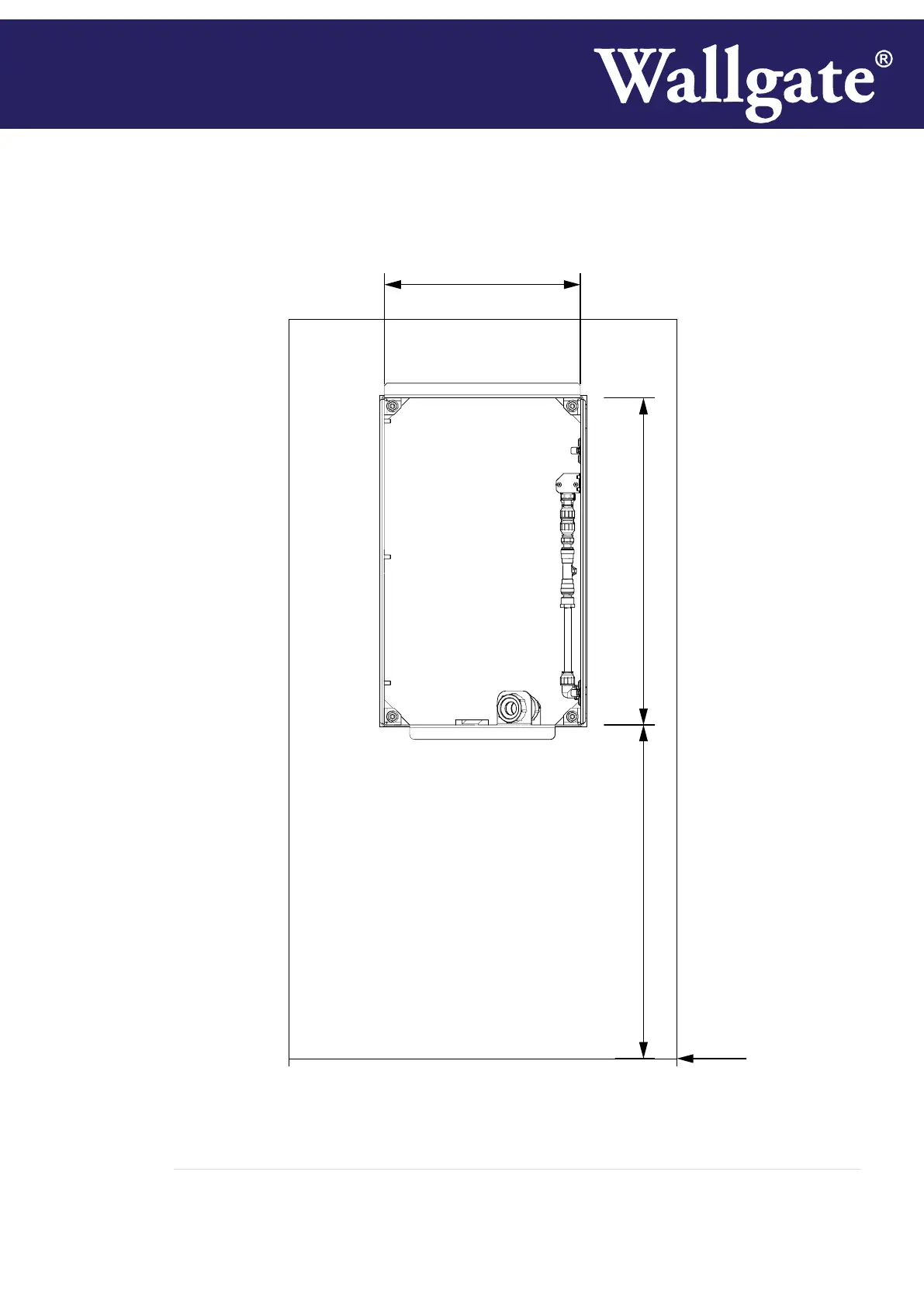

Fig.4 Typical site preparation for Wallgate Thrii unit. (Dimensions in millimetres)
Note hinge positions on the right-hand side when looking from the front
427 Aperture Width
+ 5
- 0
683 Aperture Height
+ 5
- 0
800 **
** Other mounting heights:
For Disabled model Thrii_DIS_SS:
UK = 590mm
France = 700mm
Australia = 680mm
New Zealand = 675mm
Finished
Floor Level
