4. Insert the 4No. M10x150mm threaded rods through the corner angles on the support frame and
into the brackets as shown in Fig. 6
5. Tighten all 4 brackets until the wall frame is held securely in place in the wall opening. It is
important that the frame side members are not distorted when tightening to the wall, as this may
prevent the hinge and catch mechanisms from working properly.
6. Once the frame is securely attached to the wall, if necessary make good any excessive gaps
between the frame and the wall that may not be covered by the fascia.

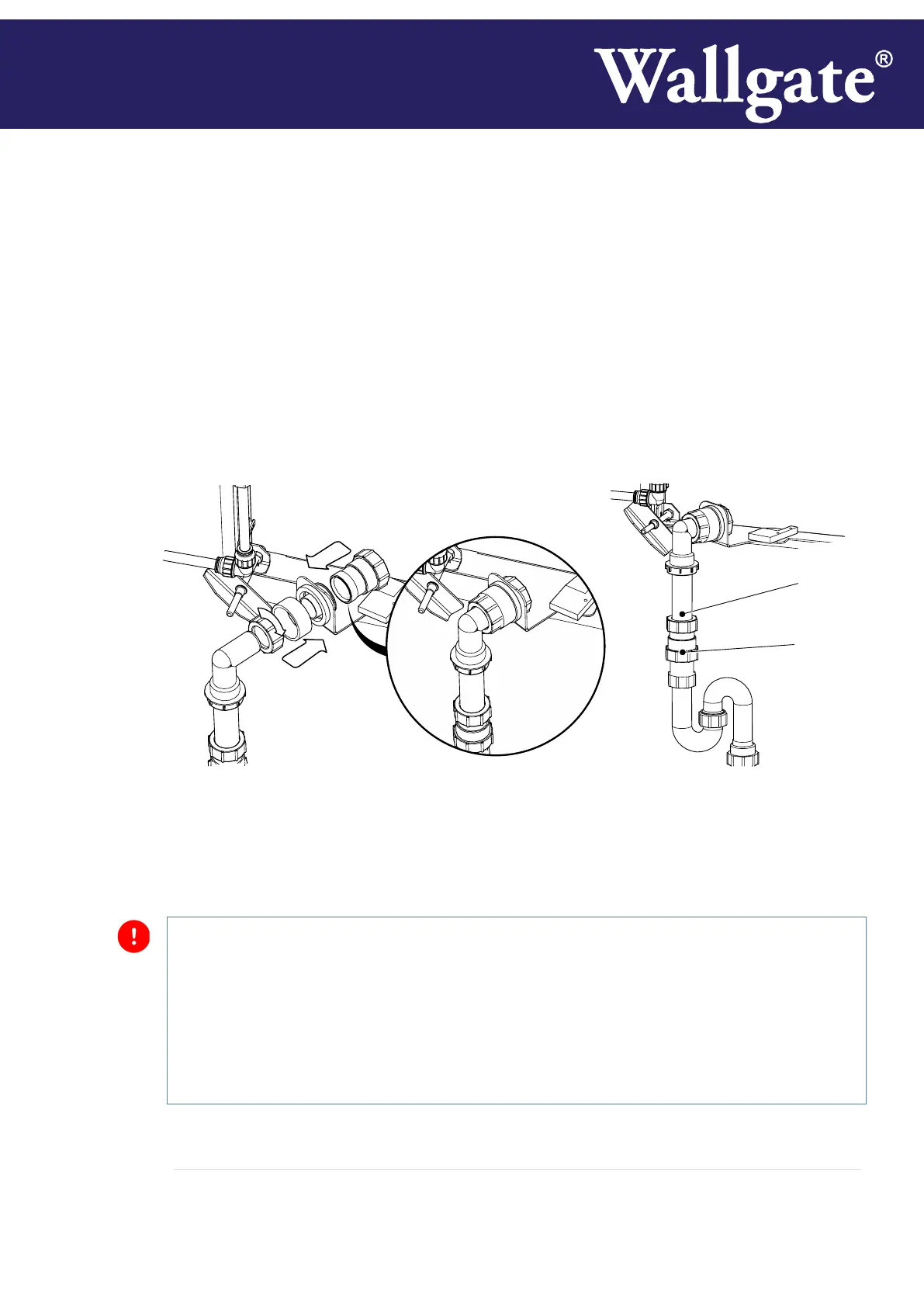

7. Install the waste connector to the frame as shown in Fig. 7 (below) along with the pipe adapter
which then terminated to the deep seal waste trap as detailed in section 6.2 site preparation.
Note that the pipe adapter can be used for either a 32mm or 40mm pipe connection.
Fig.7 Waste fitting assembly (view on rear)
8. Provide a cold water supply pipe to connect to the inlet connector on the support frame see Fig.2
& 6. Note that the water inlet connector can be altered to be either 15mm push fit or ½” BSP FM.
The ½” BSP FM brass adapter fitted to the inlet can be removed to alternatively use the 15mm
push fit connection.
The hand wash unit is supplied with a double check valve fitted to the water inlet connection
which must be in place to comply with water regulations.
If pipe sealing compound is used, avoid applying excessive amounts as particles of sealant can
block water filters and impede valve operation.
Before completing the water supply connection to the unit, flush the mains water supply pipes
to remove any debris and trapped air. Failure to do so may result in damage and failure of the
unit.
9. Connect the supplied electrical cable to the 13 amp spur connection unit.
