Rev. 1.3
Assembly Instructions - Spray Valve SMS-22
Page 16 of 25
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de
10 Appendix

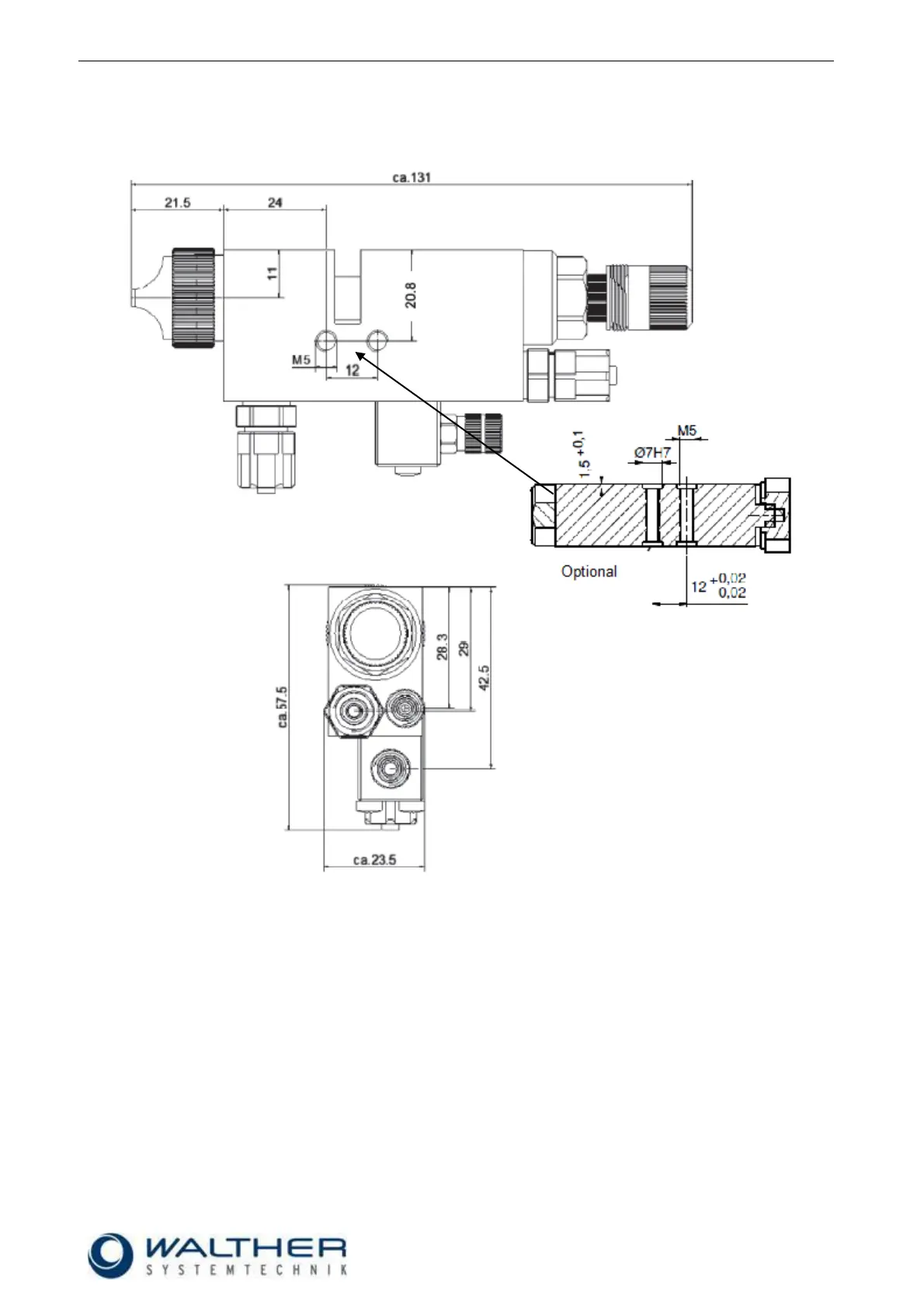

10.1 Dimensioned Drawing SMS-22
