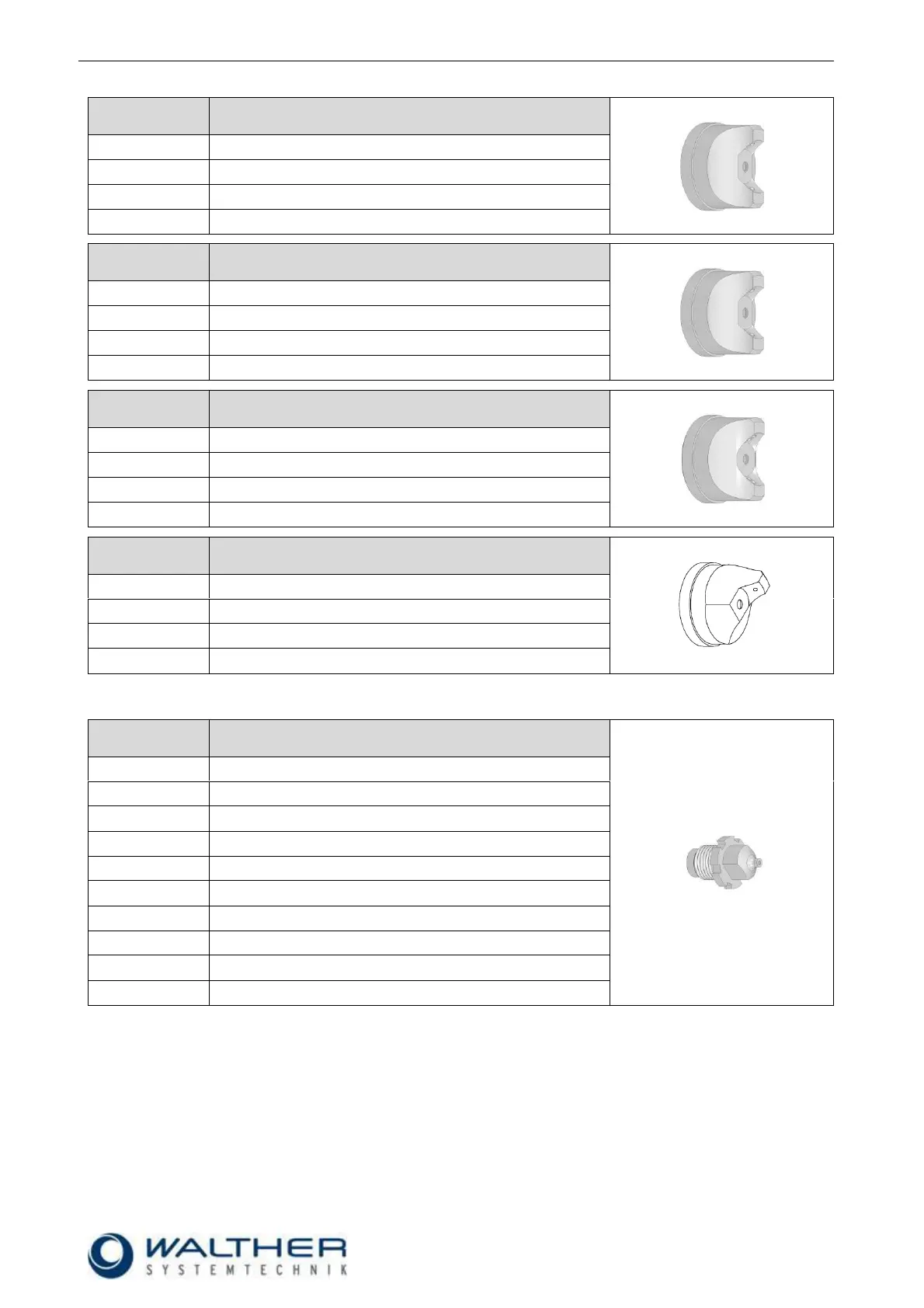

Walther Systemtechnik SMS-22 - Article Numbers for Nozzles

Rev. 1.3
Assembly Instructions - Spray Valve SMS-22
Page 20 of 25
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de
2.2
Air Cap, Flat Jet, KLS, 45° (Ø20x14.5mm)
Article No.
Description
97310292
Air Cap, Flat Jet, KLS 0.2-1.0mm
97310546
Air Cap, Flat Jet, KLS 1.2-1.5mm
97310547
Air Cap, Flat Jet, KLS 1.8-2.0mm
2.2
Air Cap, Flat Jet, KLS, 60° (Ø20x14.5mm)
Article No.
Description
97310081
Air Cap, Flat Jet, KLS 0.2-1.0mm
97310082
Air Cap, Flat Jet, KLS 1.2-1.5mm
97310083
Air Cap, Flat Jet, KLS 1.8-2.0mm
2.2
Air Cap, Flat Jet, KLS, 90° (Ø20x14.5mm)
Article No.
Description
97310108
Air Cap, Flat Jet, KLS 0.2-1.0mm
97310211
Air Cap, Flat Jet, KLS 1.2-1.5mm
97310545
Air Cap, Flat Jet, KLS 1.8-2.0mm
2.2
Air Cap, unicorn, KLS, 45° (Ø20x14.5mm)
Article No.
Description
97310087
Air Cap, unicorn, KLS 0.2-1.0mm
97310088
Air Cap, unicorn, KLS 1.2-1.5mm
97310089
Air Cap, unicorn, KLS 1.8-2.0mm
10.3 Article Numbers for Nozzles
3.0
Nozzle, Standard, stainless steel (Ø12x18mm)
Article No.
Description
97210110
Nozzle, Standard, 0.2mm
97210111
Nozzle, Standard, 0.3mm
97210112
Nozzle, Standard, 0.5mm
97210113
Nozzle, Standard, 0.8mm
97210114
Nozzle, Standard, 1.0mm
97210115
Nozzle, Standard, 1.2mm
97210116
Nozzle, Standard, 1.5mm
97210117
Nozzle, Standard, 2.0mm
97210118
Nozzle, Standard, 2.5mm
