Walther Systemtechnik SMS-22 User Manual

Rev. 1.3
Assembly Instructions - Spray Valve SMS-22
Page 19 of 25
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de

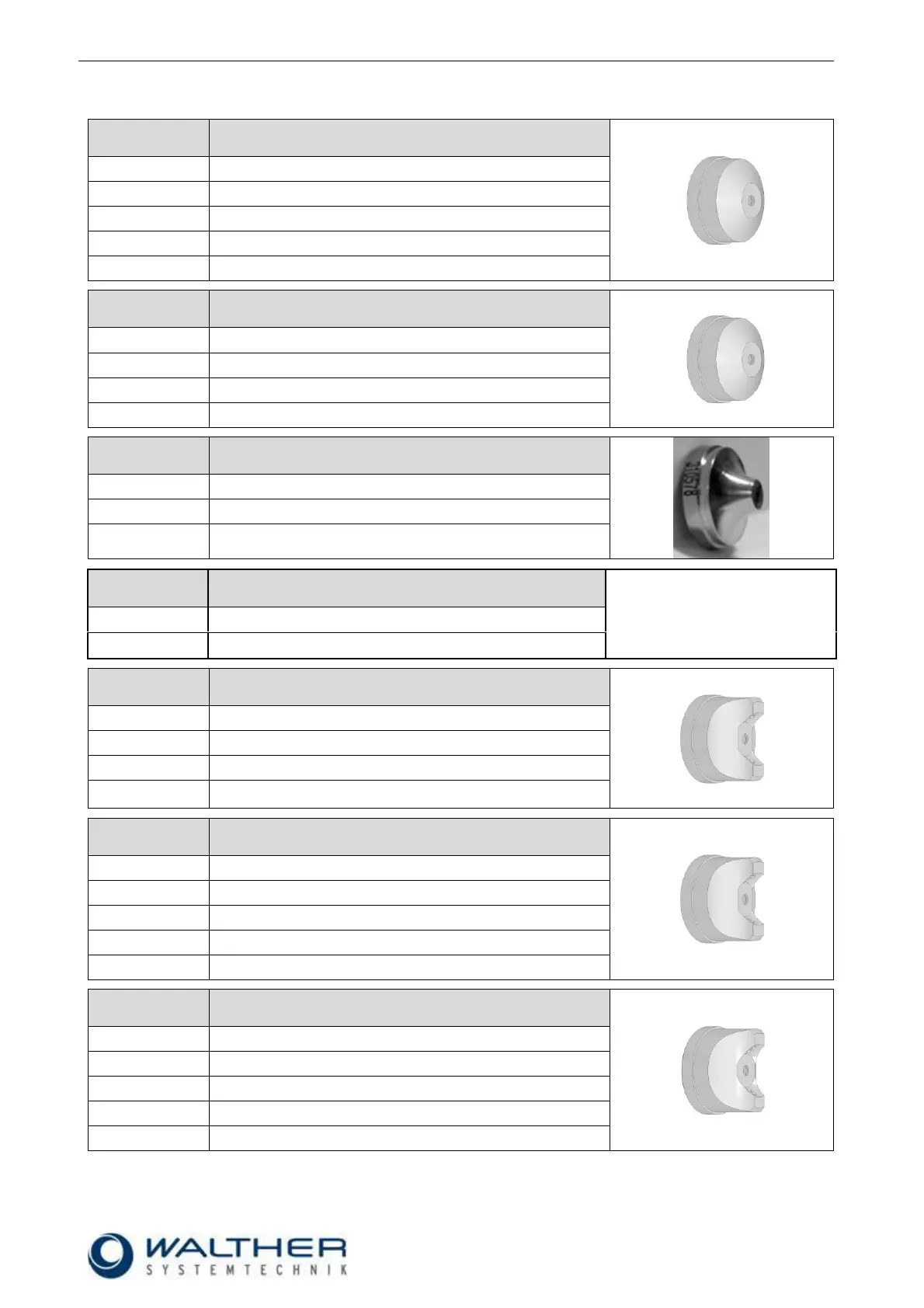

10.2 Article Number for Air Caps
2.1
Air Cap, Round Jet, Standard, 15° (Ø20x11mm)
Article No.
Description
97310034
Air Cap, Round Jet, 0.2-1.0mm
97310035
Air Cap, Round Jet, 1.2mm-1.8mm
97310080
Air Cap, Round Jet, 2.0mm
97310091
Air Cap, Round Jet, 2.5mm
2.1
Air Cap, Round Jet, KLS, 15° (Ø20x11mm)
Article No.
Description
97310084
Air Cap, Round Jet, KLS 0.2-1.0mm
97310085
Air Cap, Round Jet, KLS 1.2-1.5mm
97310086
Air Cap, Round Jet, KLS 1.8-2.0mm
2.1
Marking Air cap, Round jet 8° (Ø20x18mm)
Article-No.
Description
97310578
Marking air cap, 0.2-0.5mm
97310727
Marking air cap, 0.8-1.0mm
2.1
Special spin air cap, round jet
Article No.
Description
97310197
Special spin 0.2-2.0mm
2.2
Air Cap, Flat Jet, Standard, 45° (Ø20x14.5mm)
Article No.
Description
97310038
Air Cap, Flat Jet, 0.2-1.0mm
97310039
Air Cap, Flat Jet, 1.2-1.8mm
97310231
Air Cap, Flat Jet, 1.8-2.0mm, 20 x 14.5mm
2.2
Air Cap, Flat Jet, Standard, 60° (Ø20x14.5mm)
Article No.
Description
97310032
Air Cap, Flat Jet, 0.2-1.0mm
97310033
Air Cap, Flat Jet, 1.2-1.8mm
97310079
Air Cap, Flat Jet, 2.0mm
97310090
Air Cap, Flat Jet, 2.5mm
2.2
Air Cap, Flat Jet, Standard, 90° (Ø20x14.5mm)
Article No.
Description
97310036
Air Cap, Flat Jet, 0.2-1.0mm
97310037
Air Cap, Flat Jet, 1.2-1.8mm
97310166
Air Cap, Flat Jet, 2.0mm
97310167
Air Cap, Flat Jet, 2.5mm
