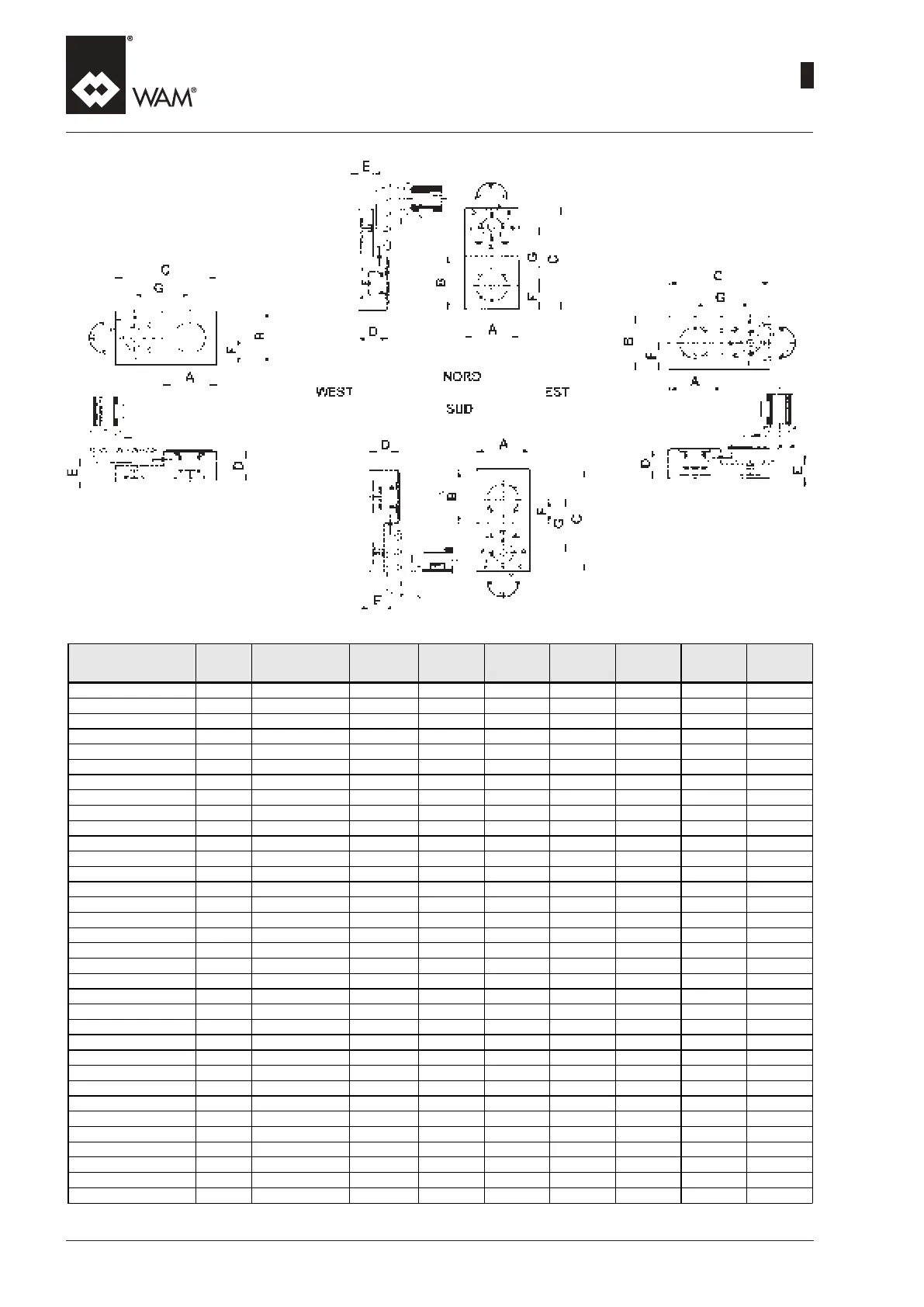

OPTIONS-CHAINTRANSMISSION(“S”-GEARREDUCER)
VARIANTEN-KETTENTRIEB(GETRIEBE“S”)
OPTIONS-ENTRAINEMENTPARCHAINE(REDUCTEUR“S”)
OPTIES-KETTINGTRANSMISSIE(“S”-TANDWIELKAST)
Code Ø
EINDLAGER
AS ALBERO
WAM A B C D E G
XD_010025RW25
100 025 S21 280 280 580 195 75
XD_012025RW25
120 025 S21 280 280 580 195 75
XD_015035RW25
150 035 S21 280 280 600 210 75
XD_015035RW35
150 035 S23 280 280 600 230 95
XD_020035RW25
200 035 S21 355 355 675 210 75
XD_020035RW35
200 035 S23 355 355 675 230 95
XD_025035RW25
250 035 S21 410 410 725 210 75
XD_025035RW35
250 035 S23 410 410 725 230 95
XD_025045RW35
250 045 S23 410 410 725 255 95
XD_025045RW45
250 045 S25 410 410 810 280 120
XD_030045RW35
300 045 S23 465 465 795 255 95
XD
_030055RW35
300 055 S23 465 465 795 265 95
XD_030045RW45
300 045 S25 465 465 865 280 120
XD_030055RW45
300 055 S25 465 465 865 290 120
XD_030055RW55
300 055 S27 465 465 975 300 140
XD_030065RW55
300 065 S27 465 465 975 320 140
XD_035045RW35
350 045 S23 535 535 865 255 95
XD_035055RW35
350 055 S23 535 535 865 265 95
XD_035045RW45
350 045 S25 535 535 940 280 120
XD_035055RW45
350 055 S25 535 535 940 290 120
XD_035055RW55
350 055 S27 535 535 1045 300 140
XD_035065RW55
350 065 S27 535 535 1045 32
0 140
XD_040045RW35
400 045 S23 590 590 935 255 95
XD_040055RW35
400 055 S23 590 590 935 265 95
XD_040045RW45
400 045 S25 590 590 1010 280 120
XD_040055RW45
400 055 S25 590 590 1010 290 120
XD_040055RW55
400 055 S27 590 590 1110 300 140
XD_040065RW55
400 065 S27 590 590 1110 320 140
XD_040080RW55
400 080 S27 590 590 1110 340 140
XD_050055RW45
500 055 S25 740 740 1170 290 120
XD_050065RW45
500 065 S25 740 740 1170 310 120
XD_050065RW55
500 065 S27 740 740 1270 330 140
XD_050080RW55
500 080 S
27 740 740 1270 340 140
XD_050100RW55
500 100 S27 740 740 1270 4420 150
