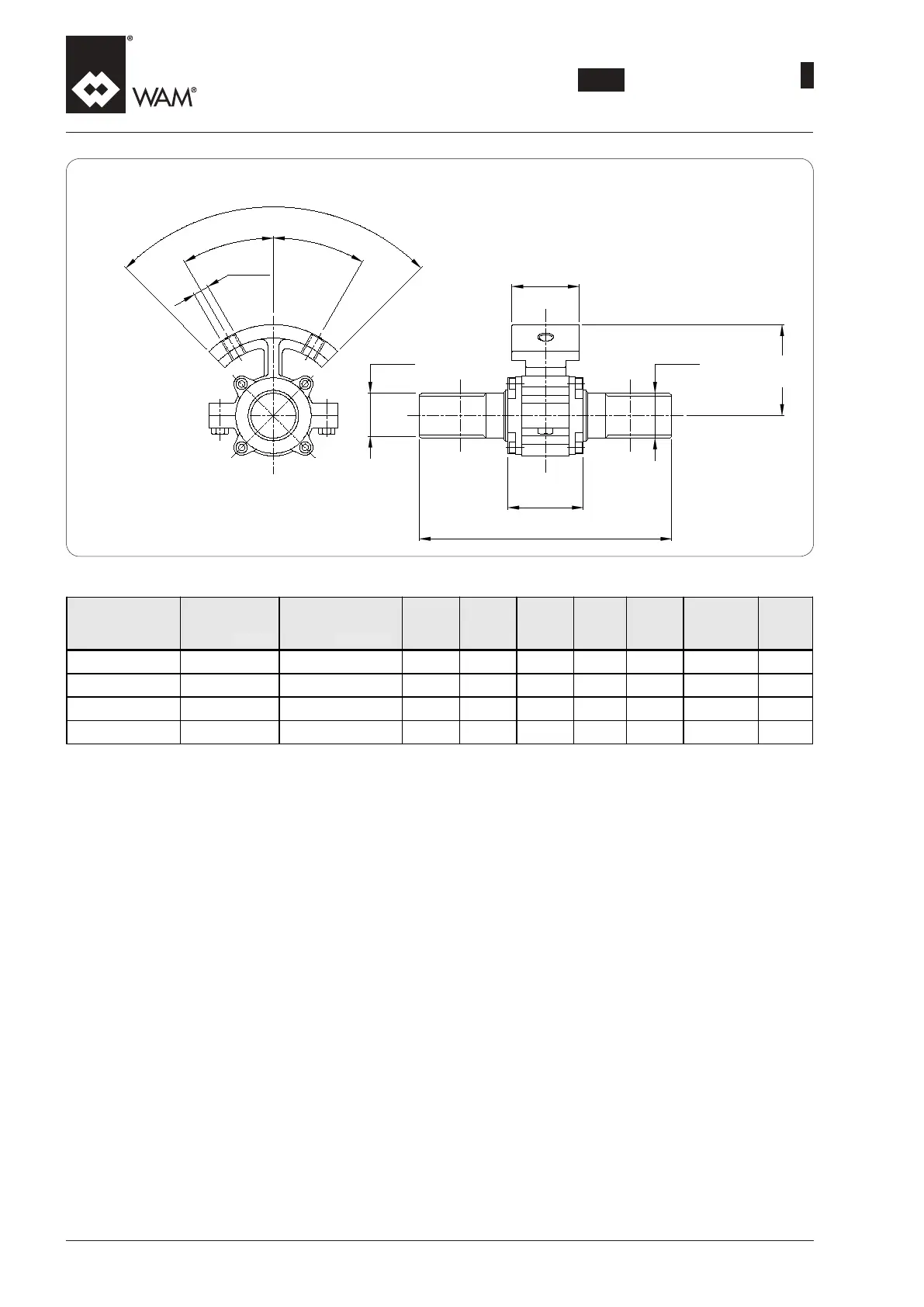

WAM TE - Tp Zubehör - Zwischenlager Xly

TP
1
CON.109.--.T.4L-NL
05.16
-
-
-
-
ACCESSORIES-HANGERBEARING
ZUBEHÖR-ZWISCHENLAGER
ACCESSOIRES-PALIERINTERMEDIAIRE
ACCESSOIRES–HANGENDELAGER
XLY
Ø D
C
ØM
B
L
ØM
A
90°
30°
30°
Code
Ø
Shaft-Welle
Arbre-Albero
Ø
Screw-Schnecke
Vis-Coclea
A B C øD L
øM
DIN5482
kg
XLY045H015T11
45 168 80 75 62 M 14 225 40 x 36 4
XLY045H020T11
45 219 105.5 75 62 M 14 225 40 x 36 4.5
XLY045H025T11
45 273 132.5 75 62 M 14 225 40 x 36 4.7
XLR045H030T11
45 323 157.5 75 62 M 14 225 40 x 36 5
40
As
Schroef
