5.0 INSTALLATION AND FIXING
VL
2
VAL.130.--.M.EN Issue: A1
09.16
21

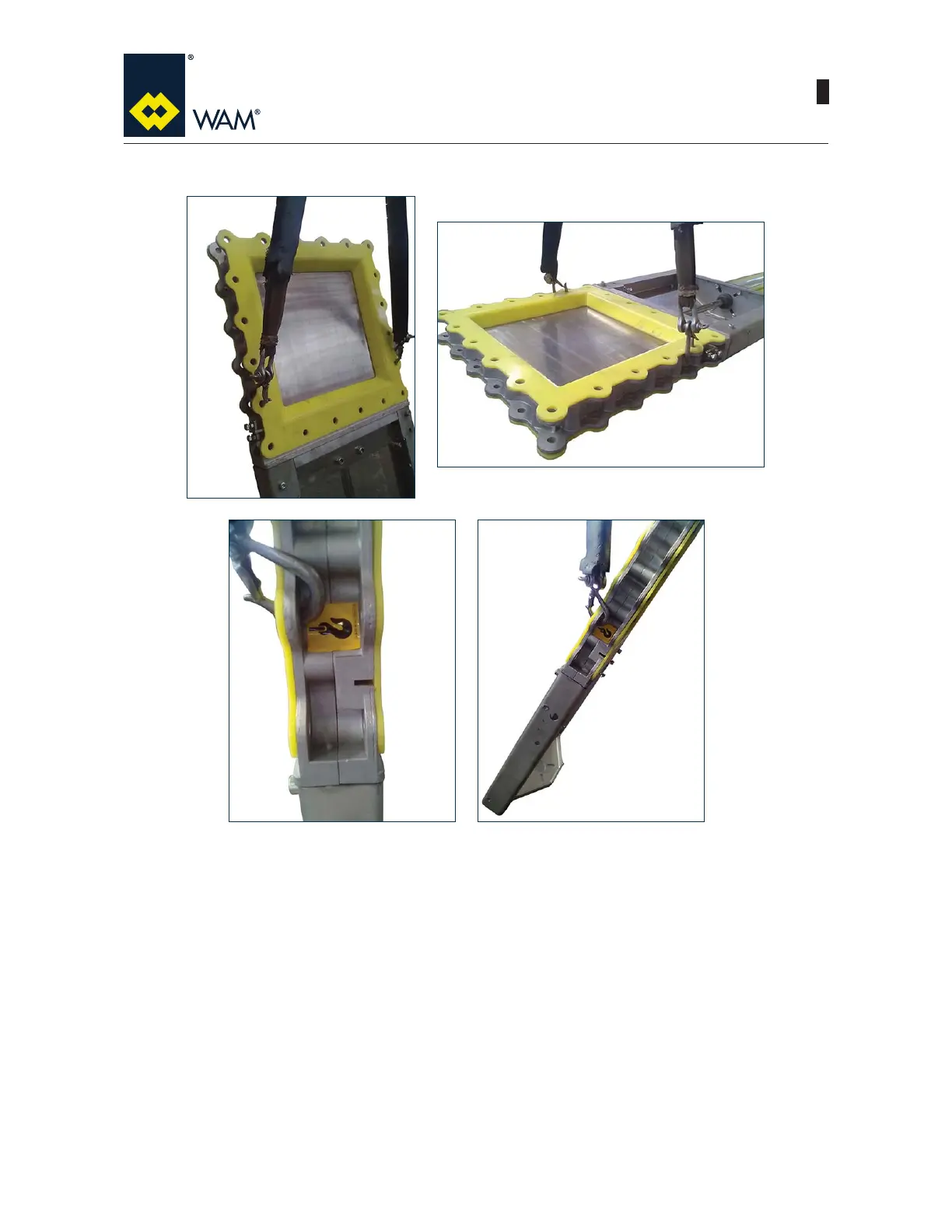

- Valve lifting
- Fixing the valve
3ODFHWKHYDOYHLQSRVLWLRQDQGEROWLWRQFDUHIXOO\XVLQJQXWVEROWVDQGVWXGEROWVUHVSHFWLYHO\8VHDVSHFL¿F
tool with a torque of 30 Nm.
(QVXUHWKHYDOYHLV¿WWHQRQWKHULJKWZD\VHHDVVHPEO\ZLWKDFWXDWRUVHFWLRQ
For food valves versions (model F and P) assemble according to the instructions given on the technical sheet
inside the package.
Carry out the pneumatic and electrical connections in compliance with the standards in force.
