Page 38
6.3 Combi Wiring Details

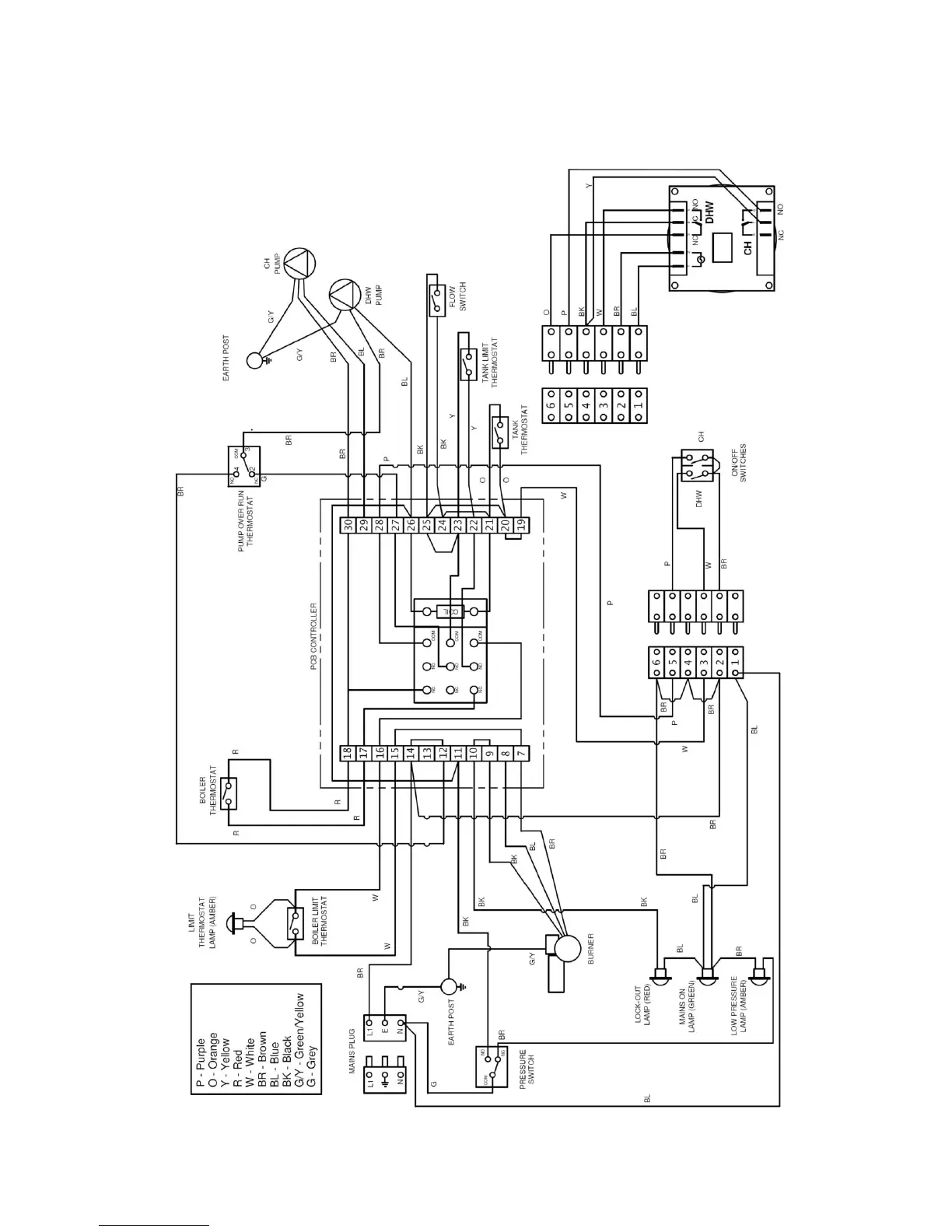

6.3.1 Wiring Diagram
The 3 pin mains plug must be supplied with a permanent live to allow the pump overrun stat and relay to operate.
