Warmup Element - Page 5

5

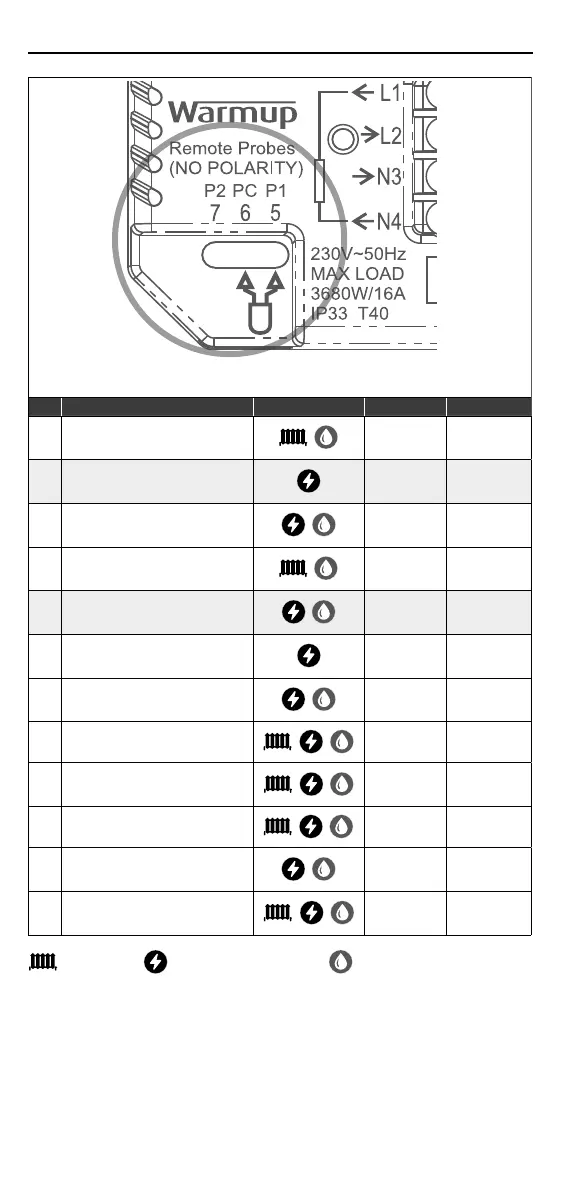

Table 1.0 Thermostat Use Cases
# Use Case System Type Control Limit Sensor
1
Thermostat IN room
Air temperature schedule
No oor limit
Internal
Air Sensor
None
2
*
Thermostat IN/OUT of room
Floor temperature schedule
Floor limit
Probe 1
(5 & 6)
Floor Sensor
None
3
Thermostat IN room
Floor temperature schedule
Air limit
Probe 1
(5 & 6)
Floor Sensor
Internal
Air Sensor
4
Thermostat OUT of room
Air temperature schedule
No oor limit
Probe 1
(5 & 6)
Air Sensor
None
5
**
Thermostat IN room
Air temperature schedule
Floor limit
Internal
Air Sensor
Probe 2
(6 & 7)
Floor Limit
6
Thermostat IN/OUT of room
Floor temperature schedule
Floor limit
Probe 1
(5 & 6)
Floor Sensor
Probe 2
(6 & 7)
Floor Limit
7
Thermostat OUT of room
Air temperature schedule
Floor limit
Probe 1
(5 & 6)
Air Sensor
Probe 2
(6 & 7)
Floor Limit
8
Thermostat IN/OUT of room
Regulator schedule
No limit
Reg. None
9
Thermostat IN room
Regulator schedule
Air limit
Reg.
Internal
Air Sensor
10
Thermostat IN/OUT of room
Regulator schedule
No limit
Reg. None
11
Thermostat IN/OUT of room
Regulator schedule
Floor limit
Reg.
Probe 2
(6 & 7)
Floor Limit
12
Thermostat IN/OUT of room
Regulator schedule
Floor limit
Reg.
Probe 2
(6 & 7)
Floor Limit
Hydronic underoor heating
Electric underoor heatingConventional
2
*
Recommended when thermostat is OUT of the heated room
5
**
Recommended when thermostat is IN the heated room
