Warn 101255 - Final Assembly and Reconnections

©2021 Warn Industries, Inc. WARN® and the WARN logo are trademarks of Warn Industries Inc. 10 100243A1
23. With assistance, reinstall the front bumper using stock
factory nuts at the eight mounting points in the frame. Be
sure to feed the winch rope through the fairlead opening
in the bumper. Torque the hardware to meet Jeep factory
specications.
24. Thread the winch rope through the ller plate and fairlead.
Secure plate and fairlead to bumper using the hardware
supplied in the winch kit. Fully tighten all hardware per
fairlead install specications.
25. Install the license plate onto the ange on the fairlead ller
plate.
26. Install hook to winch rope.
27. Secure the fog light wire harness to the winch plate using
the exposed christmas tree clips.
28. Fully tighten the bolts attaching the winch plate brackets to
the frame, as well as the hardware attaching the winch plate
brackets to the winch plate.
29. Route the winch ground and power wires up to the battery.
Make sure to keep the wires clear of any areas with extreme
heat or any moving parts. Secure the cables with zip ties if
necessary.
30. Reinstall the front skid plate using the factory hardware and
fully tighten.
NOTE: Depending on tment, some slotting of rear stock skid
pan holes may be required.
31. Reconnect the plug for the fog light harness.
CAUTION
• Always use assistance when moving or lifting heavy parts.

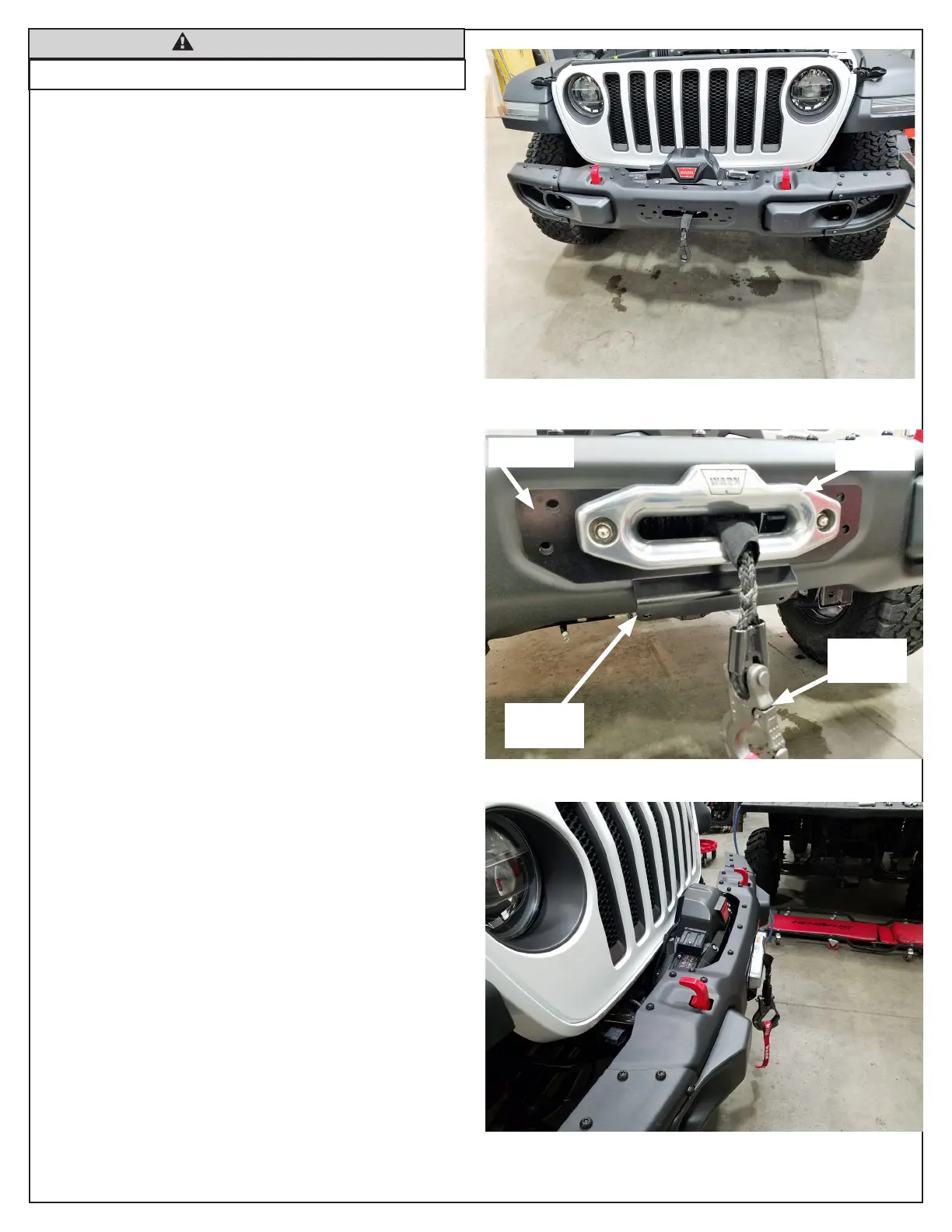

Figure 19
Figure 20
Figure 21
Install license
plate
Filler Plate
Fairlead
Hook
