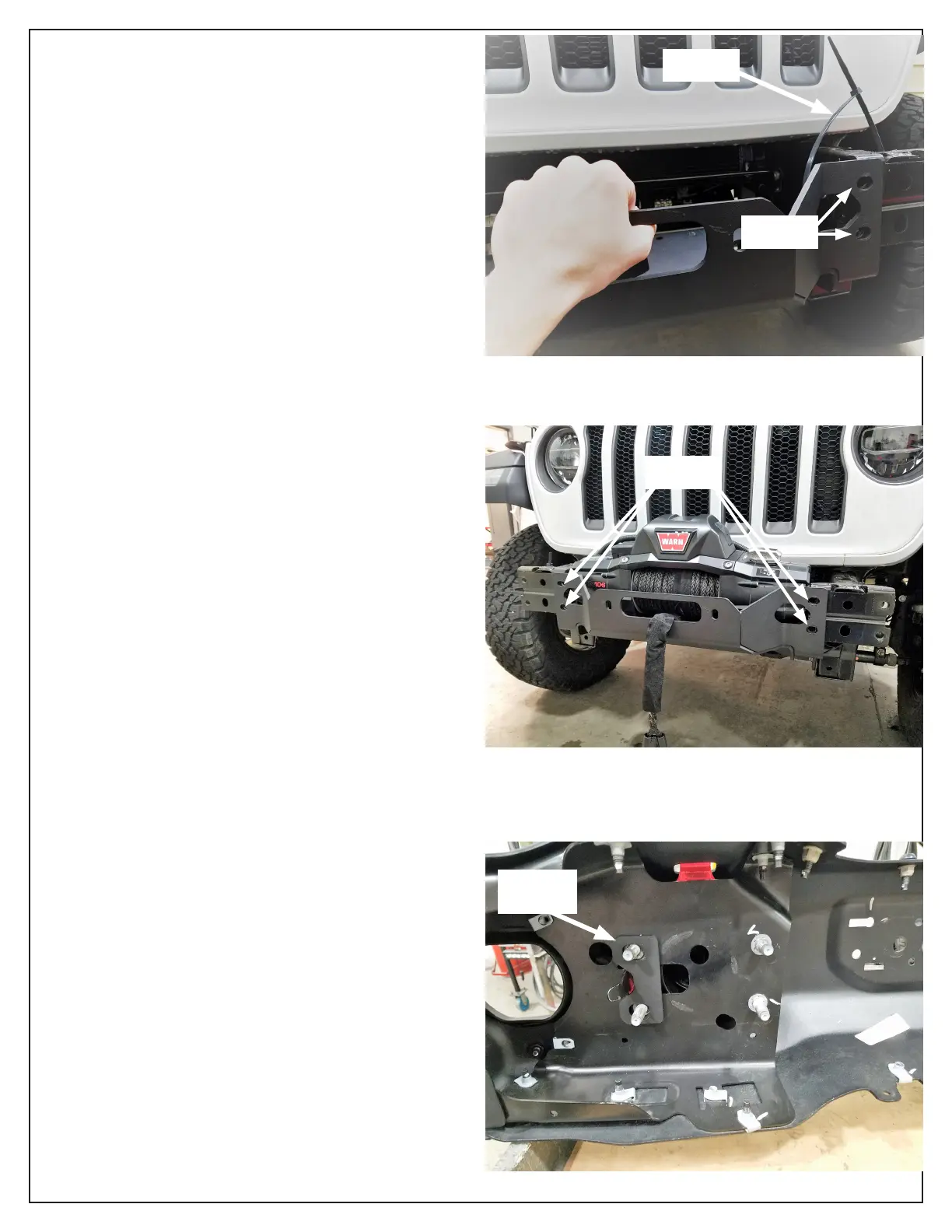

17. Lift the front of the winch plate until the mounting holes
are aligned between the winch plate and the frame rails.
Tighten the zip ties to hold the plate in this location.
18. Mount your winch onto the winch plate using the hardware
supplied in your winch kit.
19. Refer to the winch specic install torque specications to
fully tighten the hardware.
20. Disengage the winch and spool out approximately 1 foot of
winch rope.
21. Check mounting hole alignment. Once conrmed, tighten
zip ties, in order to keep the holes aligned while mounting.
Trim o excess of zip tie.
22. Place which plate spacers onto each of the outer sets of
studs on the bumper.
Figure 16
Figure 17
Figure 18
Spacer
Align holes
Tighten zip
tie
Keep holes
aligned
