3. Disconnect the fog light wire harness, located along the
frame rail on the passenger side of the vehicle.
4. Use an 18mm socket to remove the nuts (8 total) from the
OE bumper .
a. From the outside of the bumper, remove the two nuts
(both sides).
b. From the inside of the frame, remove the two nuts (both
sides).
5. Remove the frame horn bolt holding the inner frame
support gussets and remove the gusset. NOTE: The gussets
and hardware will not be reused.
INSTALLATION INSTRUCTIONS

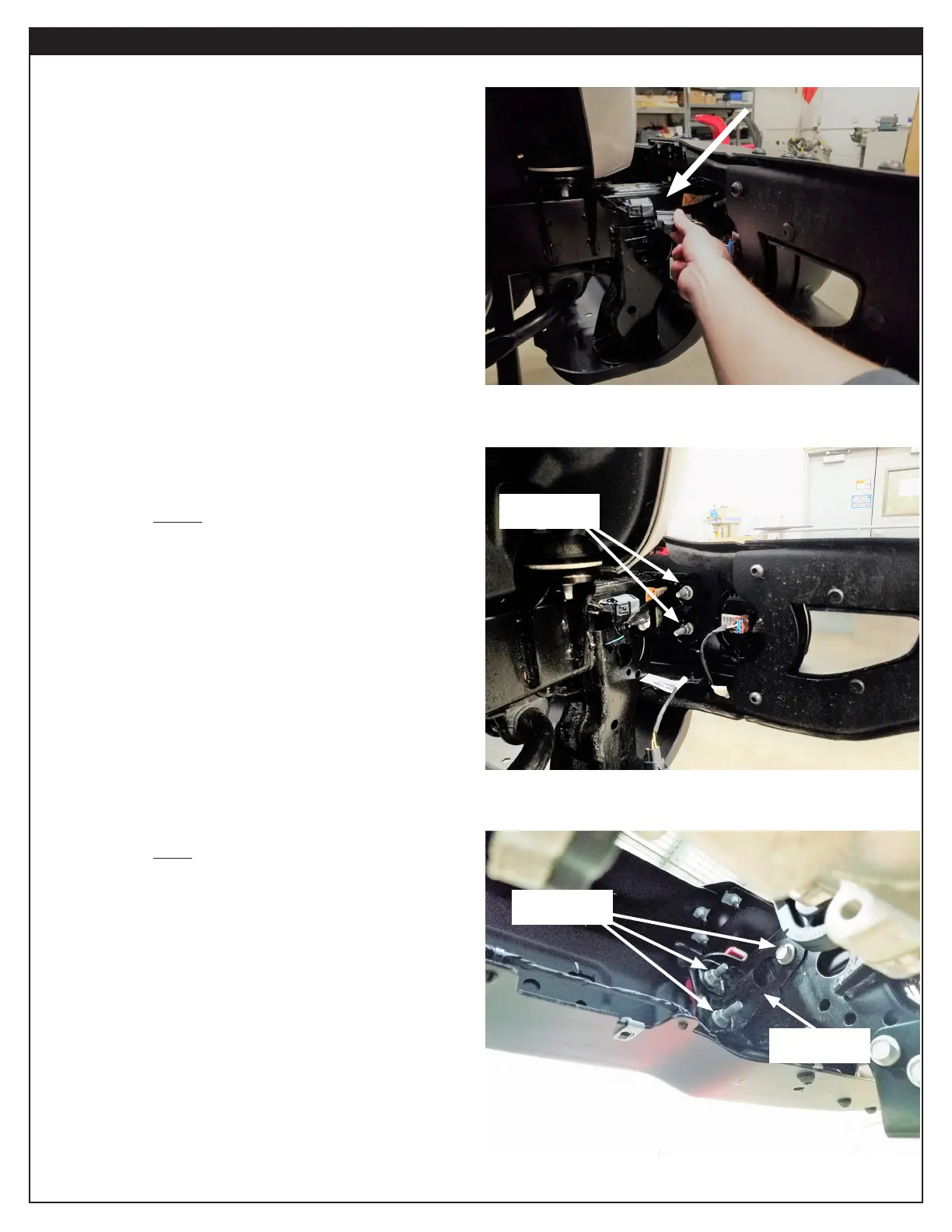

Figure 5
Figure 6
Figure 4
Inner gusset
Remove
Remove
