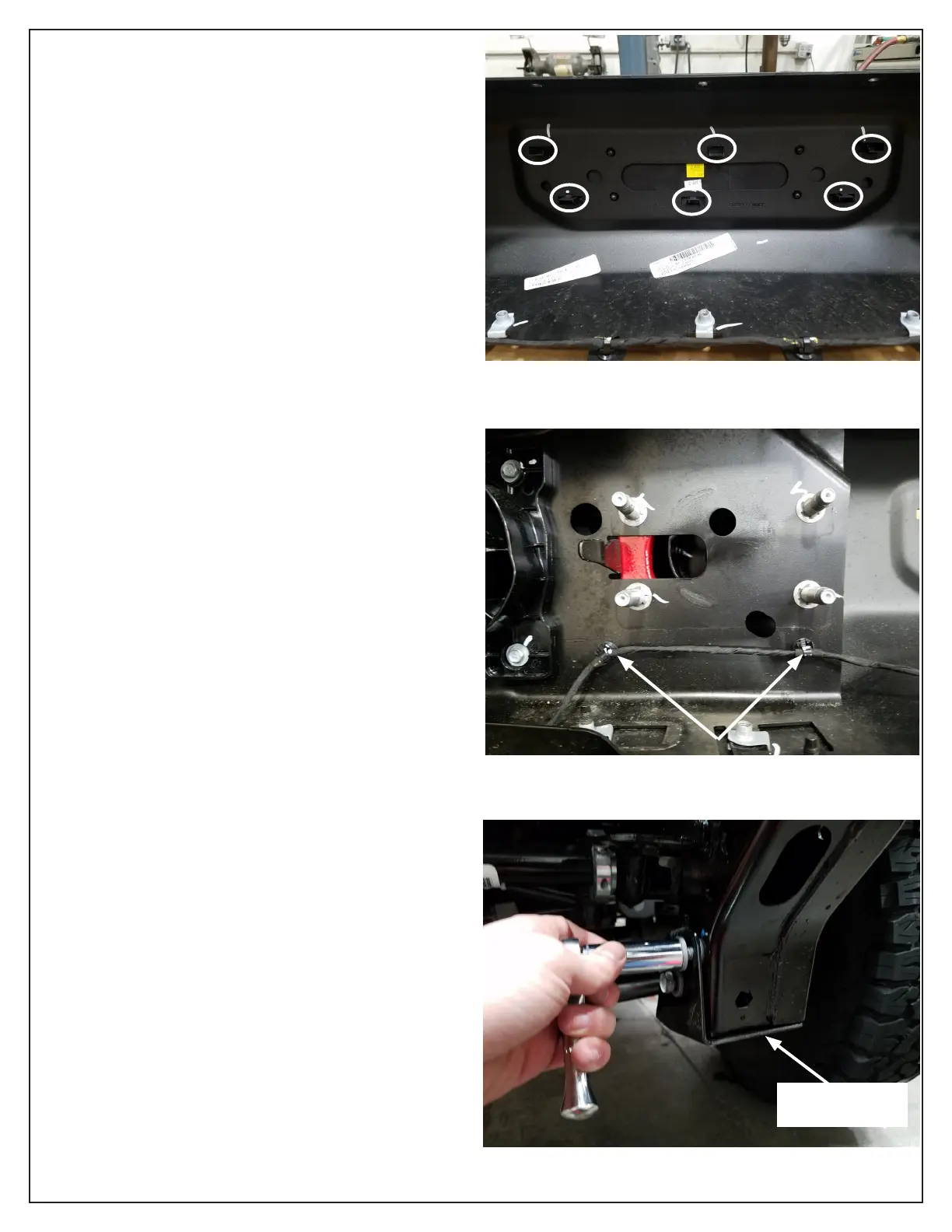

Figure 12
10. Remove license plate holder and fascia plate by pressing the
six clips and pressing the plate forward.
11. Use a small at head screwdriver to pry wire harness clips
upward.
12. Disconnect fog light harness Christmas tree clips from the
bumper. NOTE: The wire will hang loosely, but will later be
secured to winch plate.
13. Remove the four bolts (two on each side) that attach the two
skid plate mounting brackets to the frame. NOTE: Retain
hardware and brackets for winch plate bracket installation.
Figure 10
Figure 11
Skid Plate Mounting
Bracket
