27. Next, attach the detent pin and lanyard to the
outer plate with a #10 dia x 5/8” long bolt and
terminate with a #10 nylon lock nut. See Figure
27.
28. Attach one of the latches to a latch bracket. Use
two 3/8” dia x 1-1/4” long bolt and 3/8” nylon nuts.
See Figure 27 and 28 for part orientation for right
hand and left hand latch assemblies.

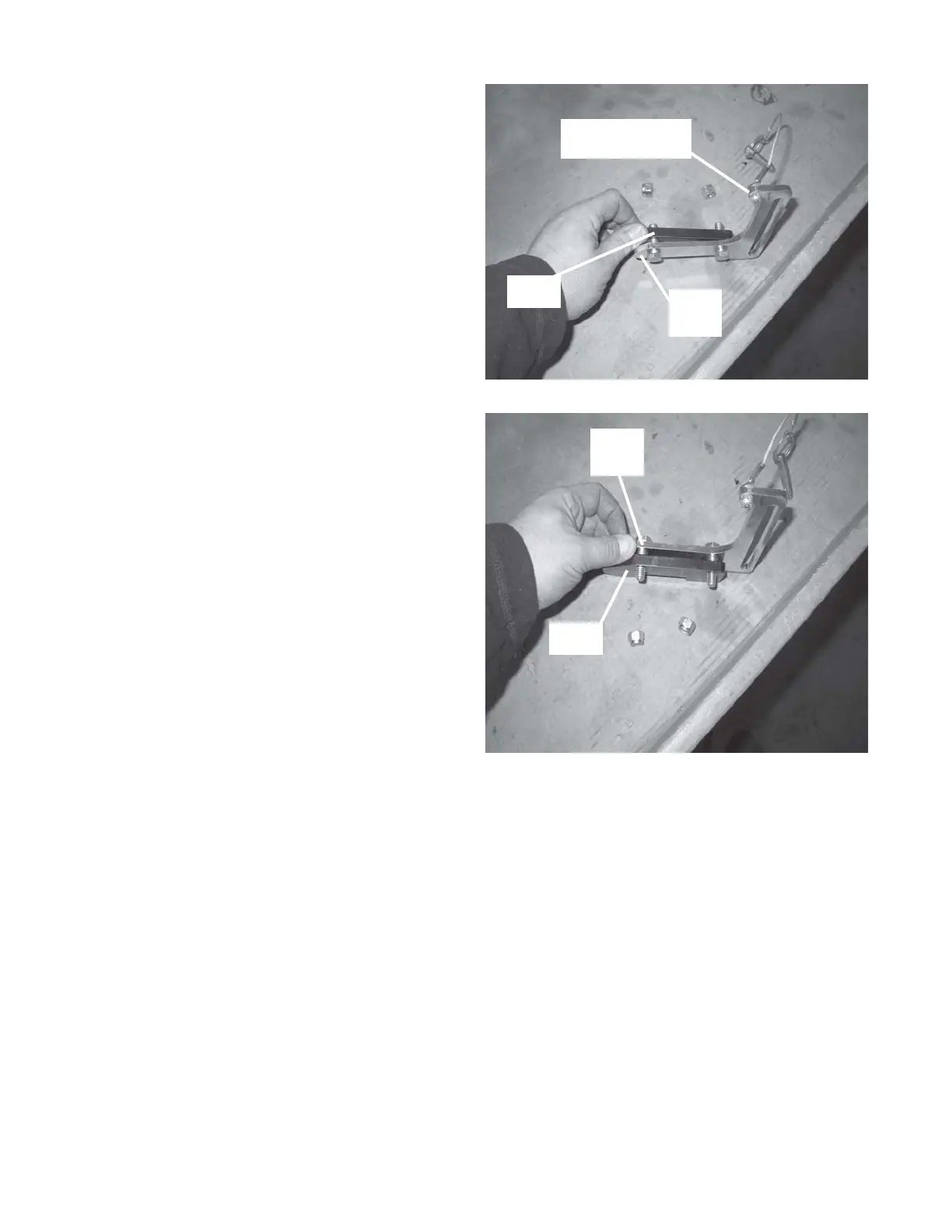

Figure 27 Latch assembly left hand side.
Figure 28 Latch assembly right hand side.
Latch
Bracket
Latch
Latch
Latch
Bracket
Detent pin/Lanyard
fastening location
