WARN INDUSTRIES PAGE 10 84856A0
V. Rubicon & Foreman Specic
Wiring Instructions

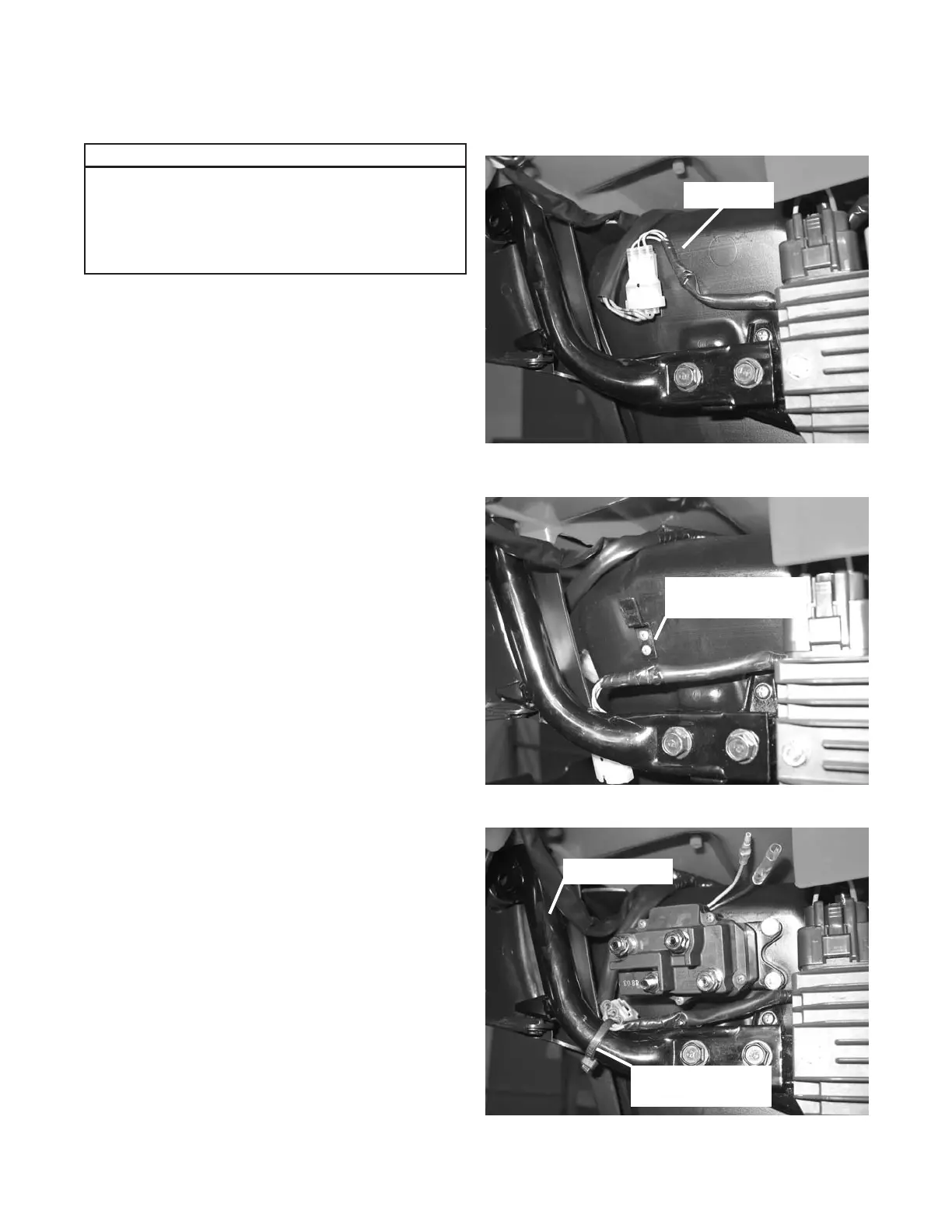

1. Contactor Location - Step Three in the
Installation and Specication Guide:
a. The contactor is located in the right rear inner fender,
on the right side of the rear tool box, gures 18, 19
& 20.
b. Remove the wire harness, gure 16, from the
bracket that holds the wire harness in position.
c. Using the drill and 1/4” drill bit, remove the top of the
rivet heads to remove the wire harness bracket.
d. Relocate the wire harness that was removed along
the rear rack tube, gure 18. Use a zip-tie to secure
the wire harness.
It should be noted that the following instructions
are ATV specic only. The following instructions
should be referred to as reference instructions to
assist wiring the winch from the Installation and
Specication Guide supplied in the winch kit.
Notice
Figure16RemoveWireHarnessfromBracket
WireHarness
Figure17RemoveWireHarnessBracket
RemoveWireHarness
Bracket
Figure18ContactorLocation-RightSideofToolBox
SecureWireHarness
withZip-Tie
RearRackTube
