WARN INDUSTRIES PAGE 14 84856A0
WARNING
Avoid all moving and potentially hot components
of ATV when routing electrical cables. Avoid
areas where the wiring could be pinched when
components are reinstalled. Failure to do so can
result in product failure which can lead to vehicle
damage and operator injury or death.
Please refer to gure 20 for the wiring schematic
Notice

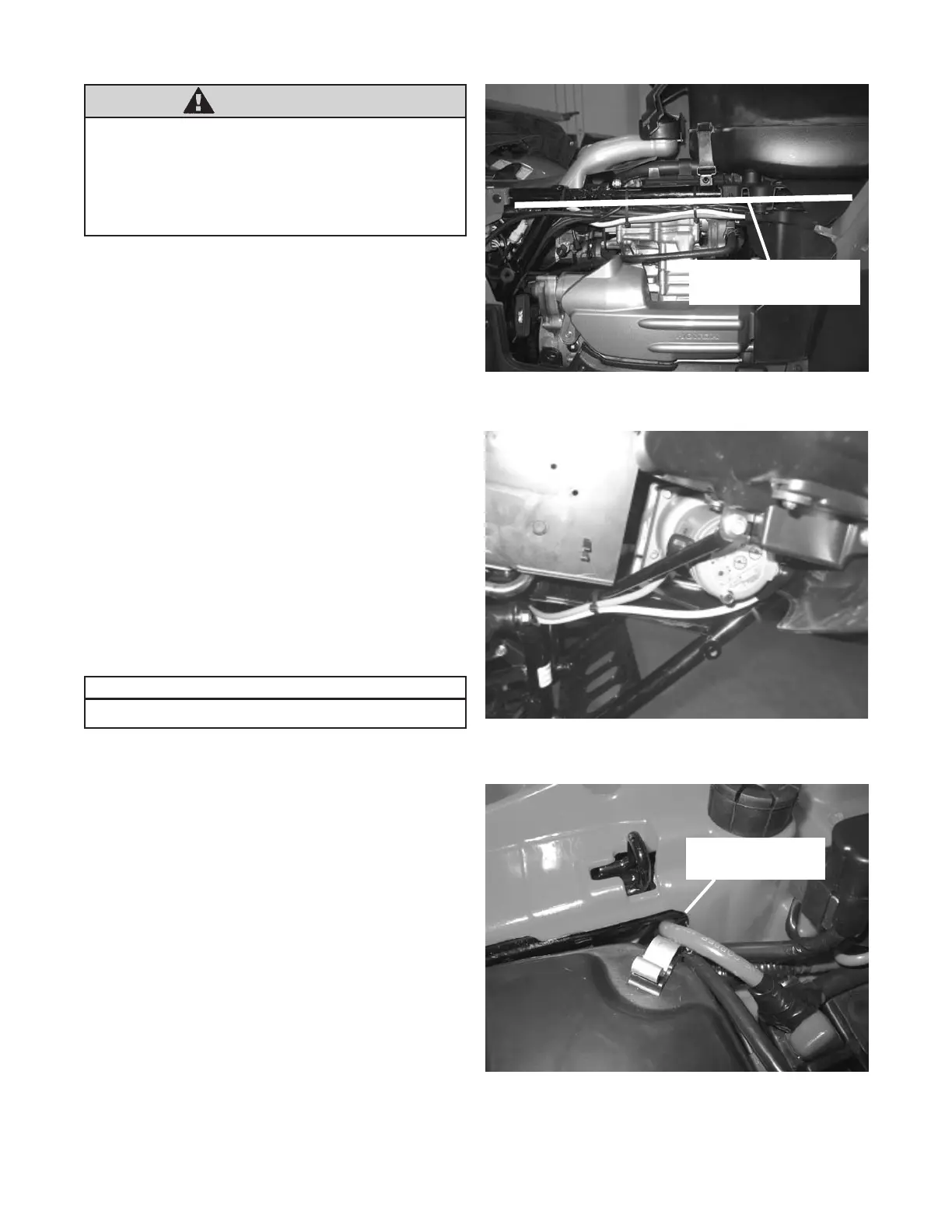

Figure27ElectricalCableRouting-ContactortoWinch
Secureallelectricalcables
toATVframewhenpossible
b. Connect the red and black electrical cables to the
contactor, gure 15, gure 19 and gure 20. Route
battery electrical cables (red and black), from the
contactor to the battery, along the outside of the
ATV frame as seen in gure 26. There is a hole in
the battery compartment that the electrical cables
can access the battery, gure 29. There is access
to this hole above the frame tube when routing the
electrical cables from the contactor to the battery,
gure 29. Use cable ties, supplied in the mounting
kit, to secure all electrical cables to the ATV frame.
Avoid all moving and potentially hot components of
the ATV when routing the electrical cables. Avoid
areas where the wiring could be pinched when
components are reinstalled (such as the seat).
Figure29ElectricalConnection-BatteryConnection
RouteElectricalCables
ThroughAccessHole
Figure28ElectricalCableRouting-ContactortoWinch
