WARN INDUSTRIES PAGE 5 84856A0

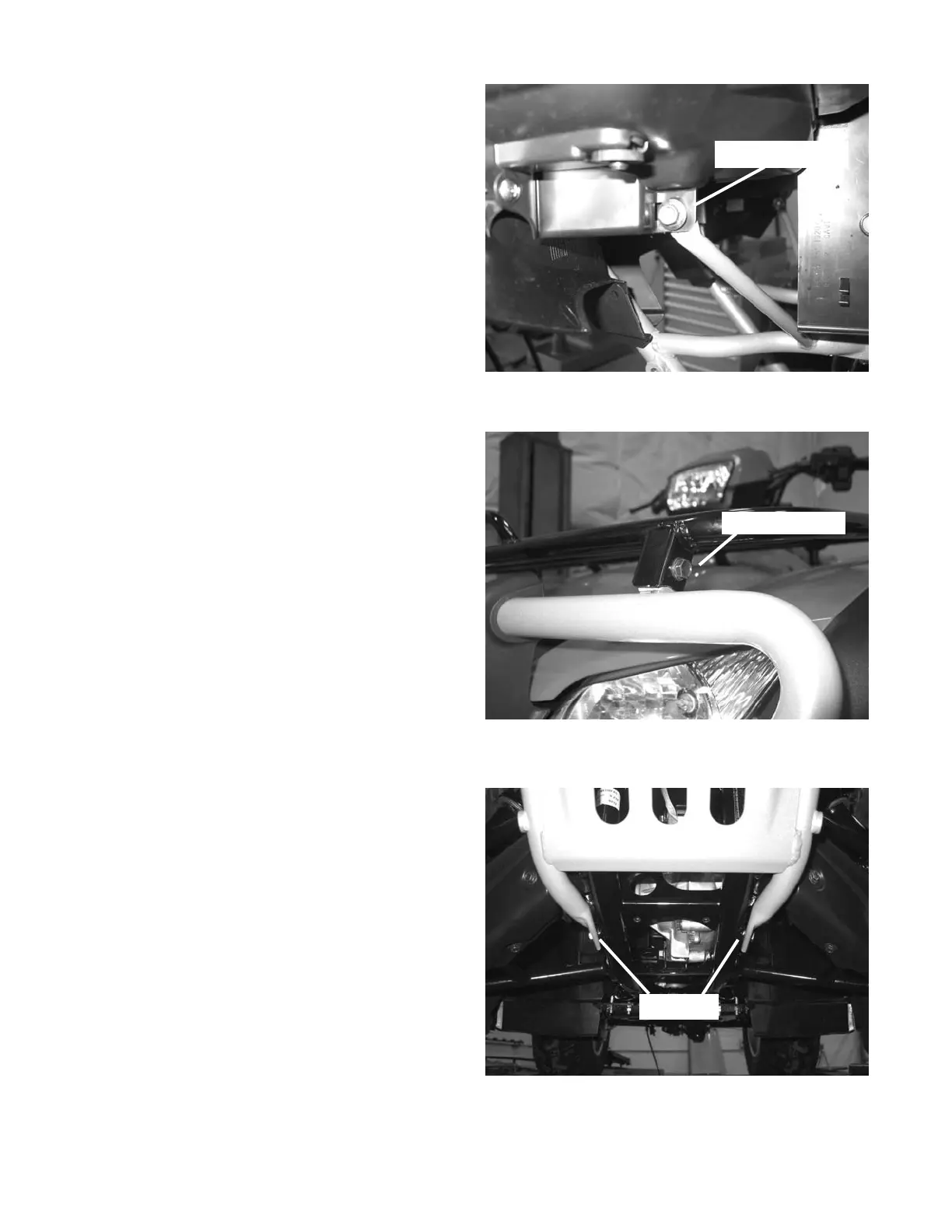

Figure5RemoveTopBumperBolts
Remove(bothsides)
Figure4FrontBumperBolts
Remove(bothsides)
Figure6RemoveBottomBumperBolts
Remove
4. Remove the two 6mm bolts that attach the front
bumper to the plastic headlight assembly, gure 4.
Save the fasteners as they will be used to reinstall
the front bumper.
5. Remove the two top 8mm bumper bolts that
attach the front bumper to the front rack, gure 5.
Save the fasteners as they will be used to reinstall
the front bumper.
6. Remove the two bottom bumper bolts that attach
the bumper to the bottom of the vehicle frame,
gure 6. Save the fasteners as they will be used
to reinstall the front bumper.
