WARN INDUSTRIES PAGE 8 84856A0
WARNING
Tighten all nuts and bolts securely. Failure to
check all nuts and bolts prior to use can result in
product failure which can lead to vehicle damage
and operator injury or death.

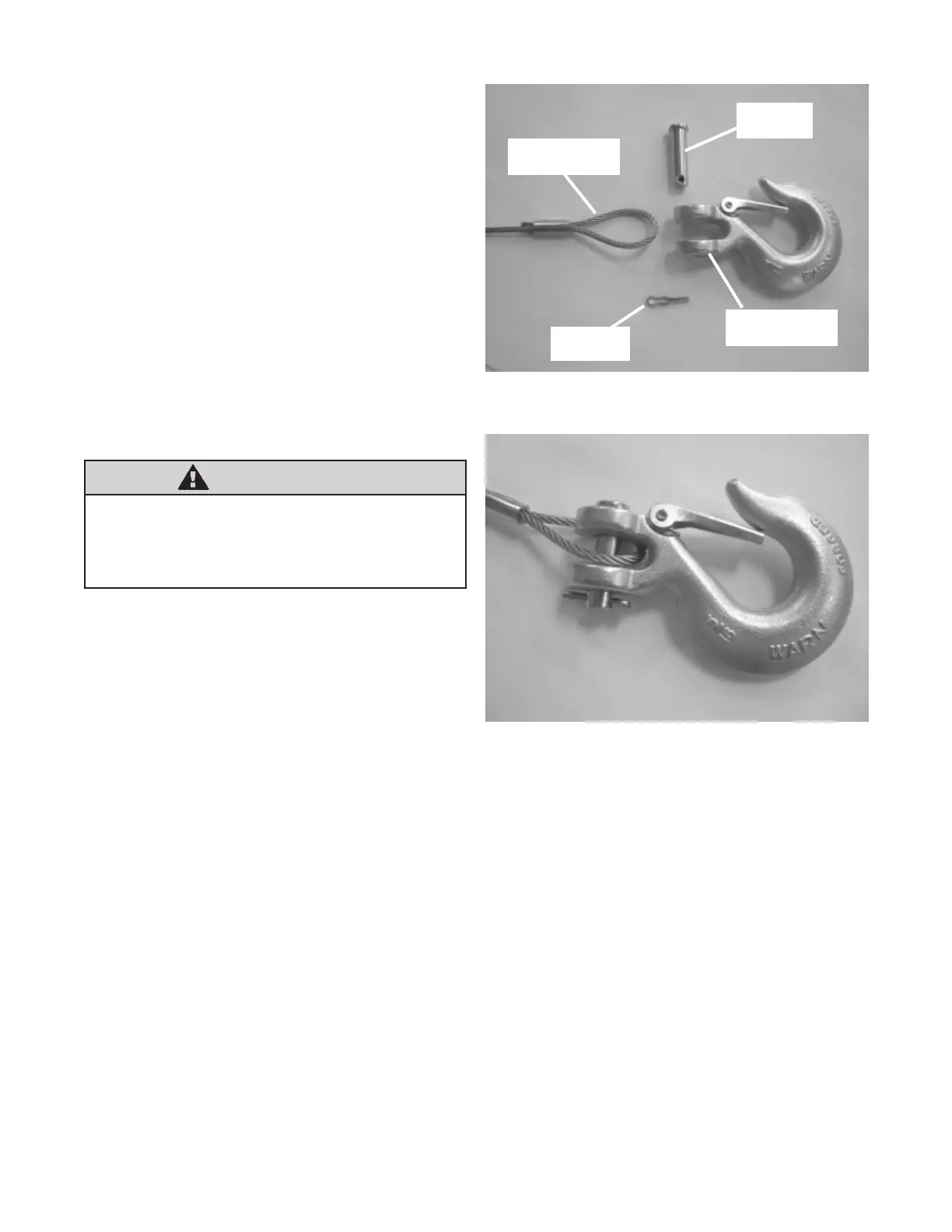

Figure13HookAssembly-ExplodedView
WinchWireLoop
CotterPin
ClevisPin
ClevisPinTabs
Figure14HookAssembly-Assembled
16. Switch the winch clutch to freespool. Manually
feed the winch cable through the roller fairlead.
Attach the clevis hook, supplied with the winch,
to the end cable loop as shown in gure 12. This
is done by placing the winch wire loop between
clevis pin tabs on hook. Insert clevis pin through
clevis pin tabs and the winch wire loop. Insert
cotter pin into clevis pin retaining hole, gure 13
and gure 14.
17. Complete the winch installation as described in
the winch installation and specication guide that
came with the winch.
Winch and winch mount installation is now com-
plete and should look like gure 12. Proceed to
section IV, entitled “Winch Wiring”.
