7. Install winch mount using only the top two M8 ange head
bolts provided.
Relocate wire harness in an appropriate location.
8. Place the right and left support brackets into place and bolt
into location using three M8 ange head bolts and two lock
nuts on each side.
9. At this point, torque all hardware to the specied ratings on
page 2.
NOTE: A 1/4” drive socket wrench and a deep 10mm
socket may need to be used to access and torque
the M6 lock-nuts on the u-bolts. See Figure 9 for
reference.

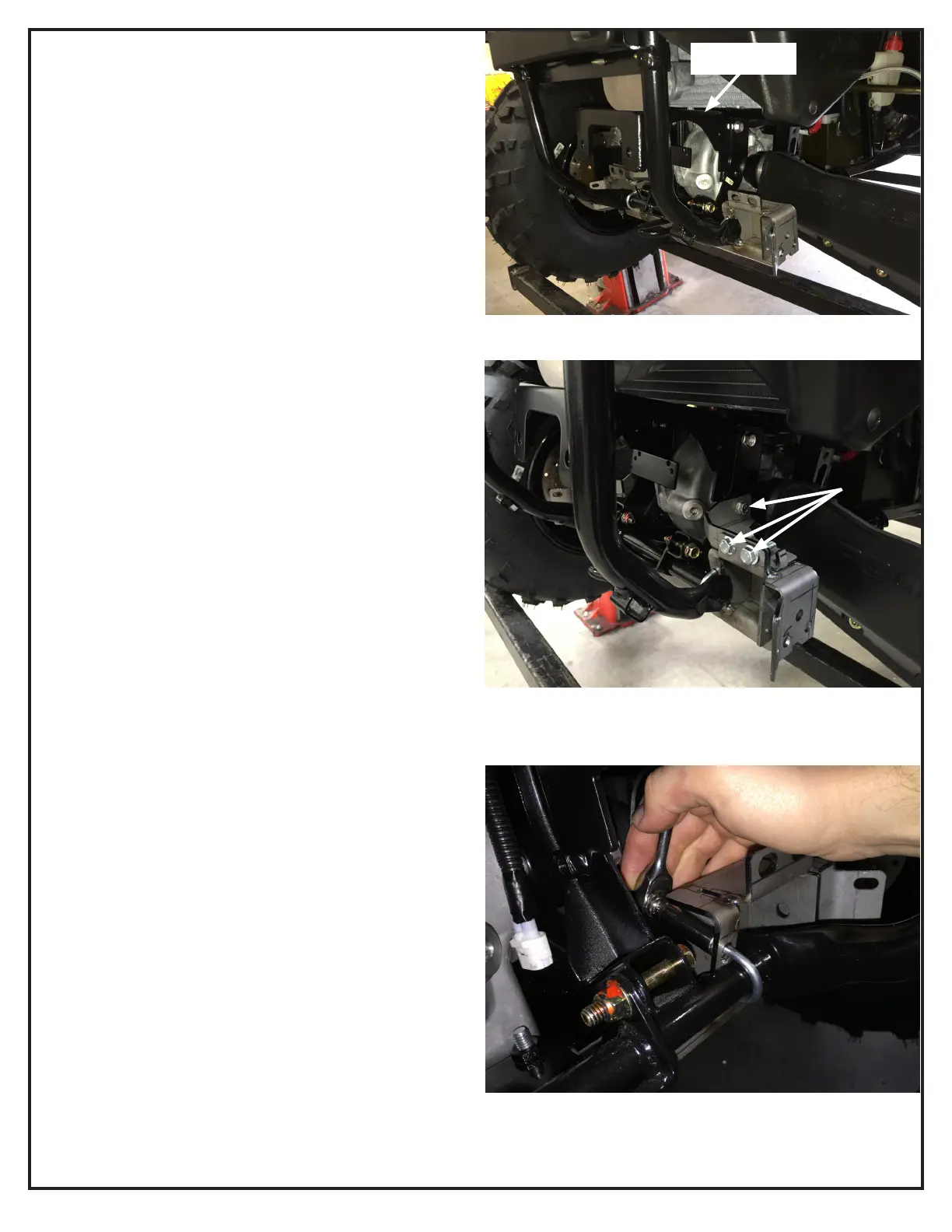

Figure 7
Figure 8
Figure 9
Winch Mount
