9.2 Internal cooling water system

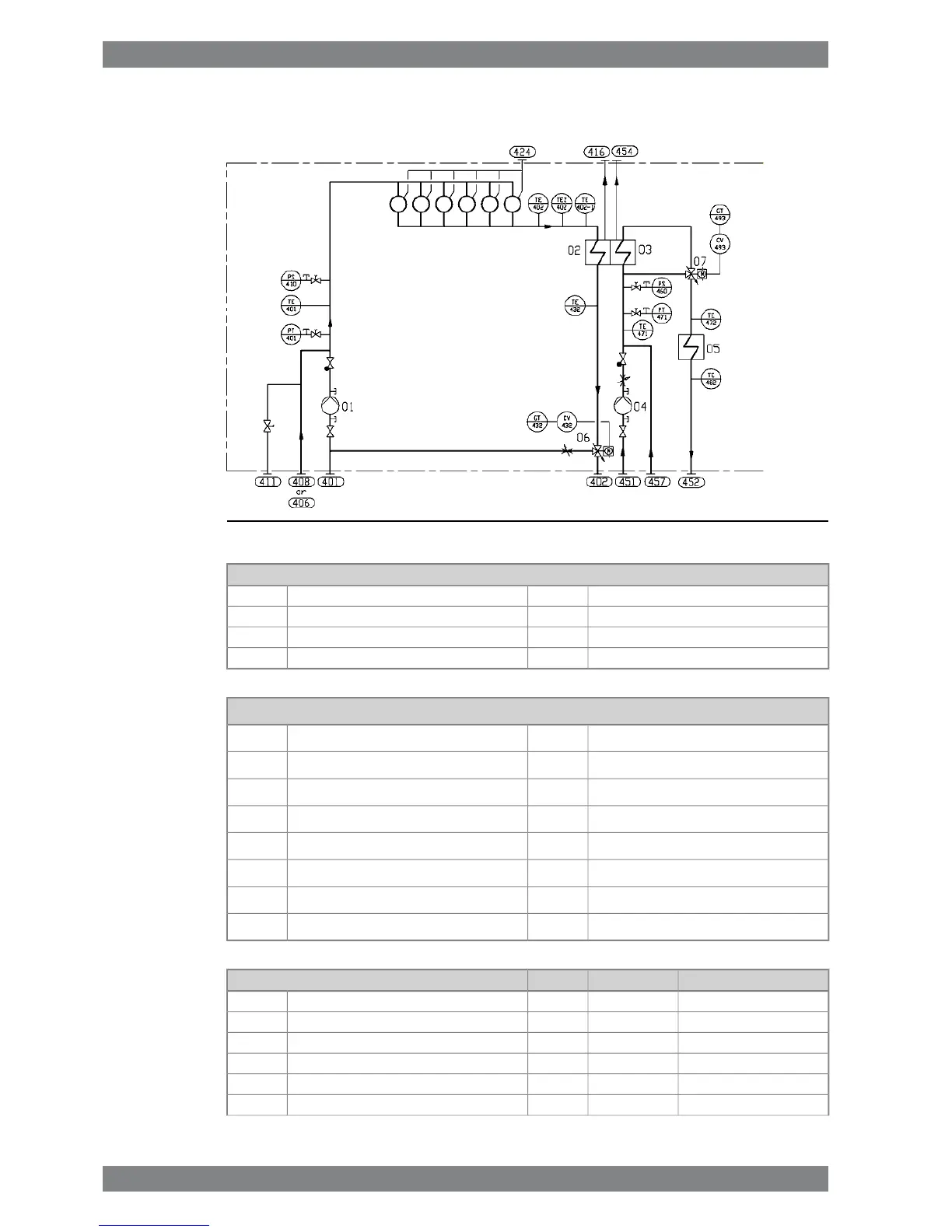

Fig 9-1 Internal cooling water system, in-line engine (DAAE017292E)
System components, in-line engines
Lubricating oil cooler05HT-water pump (engine driven)01
HT-temperature control valve06Charge air cooler (HT)02
CAC temperature control valve07Charge air cooler (LT)03
LT-water pump (engine driven)04
Sensors and indicators, in-line engines
HT-water temperature, HT CAC outletTE432HT-water pressure, jacket inletPT401
LT-water stand-by pump startPS460HT-water temperature, jacket inletTE401
LT-water pressure, LT CAC inletPT471HT-water temperature, jacket outletTE402
LT-water temperature, LT CAC inletTE471HT-water temperature, jacket outletTE402-1
LT-water temperature, LT CAC outletTE472HT-water temperature, jacket outletTEZ402
LT-water temperature, LO cooler outletTE482HT-water stand-by startPS410
LT-water thermostat controlCV493HT-water thermostat controlCV432
LT-water thermostat positionGT493HT-water thermostat positionGT432
StandardPressure classSizePipe connections, in-line engines
ISO 7005-1PN16DN150HT-water inlet401
ISO 7005-1PN16DN150HT-water outlet402
DIN 2353PN40DN50Water from preheater to HT-circuit406
ISO 7005-1PN16DN150HT-water from stand-by pump408
ISO 7005-1DN16HT-water drain411
DIN 2353OD15HT-water air vent from air cooler416
9-2 Wärtsilä 46F Product Guide - a19 - 1 December 2017
Wärtsilä 46F Product Guide9. Cooling Water System
