7.3 External lubricating oil system

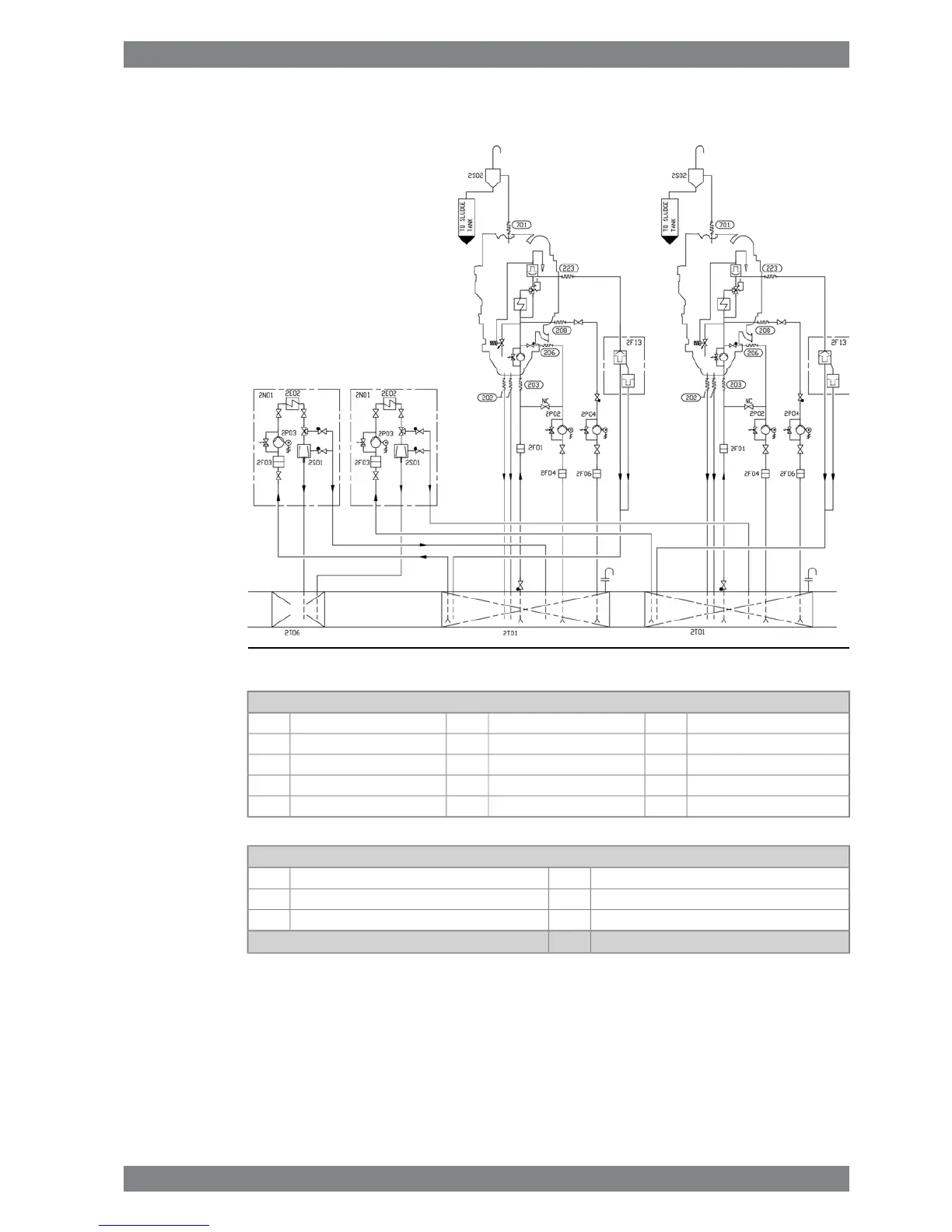

Fig 7-3 External lubricating oil system, engine driven pumps (DAAE022043E)
System components
Separator2S01Automatic filter2F13Heater2E02
Condensate trap2S02Separator unit2N01Suction strainer2F01
System oil tank2T01Pre-lubricating oil pump2P02Suction filter2F03
Sludge tank2T06Separator pump2P03Suction strainer2F04
Stand-by pump2P04Suction strainer2F06
Pipe connections
Lubricating oil from stand-by pump208Lubricating oil outlet
*)
202
Flushing oil from external filter223Lubricating oil to engine driven pump203
Crankcase ventilation701Lubricating oil from priming pump206
*)
Two outlets in each end are available
