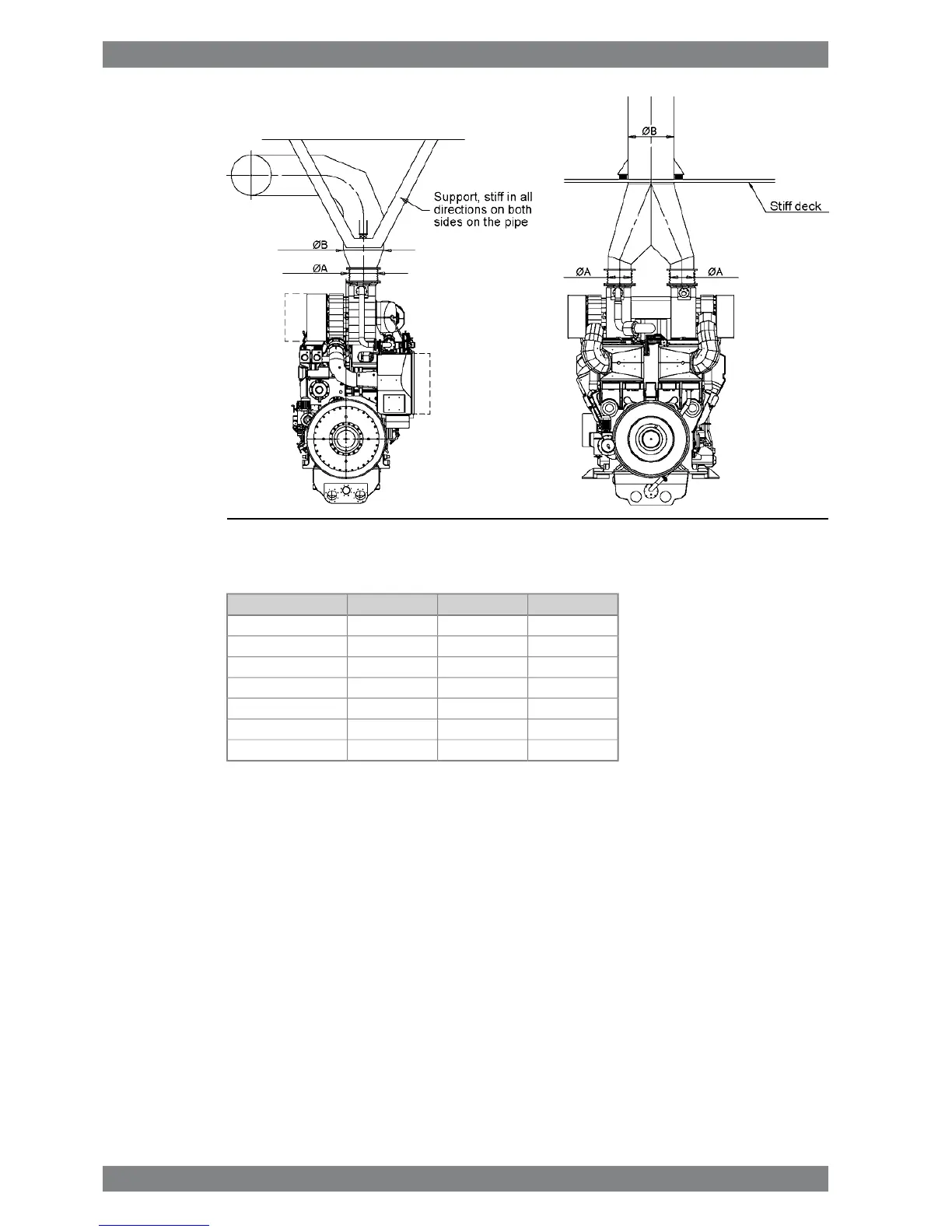

Fig 11-4 Exhaust pipe, diameters and support (DAAE048775B, DAAE075828A)
ØB [mm]ØA [mm]TC typeEngine type
DN900DN600TPL 71C6L46F
DN1000DN800TPL 76C7L46F
DN1000DN800TPL 76C8L46F
DN1100DN800TPL 76C9L46F
DN13002 x DN600TPL 71C12V46F
DN14002 x DN800TPL 76C14V46F
DN15002 x DN800TPL 76C16V46F
11-4 Wärtsilä 46F Product Guide - a19 - 1 December 2017
Wärtsilä 46F Product Guide11. Exhaust Gas System
