Wartsila 46F Series User Manual

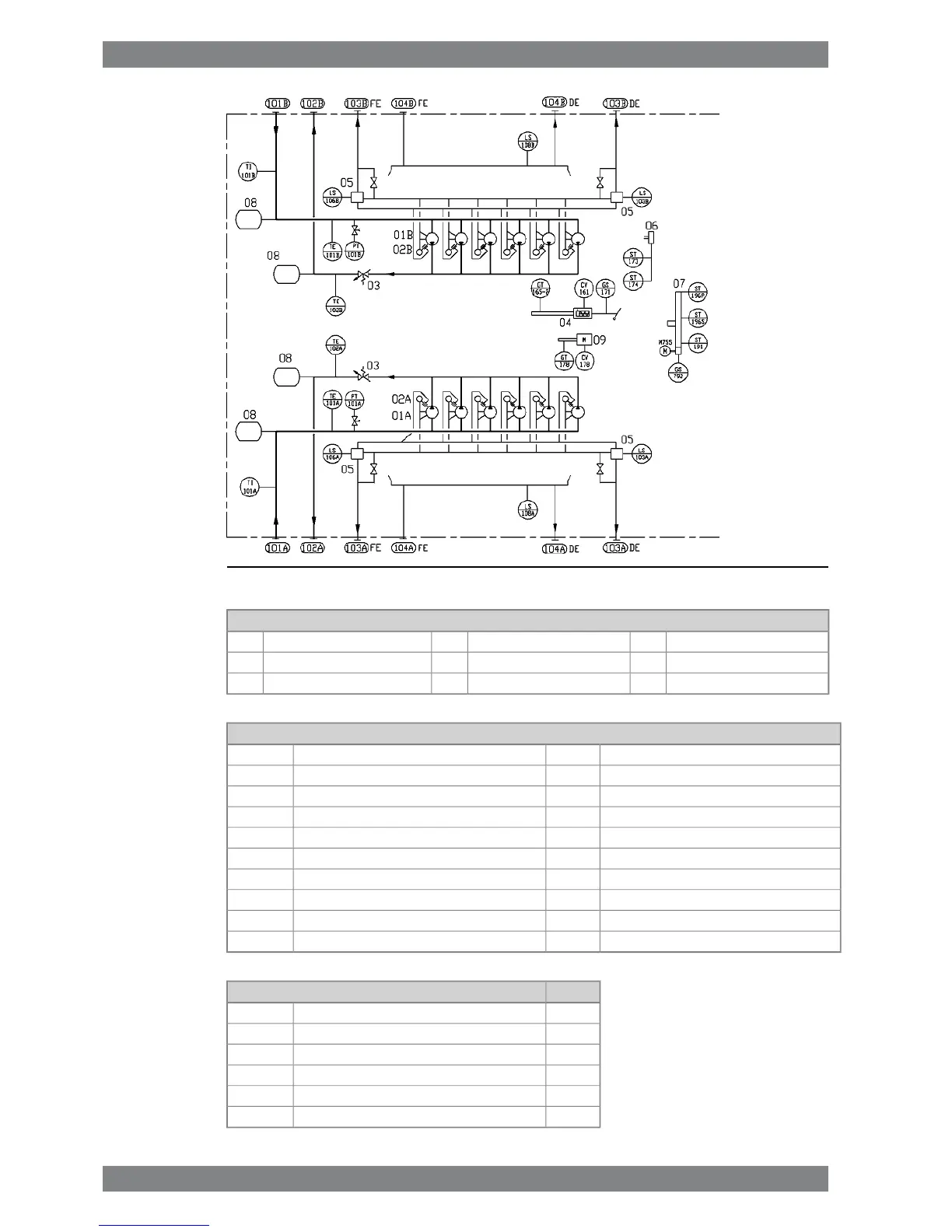

Fig 6-2 Internal fuel system, V-engine (DAAE075984C)
System components
Flywheel07Fuel rack actuator04Injection pump01
Pulse damper08Fuel oil leakage collector05Injection valve02
Timing rack actuator09Camshaft06Pressure control valve03
Sensors and indicators
Engine speed 1ST173Fuel oil pressure, engine inletPT101
Engine speed 2ST174Fuel oil temperature, engine inletTE101A,B
Timing rack controlCV178Fuel oil temperature, engine inletTI101A,B
Timing rack positionGT178Fuel oil temperature, engine outletTE102A,B
Engine speed for torsional vibrationST191Fuel oil leakage, clean primaryLS103A,B
Engine speed, primaryST196PFuel oil leakage, clean secondaryLS106A,B
Engine speed, secondaryST196SFuel oil leakage, dirty fuelLS108A,B
Turning gear engagedGS792Fuel rack controlCV161
Electric motor for turning gearM755Fuel rack positionGT165-2
Stop lever in stop positionGS171
SizePipe connections
DN32Fuel inlet101
DN32Fuel outlet102
DN25Clean fuel leakage outlet, in FE103FE
DN25Clean fuel leakage outlet, in DE103DE
DN25Dirty fuel leakage outlet, in FE104FE
DN25Dirty fuel leakage outlet, in DE104DE
6-6 Wärtsilä 46F Product Guide - a19 - 1 December 2017
Wärtsilä 46F Product Guide6. Fuel Oil System
