● Feed pump (1P02)
● Pre-heater (1E01)
● Sludge tank (1T05)
● Separator (1S01/1S02)
● Sludge pump
● Control cabinets including motor starters and monitoring

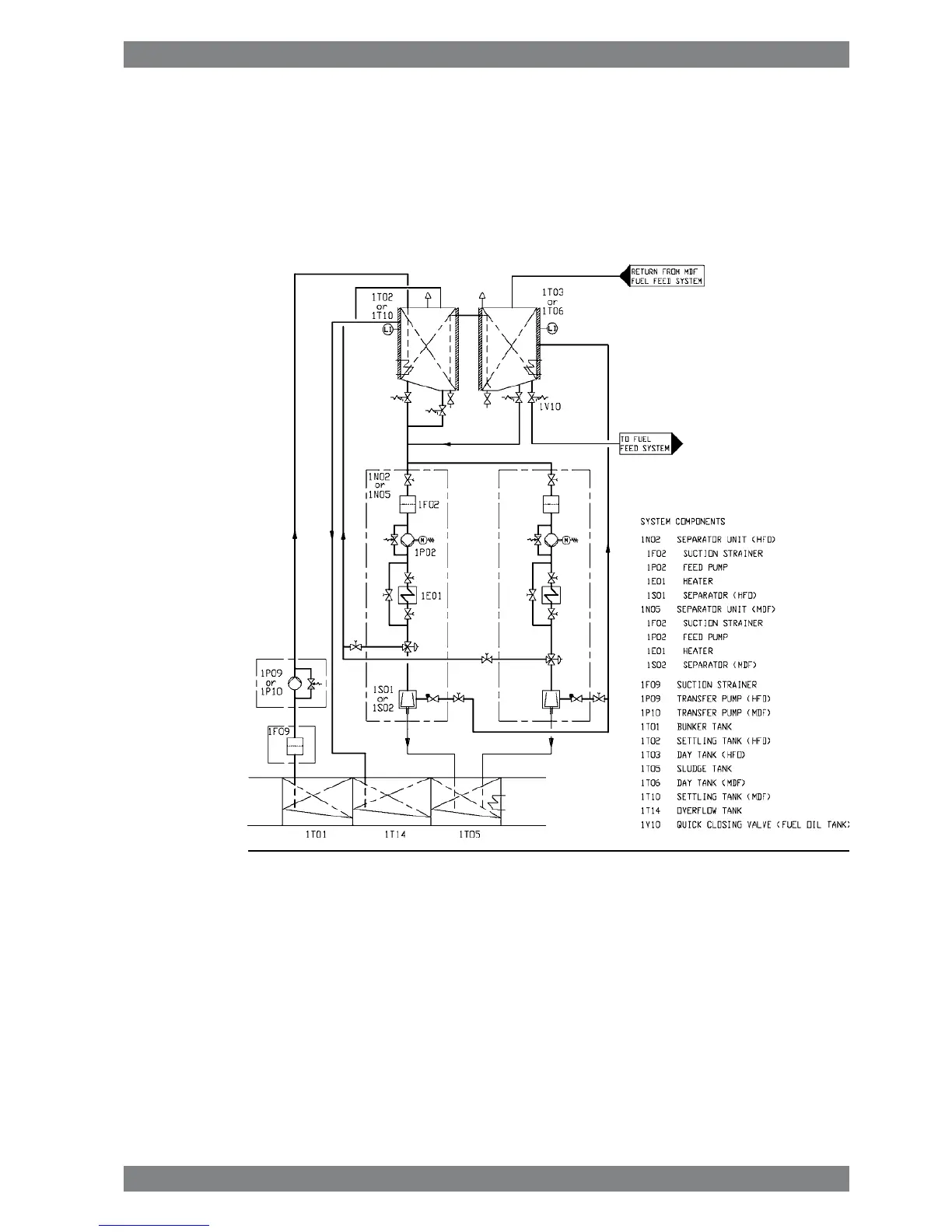

Fig 6-4 Fuel transfer and separating system (V76F6626F)
6.3.3.3 Separator feed pumps (1P02)
Feed pumps should be dimensioned for the actual fuel quality and recommended throughput
of the separator. The pump should be protected by a suction strainer (mesh size about 0.5
mm)
An approved system for control of the fuel feed rate to the separator is required.
MDFHFODesign data:
0.5 MPa (5 bar)0.5 MPa (5 bar)Design pressure
50°C100°CDesign temperature
100 cSt1000 cStViscosity for dimensioning electric motor
Wärtsilä 46F Product Guide - a19 - 1 December 2017 6-11
6. Fuel Oil SystemWärtsilä 46F Product Guide
