Dip Switch Setup
FILTER TIMER SETTING
A combination of dip switches 2
& 3 is used to enter this setup.
• 3month
• 6month
• 12month
• No filter timer
UV SETTING
• CS = CDS Sensor
(Used in Europe)
• US = UV Sensor
COLD WATER
TEMPERATURE
SETTING
Cold water temp range:
• 5⁰c
• 10⁰c
• 15⁰c

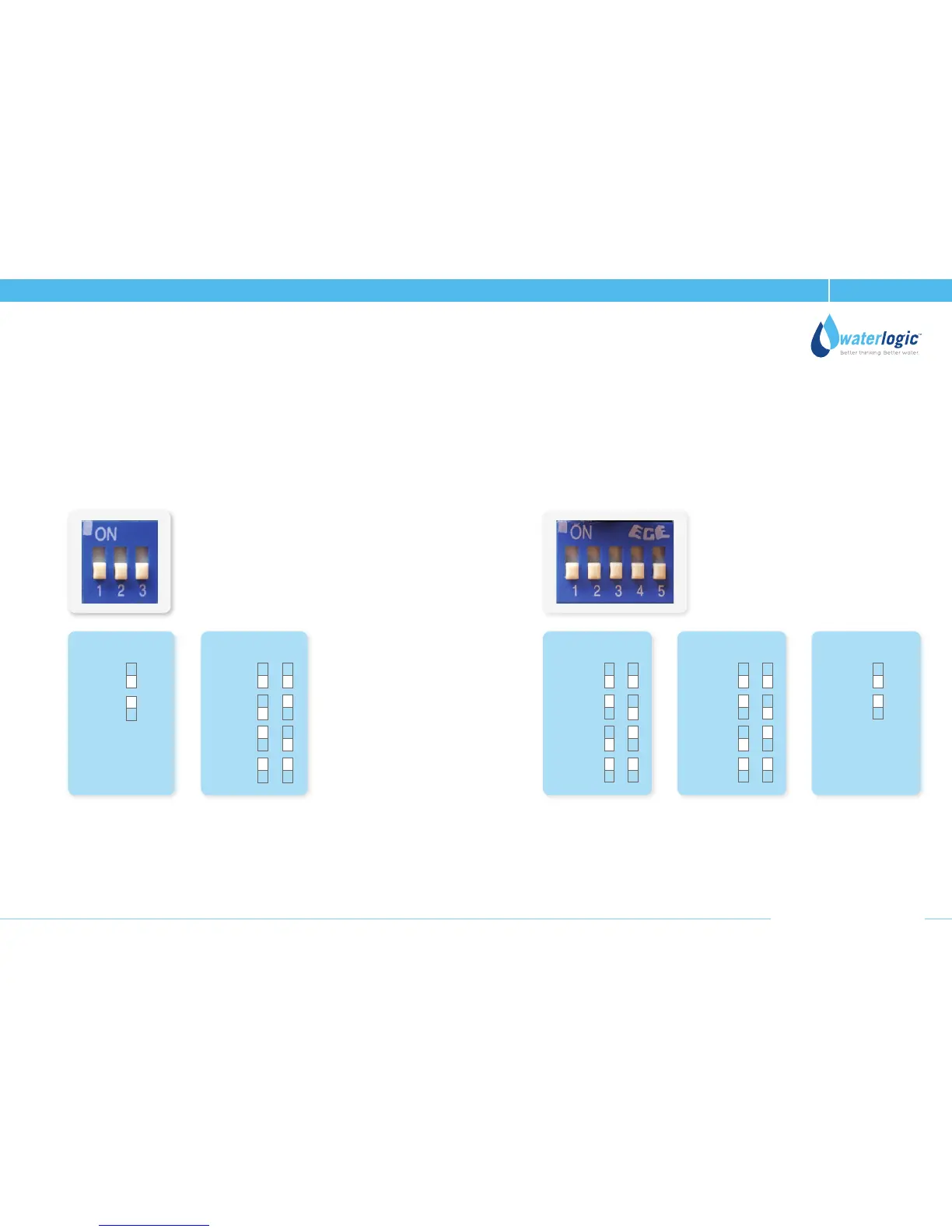

When reading this document please note the white coloring on the diagrams
indicate the required position of the switch to determine the setting.
UV 1
CS
US
FILTER 2 3
3M
6M
12M
NO
CTEMP 1 2
5˚c
10˚c
10˚c
15˚c
HOT WATER
TEMPERATURE
SETTING
Hot water temp range:
• 80°C
• 87°C
• 95°C
HTEMP 3 4
80 ˚c
87 ˚c
87 ˚c
95 ˚c
SLEEP MODE
Hot water temp range:
• ON
• OFF
HSLP 5
ON
OFF
DIP SWITCH 1 SETUP
DP1
DIP SWITCH 2 SETUP
DP2
