Pre Delivery
Inspection Procedures (PDI)
CAUTION:
Only competent trained technicians should work on Waterlogic products.
Waterlogic units may weigh over 25KG. We recommend caution when lifting.
Packing materials could present a trip hazard. Keep them off the floor.
Take care not to allow the power lead to get wet. If the lead gets wet it must not
be used.
The Cube Technical Manual - Version 1, May 2014

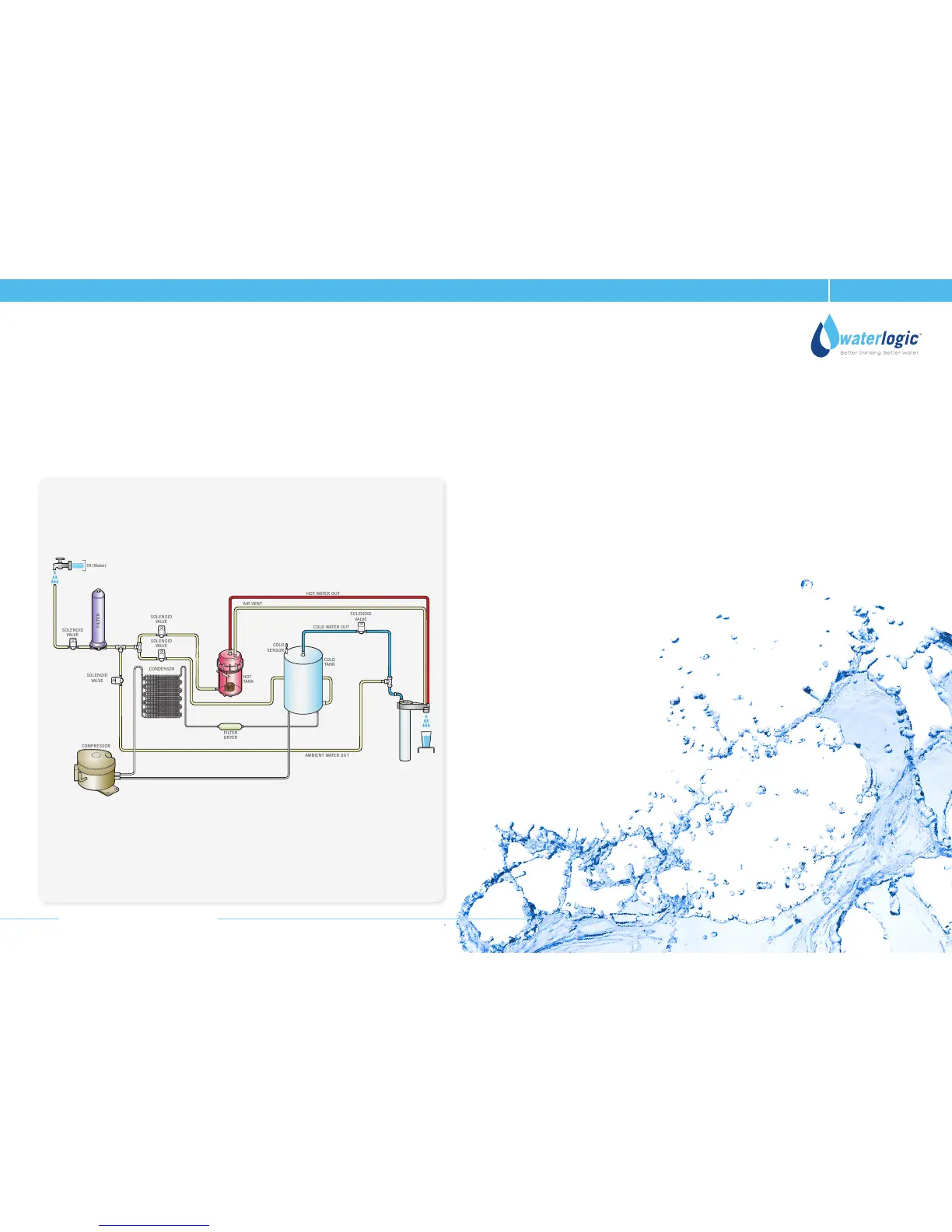

WL Cube Flow Diagram
Cold, Hot & Ambient
FILTER
IN (Water)
SOLENOID
VALV E
SOLENOID
VALV E
HOT WATER OUT
COLD WATER OUT
AIR VENT
FILTER
DRYER
COLD
SENSOR
COLD
TANK
HOT
TANK
COMPRESSOR
CONDENSER
SOLENOID
VALV E
SOLENOID
VALV E
AMBIENT WATER OUT
SOLENOID
VALV E
