WaterLogic WL Cube Firewall - Main Parts List; WL Cube Mains Parts Illustration

The Cube Technical Manual - Version 1, May 2014
36 37
N° Part Description
1 WL Cube Side panel left -Silver
2 Mark IV Al (Mirror/no gauze/Spout 18mm) for CUBE
3 WL Cube FW fixing bracket
4 WL Cube Front frame panel-Black
5 WL Cube Front cover -Silver
6 WL Cube Spout assembly bracket-Silver
7 WL Cube Drip tray body -Black
8 WL Cube Drip tray grill -Silver
9 Rubber feet for Cube
10 WL Cube Base plate-Black
11 1/4" Equal Elbow Connector(ST)
12 Leak Detection Sensor Bracket
13 Leak containment tray Clip (sensor 0.5mm)
14 1/4" stem Elbow connector
15 Solenoid Valve 24 DC (Single Spring Load)
16 Cube cold tank - 1,4 Litre
17 Compressor
18 Domestic Filter Dryer (Chinese)
19 WL Cube Side panel right -Silver
20 BulkHead Fitting 1/4"x 1/4"(ST)
21 Socket for Plug Connection (Domestic PST-101SL)
22 AC Power Fuse Holder with Fuse
23 Switch - Power (Red)
24 Switch - Heater/Compressor (Green)
25 Cooling Wire Condenser for Cube
26 Micro Door Lock S/W only
27 WL Cube Micro switch cover -Gray
28 WL Cube Back panel-Black
29 Fan Motor (DC 24V)
30 Drain valve body only for 5/16"
Main Parts List

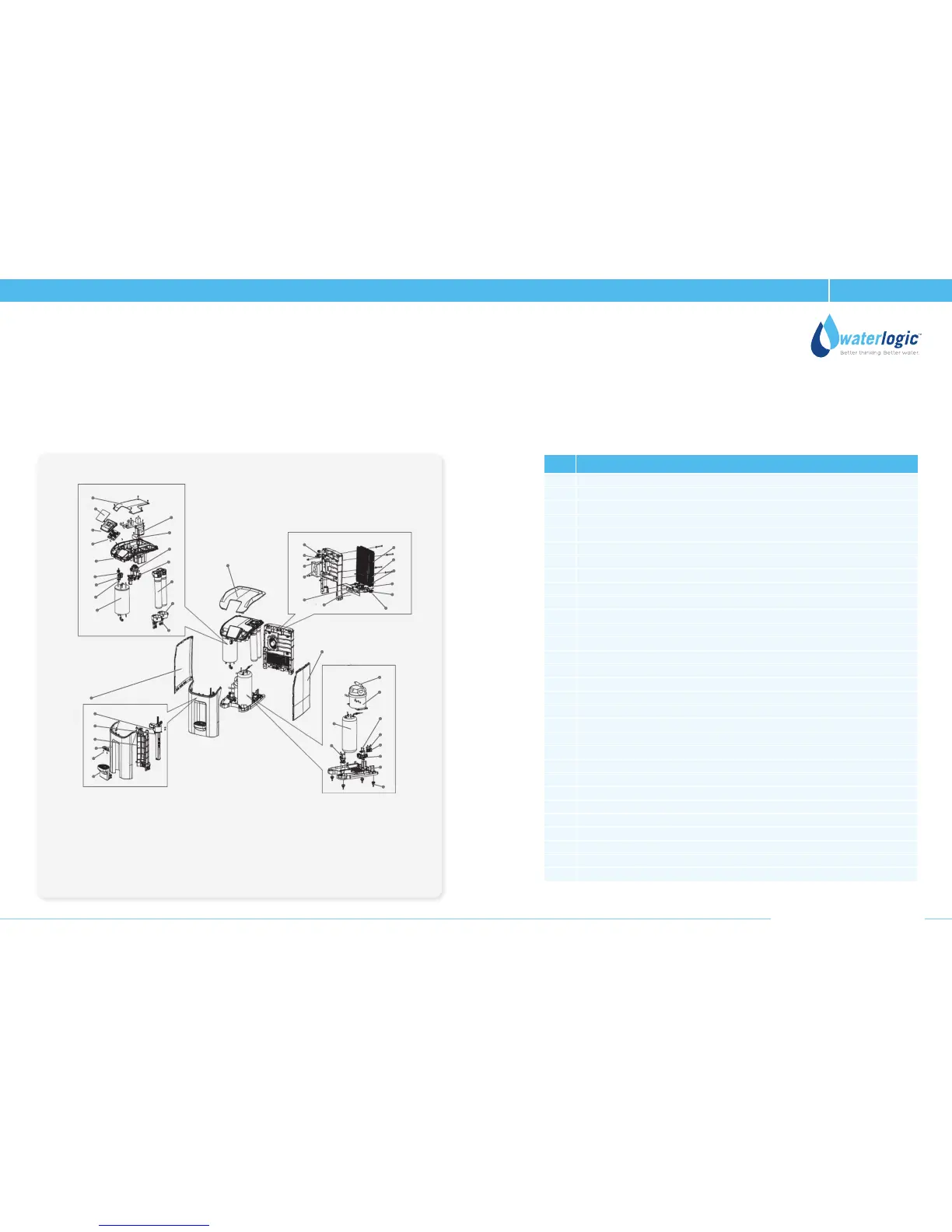

WL Cube Mains Parts Illustration
41
42
44
45
46
43
47
48
49
50
40
39
38
37
36
35
34
33
1
20
21
22
23
24
25
26
27
28
29
30
31
32
19
18
17
16
15
14
13
12
11
10
9
2
3
4
5
6
7
8
