The Cube Technical Manual - Version 1, May 2014
32 33

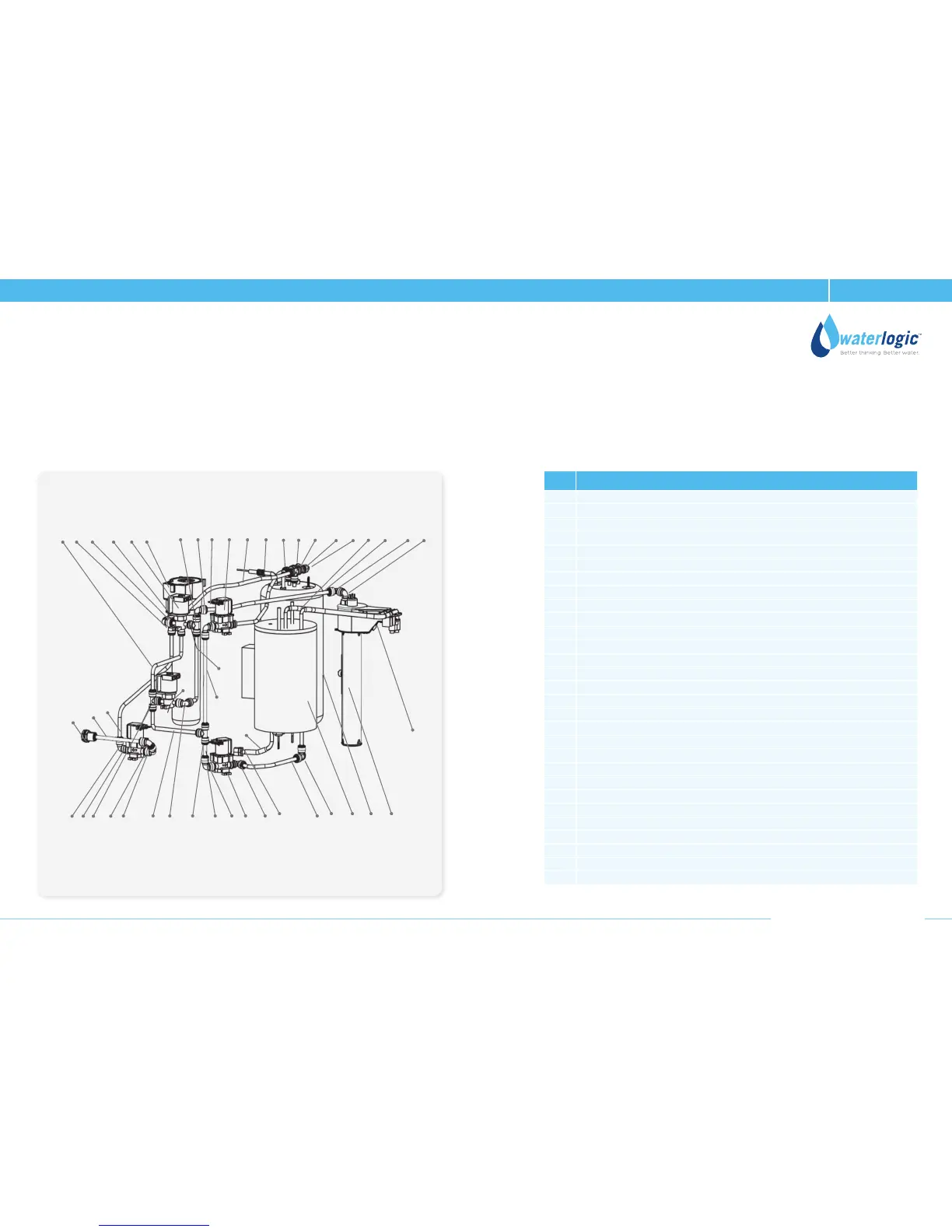

Wetted Parts List
Hot, Cold and Ambient
N° Part Description
1 JG Bulkhead Connector Union 1/4" * 1/4"
2 JG LLD PE Tube - Blue O.D.1/4"
3 JG LLD PE Tube - Blue O.D.1/4"
4 JG Stem Elbow Connector 1/4" * 1/4"
5 Solenoid Valve 24 DC (Single Spring Load)
6 JG Equal Tee Connector 1/4"
7 JG Equal Elbow Connector 1/4"
8 JG Stem Elbow Connector 1/4" * 1/4"
9 Hot & Cold Solenoid Valve 24V- 300mm CUBE
10 JG LLD PE Tube - Blue O.D.1/4"
11 JG Equal Elbow Connector 1/4"
12 JG LLD PE Tube - Blue O.D.1/4"
13 JG Equal Tee Connector 1/4"
14 JG Equal Elbow Connector 1/4"
15 JG LLD PE Tube - Blue O.D.1/4"
16 Solenoid Valve 24 DC (Single Spring Load)
17 JG Stem Elbow Connector 1/4" * 1/4"
18 Drain valve cap only (for 5/16" & 1/4" size)
19 Drain valve body only for 5/16"
20 JG LLDPE Tube - Blue 8mm
21 JG LLD PE Tube - Blue O.D.1/4"
22 JG Equal Elbow Connector 1/4"
23 1,3 litre 500W Hot Tank for Cube
24 Cube cold tank - 1,4 Litre
25 Spiral Quartz
26 Silicon Tube 5/16" for hot water
27 JG Equal Elbow Connector 1/4"
28 JG Stem Elbow Connector 1/4" * 1/4"
29 JG LLD PE Tube - Blue O.D.1/4"
48 47 46 45 44 43
42
41 40 39 3738 36 35 34 33 32 31 30 29 28 27
26
25242322211716151413
12
11108
7654
9
20
18/19
3
2
1
