WaterLogic WL Max - Maintenance and Servicing; SERVICING PROCEDURE

30 31
WL Max Technical Manual - Version 1 - May 2013

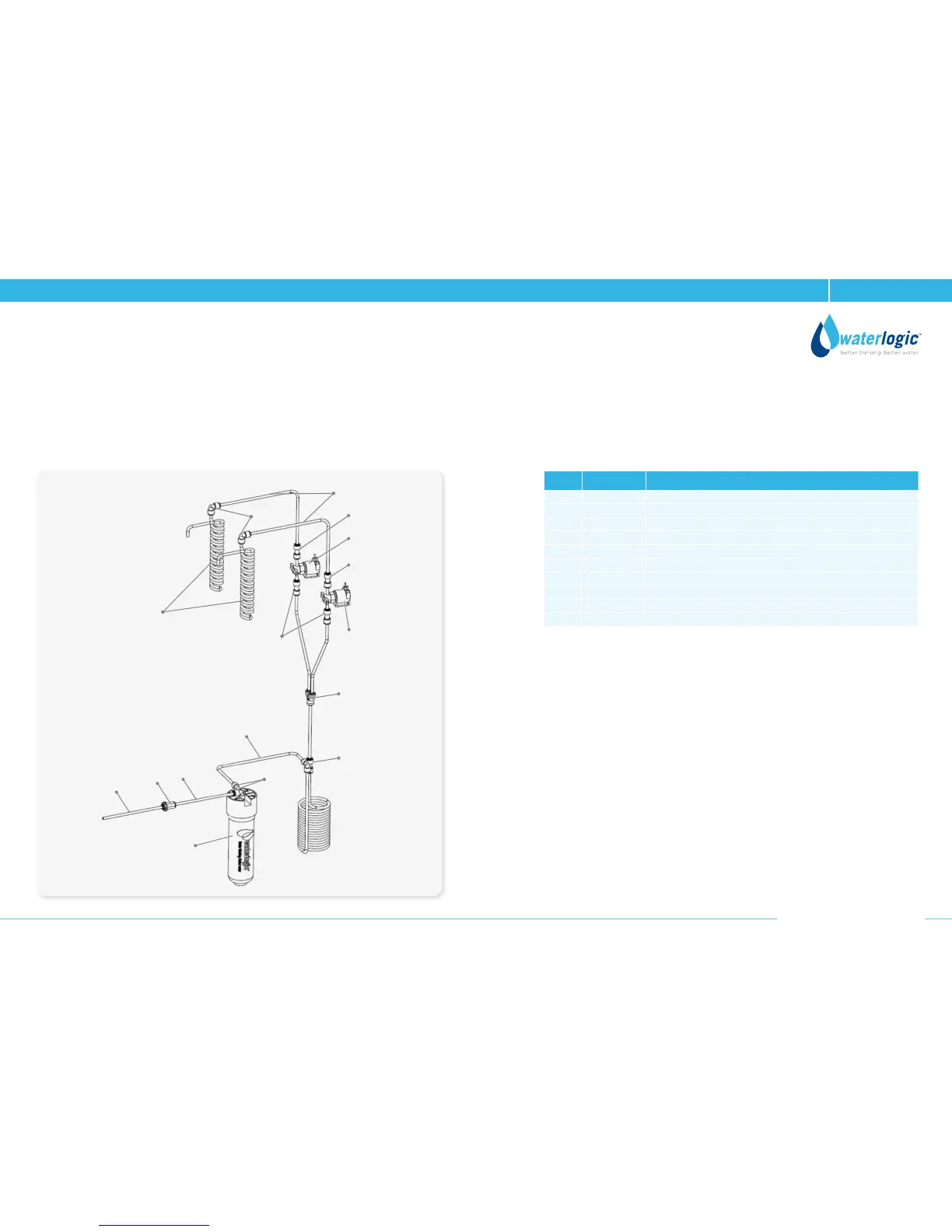

Wetted Parts Illustration
Double Faucet
1
5
7
8
7
8
7
10
7
9
1
3
1
2
5
4
N° Part No. Part Description
1 PU-4031 JG 1/4" PE Pipe
2 PU-4028 JG Bulkhead Connector Union 1/4" * 1/4"
3 PU-4031 JG 1/4" PE Pipe
4 FT-0034 10" Inline CBC Filter 1 Micron
5 PU-4008 JG Equal Elbow Connector 1/4"
6 Stainless Steel Coil 5/6"
7 PU-4010 JG Equal Straight Connector 1/4"
8 PU-4017 Solenoid DC 24V 500mm
9 FU-0007 Quartz Spiral
10 Two Way Divider
