WL Max Technical Manual - Version 1 - May 2013
N° Part Description
1 Front Panel
2 Drip Tray Grill
3 Drain Valve
4 Band 1 Switches
Band 2 Switches
5 3 Position Switch
6 Upper Panel
7 Firewall Housing Top Cover
8 UV Rubber Mount
9 UV Sensor Rubber Mount
10 UV Sensor
11 15W UV Lamp
12 JG 1/4" Elbow
13 Quartz Spiral
14 JG 1/4" Straight Connector
15 Firewall Housing
16 Solenoid Valve 24V DC
17 Back Cover
18 JG 1/4" Straight Connector
19 JG 1/4" Divider
20 Ballast 15W 220 V
21 Firewall display PCB
22 Relay PCB
23 Transformer
24 Power Switch
25 Fuse Holder
Main Parts List

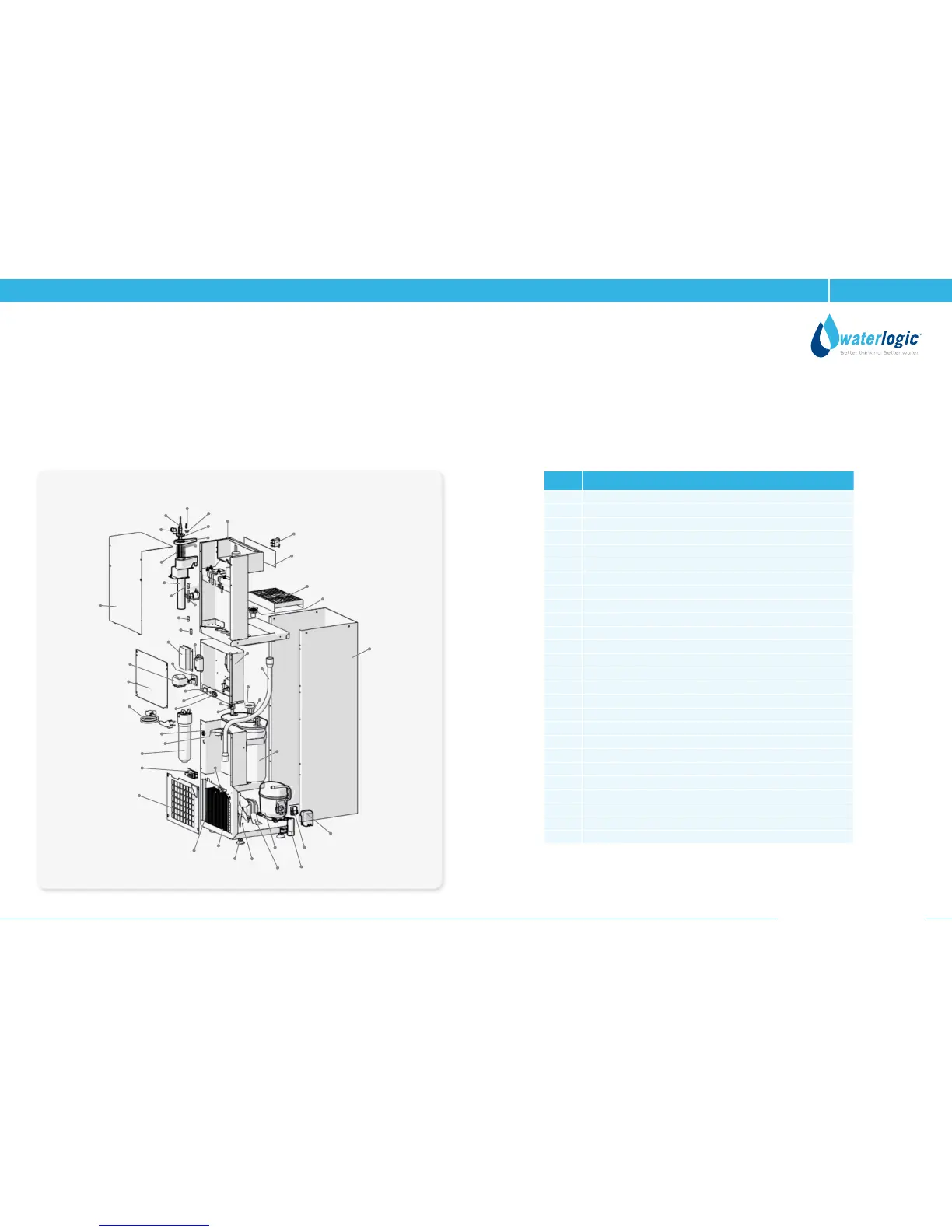

WL Max Main Parts Illustration
27
29
6
10
7
8
9
11
12
13
14
15
17
18
19
2021
16
22
23
24
25
26
33
34
30
39
41
31
32
40
42
43
44
45
46
47
48
49
50
38
37
36
28
35
3
2
4
5
1
Parts list continued on next page
