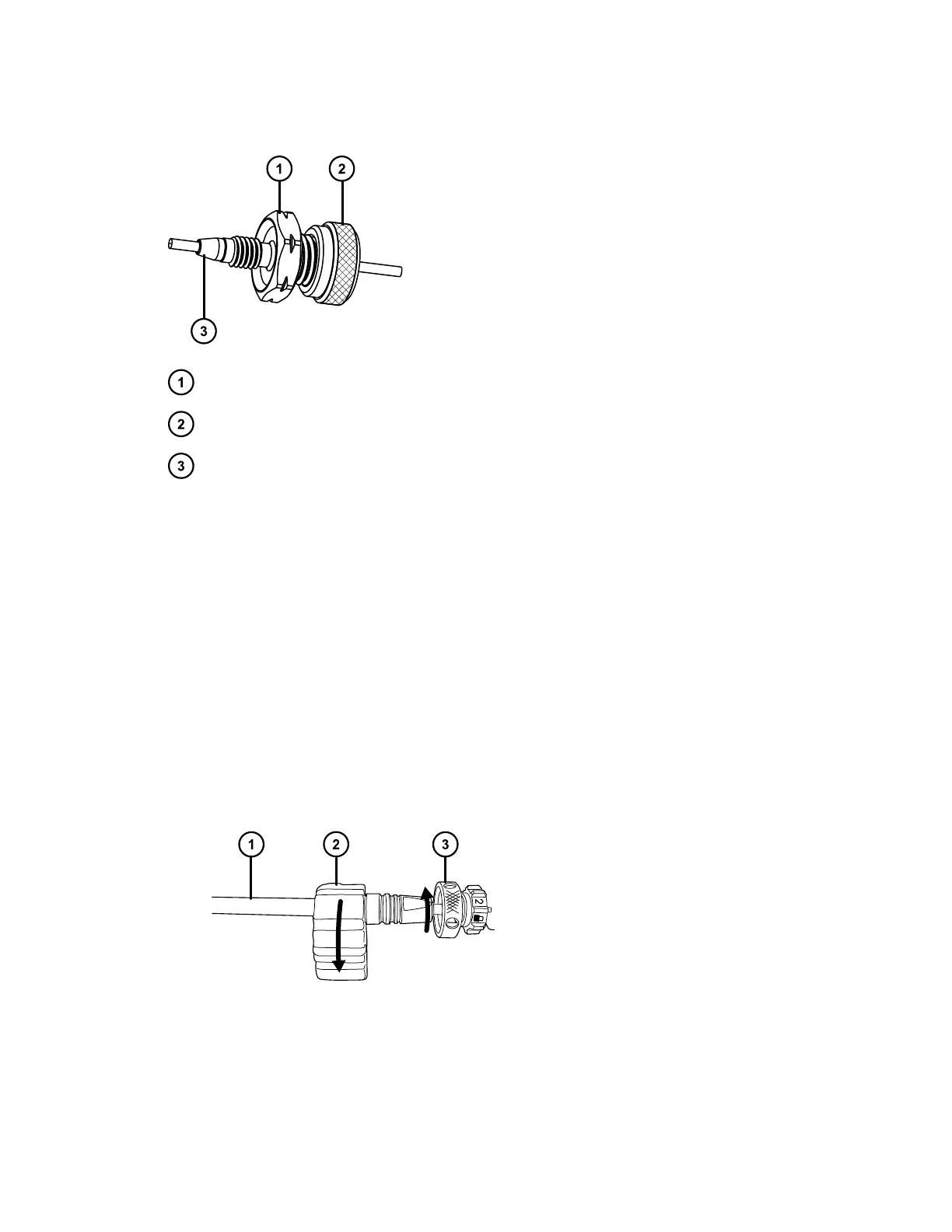

Figure 2–30: Legacy fitting first use or reinstalled
Hex compression fitting
Locking cap nut
Back-locking or standard PEEK ferrule
To tighten the fitting:
1. Loosen the cap nut from the compression fitting.
2. Slide the compression fitting together with the ferrule into the inlet of the column (or the in-
line filter).
Important: To prevent band spreading, ensure that the tubing bottoms in the connection
port before you tighten the compression fitting.
3. Finger-tighten the compression fitting into the inlet of the column (or the in-line filter).
4. Place the column gripping tool onto the column.
5. While holding the column with the column gripping tool, tighten the column onto the
compression fitting.
Figure 2–31: Tightening the column onto the compression fitting
December 4, 2019, 715005052 Version 02 (previously released as Rev.B)
Page 46
