2.2.2 Installing the MS-extension bracket and column-heater housing
The MS-bracket kit contains all of the components that you need to configure the column heater
in its extended position. Follow these instructions to install the bracket and column-heater
mounting hardware.
Required tools and materials
• T20 TORX driver
• Column heater MS-bracket kit
• Leak sensor (optional)
• Drain tubing

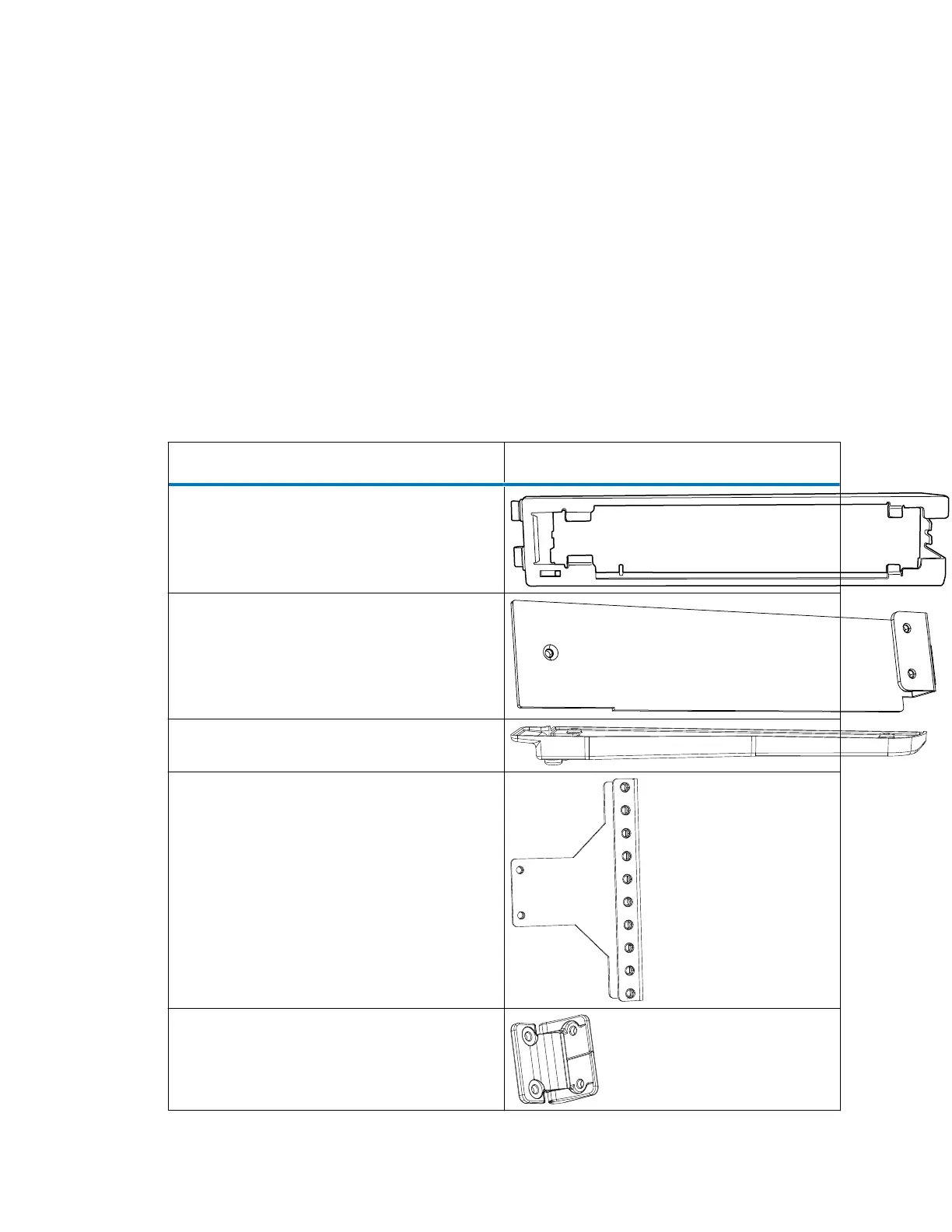

Table 2–1: MS-bracket kit major components
Component Appearance
Column-heater housing (Mount bracket
extender)
MS-extension bracket (Extender arm)
MS-bracket drip tray
Height-adjustment bracket (Vertical shift
adapter)
Hinge assembly (Hinge, constant torque)
December 4, 2019, 715005052 Version 02 (previously released as Rev.B)
