Note: For installation instructions, see Assembling new fittings.
11. Route the column-stabilizer-inlet tubing behind the hinge of the fluidics compartment door
in the sample manager and into the slot that leads to the column trough.

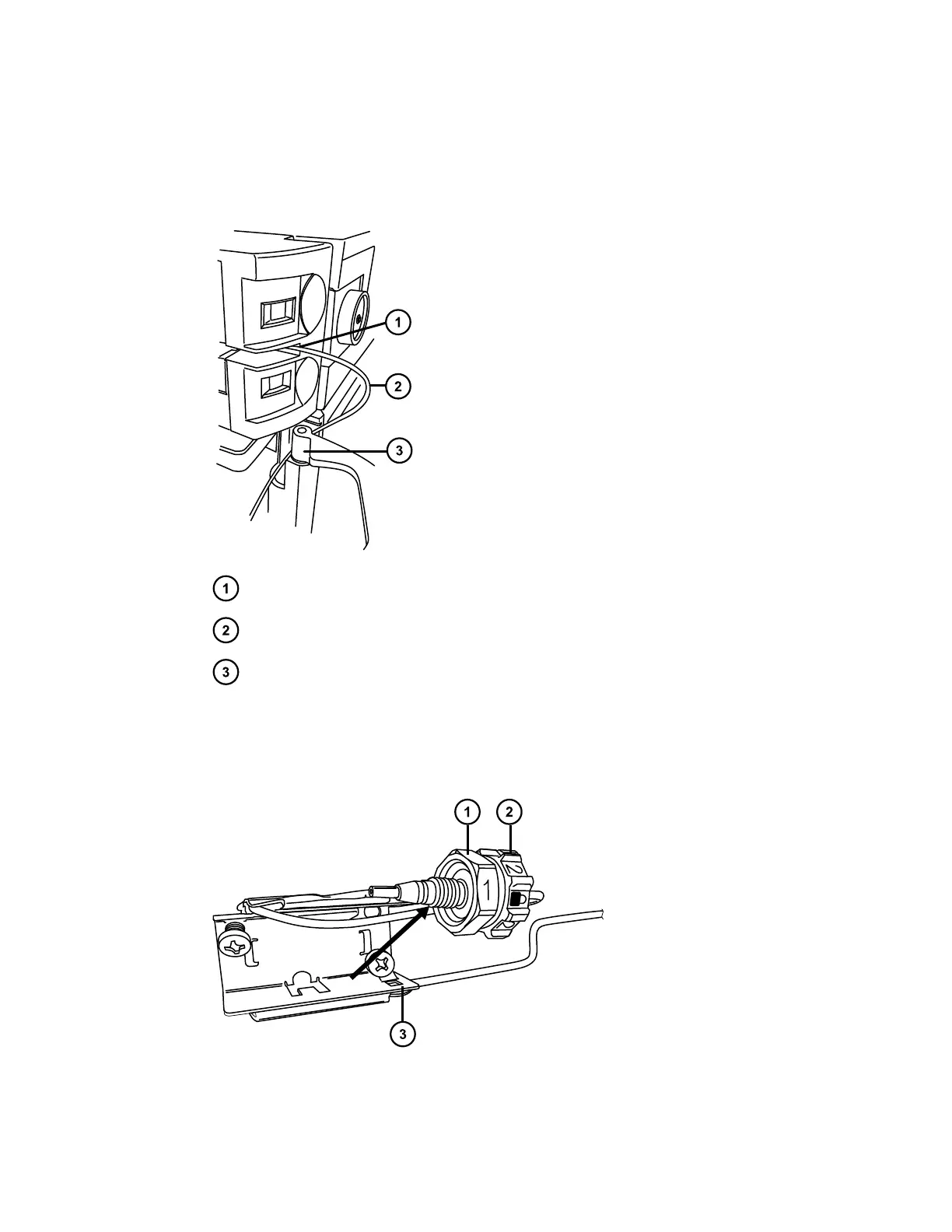

Figure 3–13: Routing the column-stabilizer-inlet tubing
Column trough
Column-stabilizer-inlet tubing
Fluidics compartment door hinge
12. Close the fluidics compartment door.
13. Pull the column fitting away from the column stabilizer to access the right side screw.
Figure 3–14: Pulling the column fitting away from the column stabilizer
December 4, 2019, 715005052 Version 02 (previously released as Rev.B)
Page 84
