Resolving leak sensor errors
September 26, 2013, 715004208 Rev. A 37

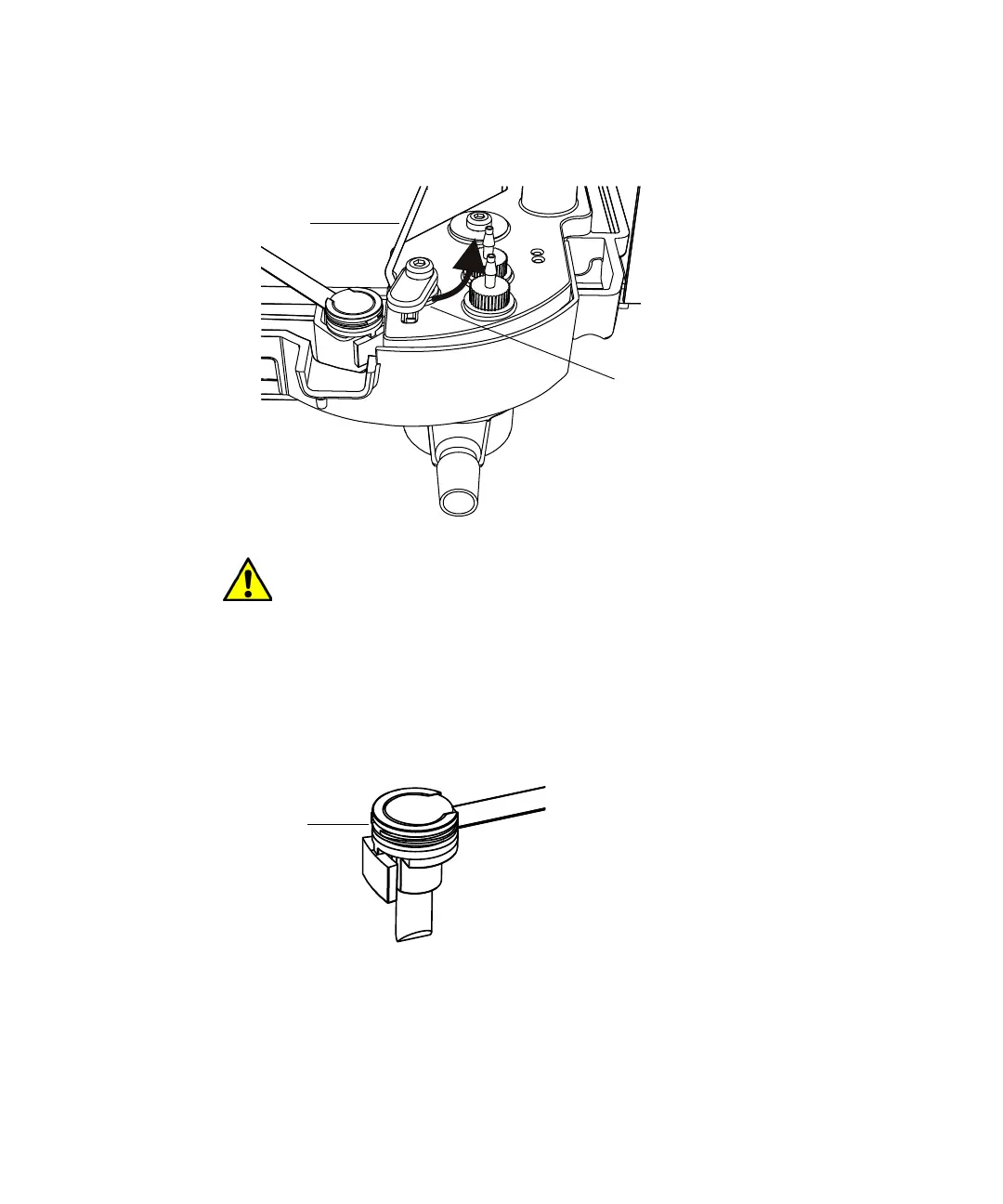

5. Turn the vent tubing retainer counterclockwise, and then lift the vent
tubing from the drip tray by pulling upward on it and moving it to the
right-hand side of the leak sensor.
6. Remove the leak sensor from its reservoir, grasping it by its serrations,
and pull upward on it.
Tip: If you cannot easily manipulate the leak sensor after removing it
from its reservoir, detach the connector from the receptacle on the front
of the instrument.
Caution: To avoid damaging the leak sensor, do not grasp it by the
ribbon cable.
Vent tubing
Vent tubing retainer
To Next Page
