2 Preparing for Operation
56 September 26, 2013, 715004208 Rev. A
Installing the optional ACQUITY UPC
2
Triple-Detection
Flow-splitter kit
Required materials
• Gloves: clean, powder-free, chemical-resistant
• ACQUITY UPC
2
Triple-Detection Flow-splitter kit
To install the optional ACQUITY UPC
2
Triple-Detection Flow-splitter kit:

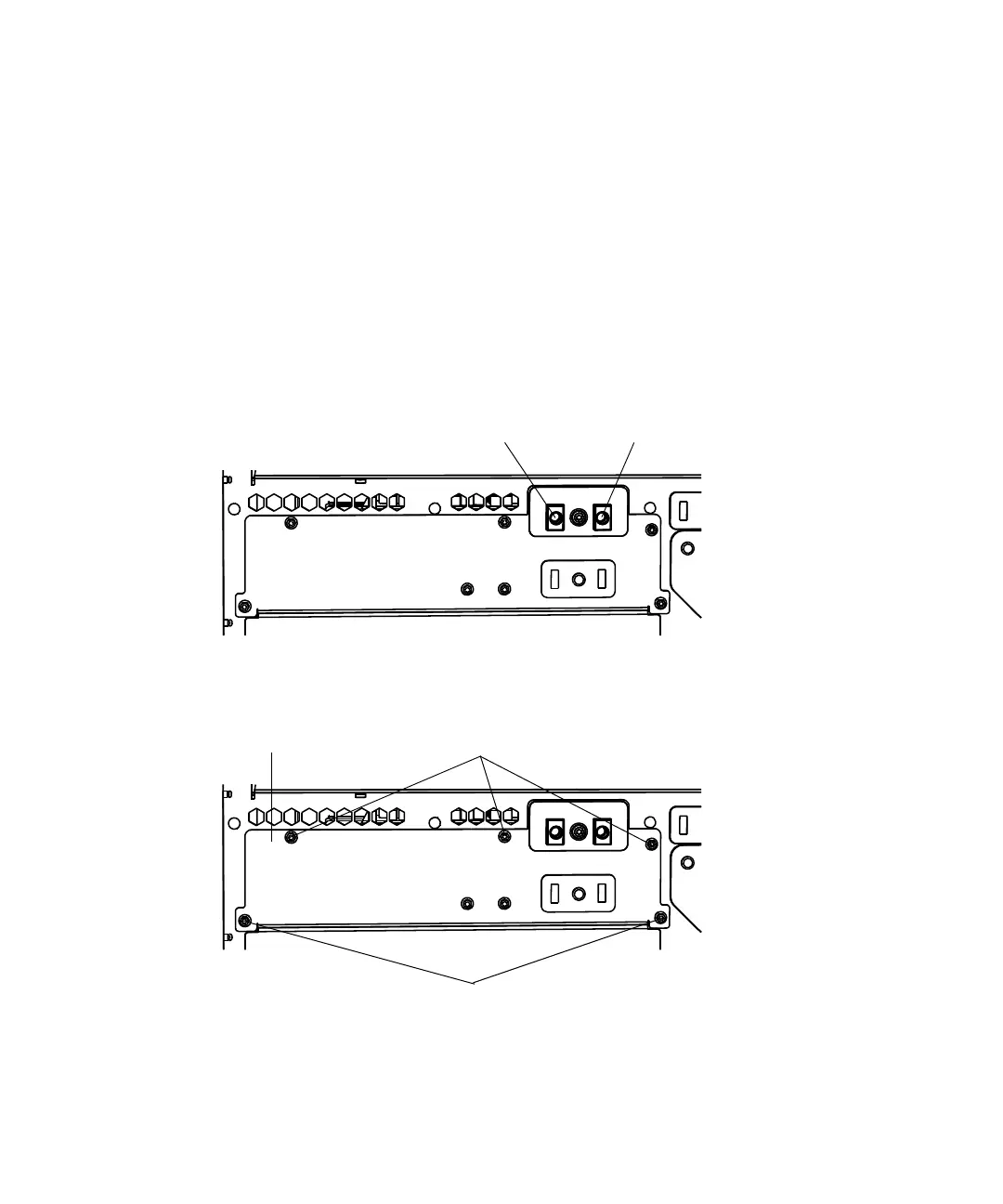

1. Disconnect the finger-tight fittings from the outlet and inlet of the
degasser.
2. Using the T10 TORX driver, remove the five screws that secure the
blank face plate to the front face of the ISM chassis.
Degasser
outlet
Degasser
inlet
Screws securing
blank face plate
Screws securing
blank face plate
Blank face plate
