B. Installation of the manifold

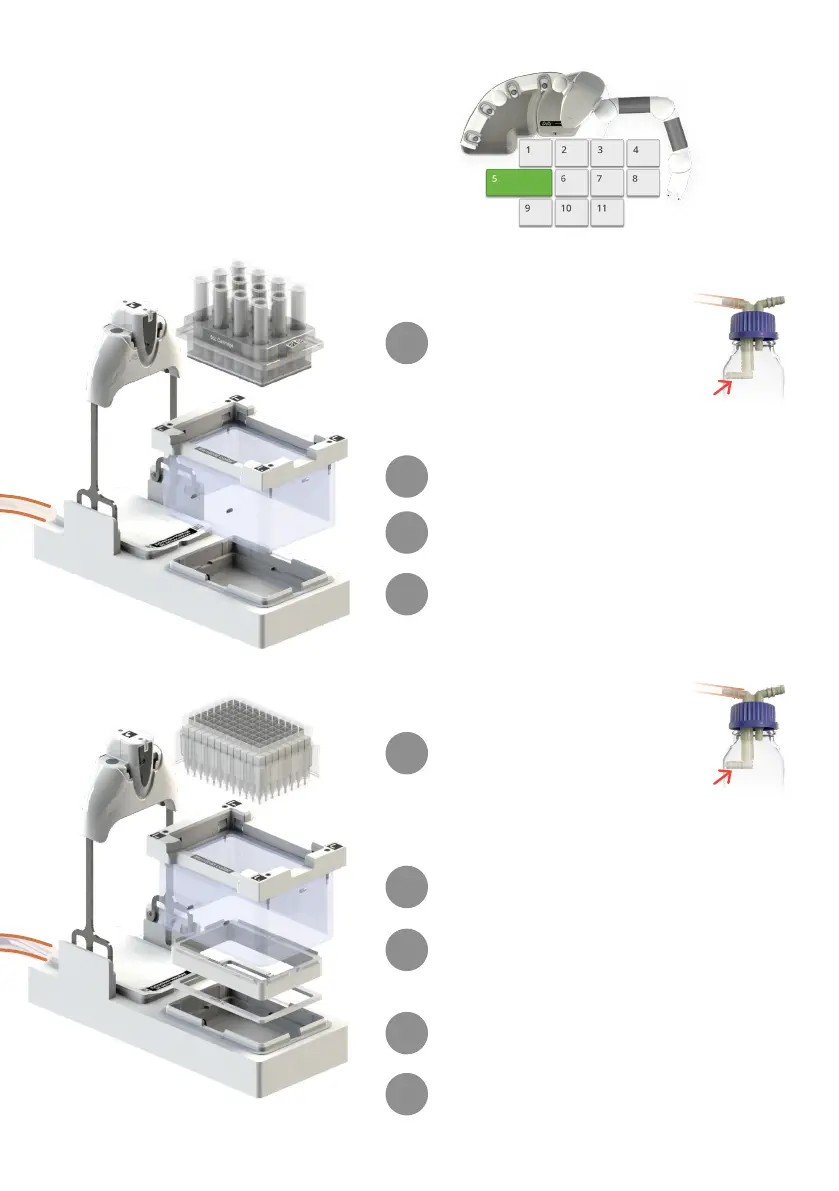

Setup for cartridge
When used with the Andrew+ Pipetting Robot,
the Extraction+ vacuum manifold is always
placed at the same deck location:
Domino location 5
Setup for lter plate
Plug the silicone hose between
the waste container and the
Extraction+ manifold
Plug the silicone hose between
the waste container and the
Extraction+ manifold
Place the manifold spacers into the waste
collector (see additional instructions on
the next page)
Place the manifold collar lifter
Place the manifold collar lifter
Place the manifold collar
Place the manifold collar
Place the cartridge adapter as OneLab
prompts you to
Place the lter plate as OneLab prompts
you to
1
1
3
2
2
4
4
3
5
This hose must be connected to
the elbow port of the thread.
This hose must be connected to
the elbow port of the thread.
To Next Page
